ST140-TEMMS (1982)
Toyota Corona
Production
Jan 1982
-
Oct 1983
Engine
1SU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )AT140,CT14#,KT147,ST140,TT147

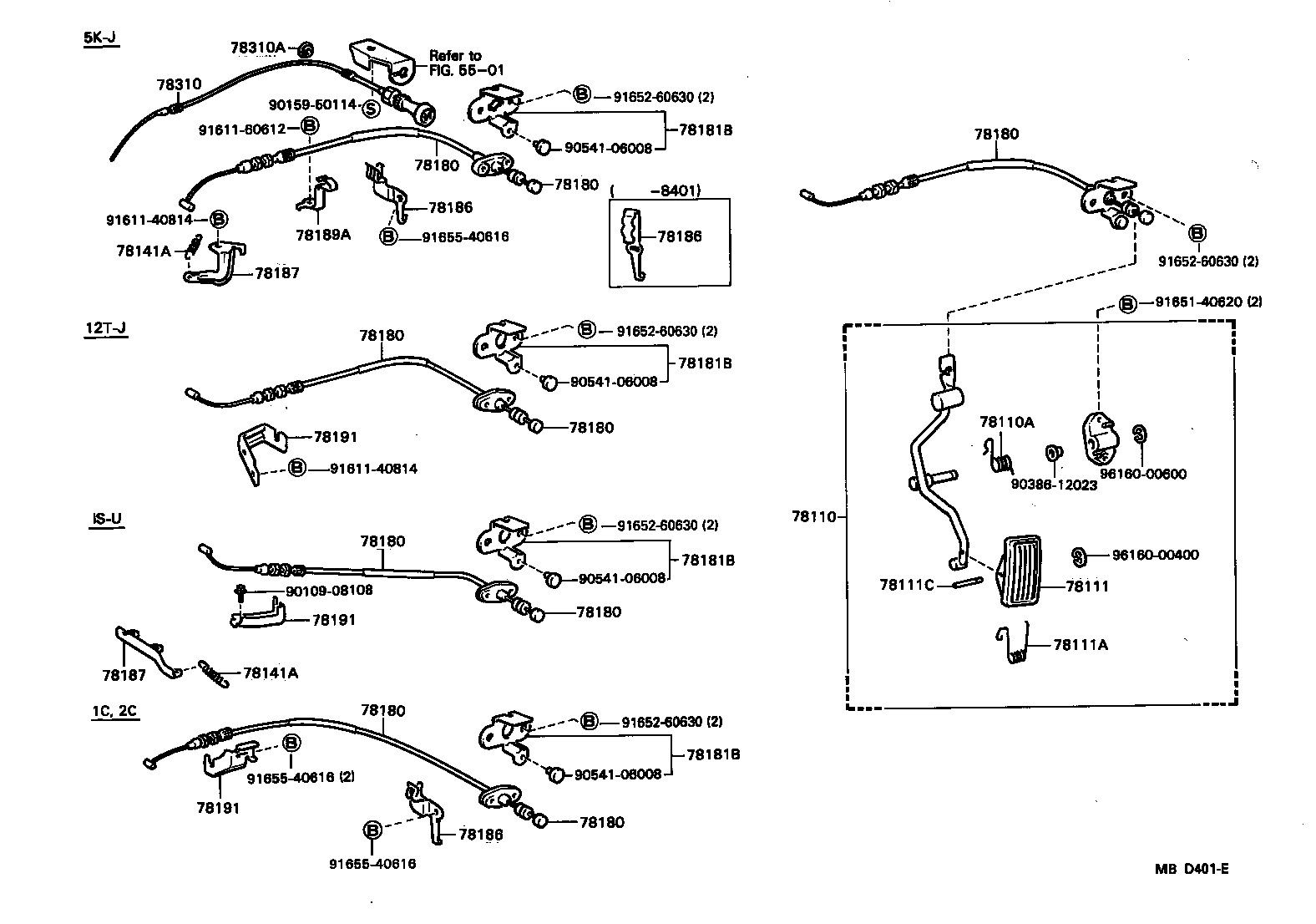

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14310 |
ST140..MTM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
ST140..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING) | ||||
| 90507-08003 |
ST140..MTM |
1 | ||
| 78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING) | ||||
| 90507-08003 |
ST140..MTM |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14381 |
ST140 |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,KT147,RT141,ST140,TT147,YT140 |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,KT147,RT141,ST140,TT147,YT140 |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,KT147,RT141,ST140,TT147,YT140 |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,KT147,RT141,ST140,TT147,YT140 |
1 | ||
| 78187 - BRACKET, ACCELERATOR PULL BACK SPRING | ||||
| 78187-14020 |
ST140 |
1 | ||
| 78187 - BRACKET, ACCELERATOR PULL BACK SPRING | ||||
| 78187-14020 |
ST140 |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-14040 |
ST140 |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-14040 |
ST140 |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-14040 |
ST140 |
1 | ||
| Common parts | ||||
| 90109-08108 | ||||
| 90159-50114 | ||||
| 90386-12023 | ||||
| 90541-06008 | ||||
| 91611-40814 | ||||
| 91611-60612 | ||||
| 91651-40620 | ||||
| 91652-60630 | ||||
| 91655-40616 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 5501 | ||||
