ST140-TEMMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

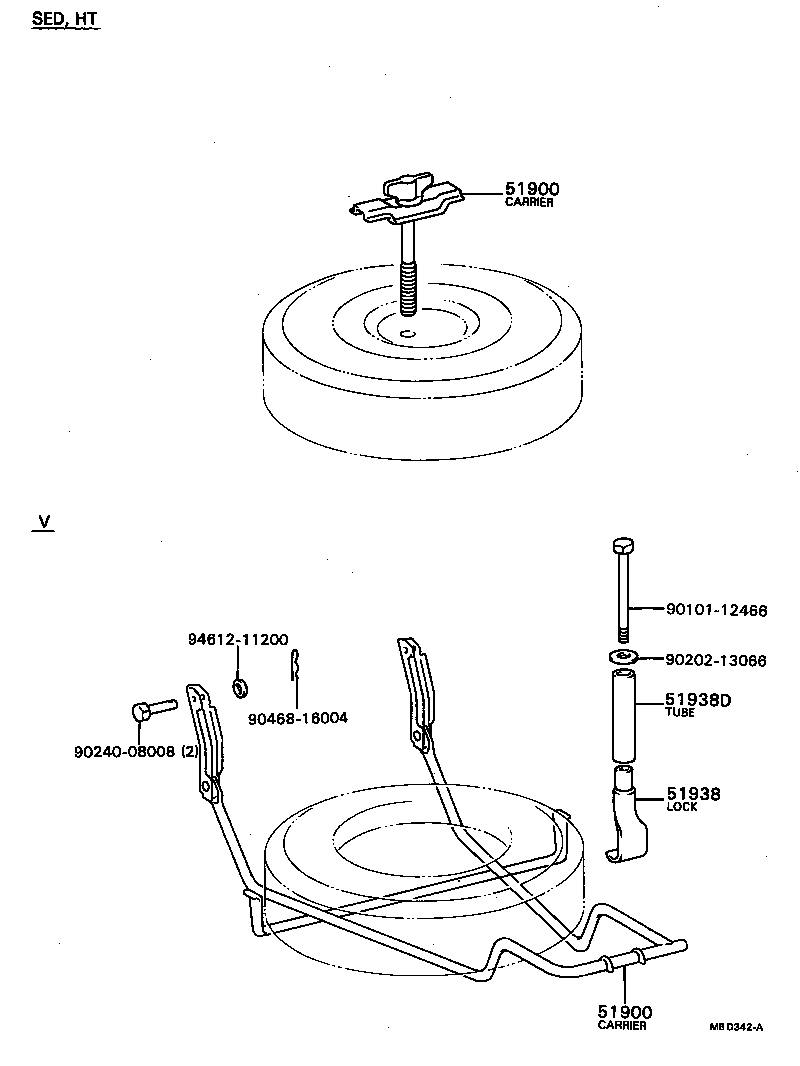

Click highlighted areas on diagram

diagram 51900 51900 51938 51938D 9010112466 9020213066 9024008008 9046816004 9461211200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-14030

CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

L=100

 1
51900-14040

AT140,RT141,ST140,TT142

L=77

 1
51900-14040

AT140,CT140,RT141,ST140,TT142

L=77

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-14030

CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

L=100

 1
51900-14040

AT140,RT141,ST140,TT142

L=77

 1
51900-14040

AT140,CT140,RT141,ST140,TT142

L=77

 1
Common parts
90101-12466
90202-13066
90240-08008
90468-16004
94612-11200
