ST140-TEMMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)AT14#,KT147,ST140,TT14#..MTM..DLX,EXS,GT,GX,GXA,STD,SX

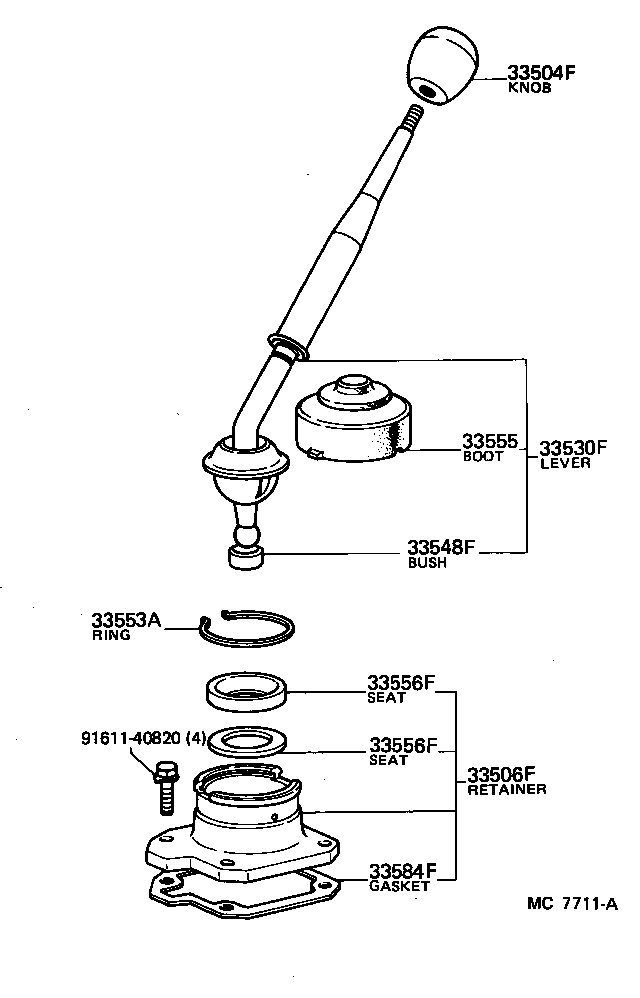

Click highlighted areas on diagram

diagram 33504F 33506F 33530F 33548F 33553A 33555 33556F 33556F 33584F 9161140820
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401004

CT140,RT141,ST140,TT142..5F..(EXS,GT,GXA,SX)

BLUE,BLUE,TRIM8#

 1
33504-2401016

CT140,RT141,ST140,TT142..5F..(EXS,GT,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-14021

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-14241

AT14#,KT147,ST140..MTM

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-14010

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET)
90521-49003

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
33555 - BOOT, SHIFT LEVER
33555-12090

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14020

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

T=3.0

 1
33556-14010

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

T=13.5

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-14020

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

T=3.0

 1
33556-14010

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

T=13.5

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-20010

AT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
Common parts
91611-40820
