ST140-TEKNS (1982)
Toyota Corona

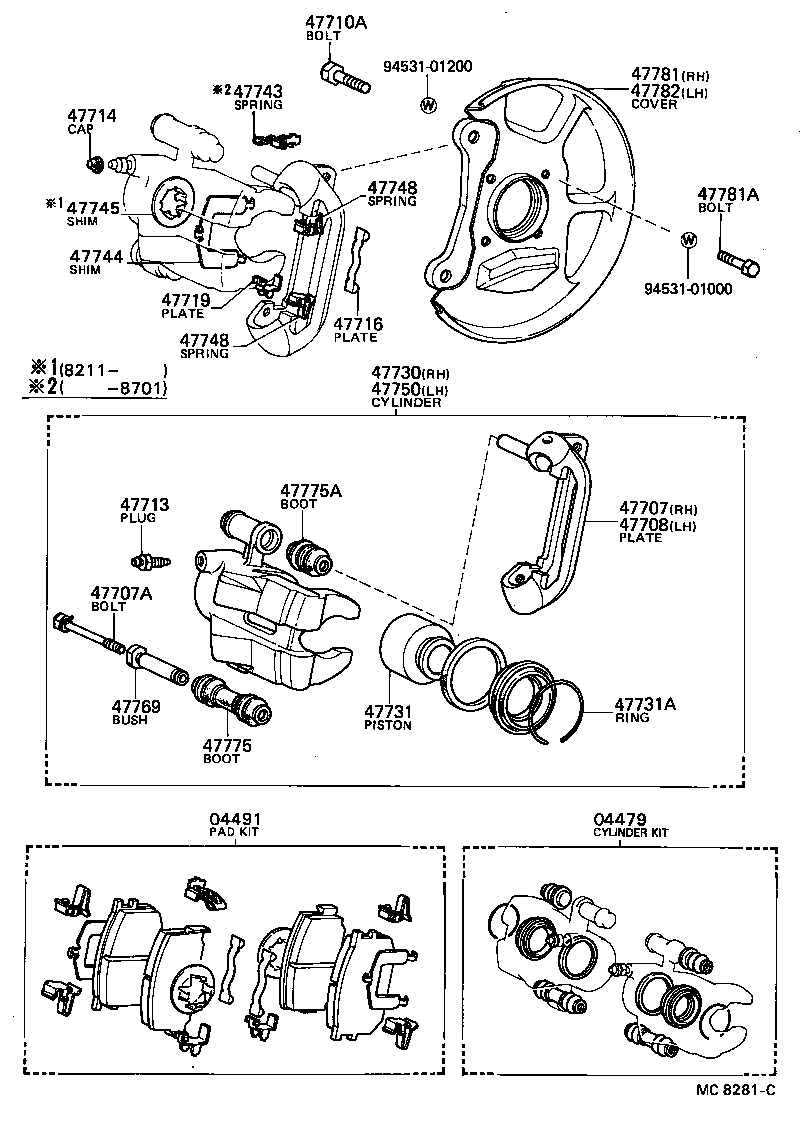

ILLUST NO. 1 OF 2(8201-8712)CT140..EXS,GX ; (8201-8712)AT140,CT141,147,KT147,ST140,TT147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14060 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-14120 |
AT140,CT14#,KT147,ST140,TT147..DLX,EXS,GX |
1 | ||
| 47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH | ||||
| 47707-14010 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
1 | ||
| 47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE) | ||||
| 90119-08199 |
AT140,CT140,ST140,TT147..EXS,GX SLIDE BUSH L=51.5 |
2 | ||
| 47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH | ||||
| 47708-14010 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12064 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14080 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
2 | ||
| 47719 - PLATE, FRONT DISC BRAKE PAD GUIDE | ||||
| 47736-12010 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-14050 |
AT140,CT140,ST140,TT147..EXA,EXS,GX |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14070 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXA,EXS,GX |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-60004 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-12010 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX LH |
1 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-14050 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47743-14040 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX LWR |
2 | ||
| 47748-14050 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX UPR |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47743-14040 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX LWR |
2 | ||
| 47748-14050 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX UPR |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14130 |
AT140,CT140,ST140,TT147..EXA,EXS,GX |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-14010 |
AT140,CT140,ST140,TT147..EXS,GX L=51.5 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-14010 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
2 | ||
| 47775A - BOOT, PIN | ||||
| 47776-14010 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-14080 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-10062 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-14080 |
AT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-14350 |
CT140,ST140..EXA,EXS,GX |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-14080 |
CT140,ST140..EXA,EXS,GX |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14230 |
CT140,ST140..EXA,EXS,GX |
1 | ||
