ST140-TEKNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)1SU

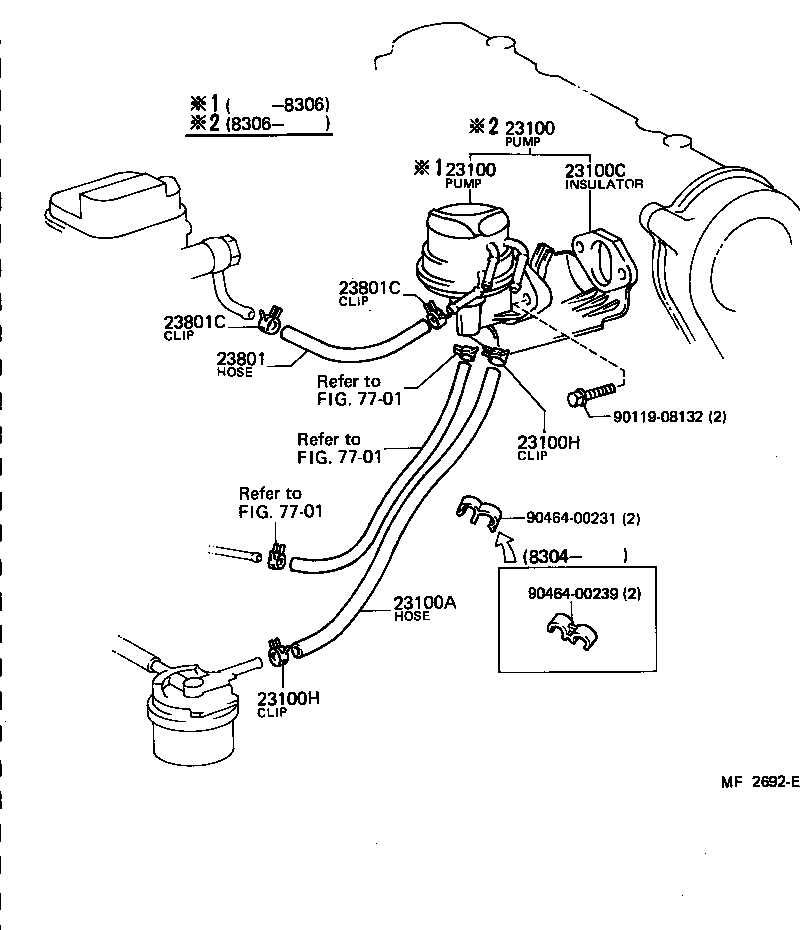

Click highlighted areas on diagram

diagram 23100 23100 23100A 23100C 23100H 23100H 23801 23801C 23801C 7701 7701 7701 9011908132 9046400231 9046400239
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-63010

1SU..ST140

 1
23100 - PUMP ASSY, FUEL
23100-63010

1SU..ST140

 1
23100A - HOSE, FUEL
95332-06060

1SU..ST140

*H,L=440

 1
23100C - INSULATOR, FUEL PUMP
23915-63010

1SU..ST140

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1SU..ST140

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1SU..ST140

MAIN

 4
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06020

1SU..ST140

*H,L=140

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1SU..ST140

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1SU..ST140

 2
Common parts
90119-08132
90464-00231
90464-00239
Linked diagrams
7701
