KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(8201-9111)AT140,CT14#,KT147,ST140,TT147

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82001 82011 82031 82111 82122 82123 82123 82123 82125 82131 82141 82210C 82210D 82210E 82210E 82210E 82219 82221 82223 82233 82233 82241C 82241C 82620 82670 82821A 9011906005 9011906005 9011906005 9011906053 9011906053 9011906053 9017908146 9161160610 9161160616 9161160616 9165140612 9165941218
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07058

KT147

L=370

 1
90980-07202

KT147

L=350 & 100,FR SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07058

KT147

L=370

 1
90980-07202

KT147

L=350 & 100,FR SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07058

KT147

L=370

 1
90980-07202

KT147

L=350 & 100,FR SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07058

KT147

L=370

 1
90980-07202

KT147

L=350 & 100,FR SIDE MEMBER

 1
82001 - CABLE, BOND, NO.1
90980-07058

KT147

L=370

 1
90980-07202

KT147

L=350 & 100,FR SIDE MEMBER

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-20340

KT147

 1
82111-20600

KT147

 1
82111-20341

KT147

 1
82122 - WIRE, ENGINE, NO.2
82122-14440

KT147

 1
82123 - WIRE, ENGINE, NO.3
82123-12010

KT147

NO.1

 1
82123 - WIRE, ENGINE, NO.3
82123-12010

KT147

NO.1

 1
82123 - WIRE, ENGINE, NO.3
82123-12010

KT147

NO.1

 1
82125 - WIRE, TRANSMISSION
82125-14130

KT147..4F

 1
82131 - WIRE, COWL
82131-20391

KT147..DLX,STD

 1
82131-20392

KT147..DLX,STD

 1
82210C - FUSIBLE LINK
90982-08125

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

1.0ｲｴﾛｰ,長さ=110,L=110,1.0Y

 1
90982-08125

AT140,CT147,KT147,ST140

1.0ｲｴﾛｰ,長さ=110,L=110,1.0Y

 1
82210D - FUSIBLE LINK
90982-08157

AT140,CT147,KT147,ST140

FL 0.3 ﾋﾟﾝｸ,L=100,0.3P

 1
90982-08157

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FL 0.3 ﾋﾟﾝｸ,L=100,0.3P

 1
82219 - WIRE, THERMO SENSOR
82219-12040

KT147

 1
82223 - WIRE, SWITCH
82223-14040

YT140..4H..DLX;KT147,TT147,YT140..STD

 1
82223-14040

KT147..STD

 1
82821A - COVER, CONNECTOR
82821-12120

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR SPEAKER

 2
Common parts
90119-06005
90119-06053
90179-08146
91611-60610
91611-60616
91651-40612
91659-41218

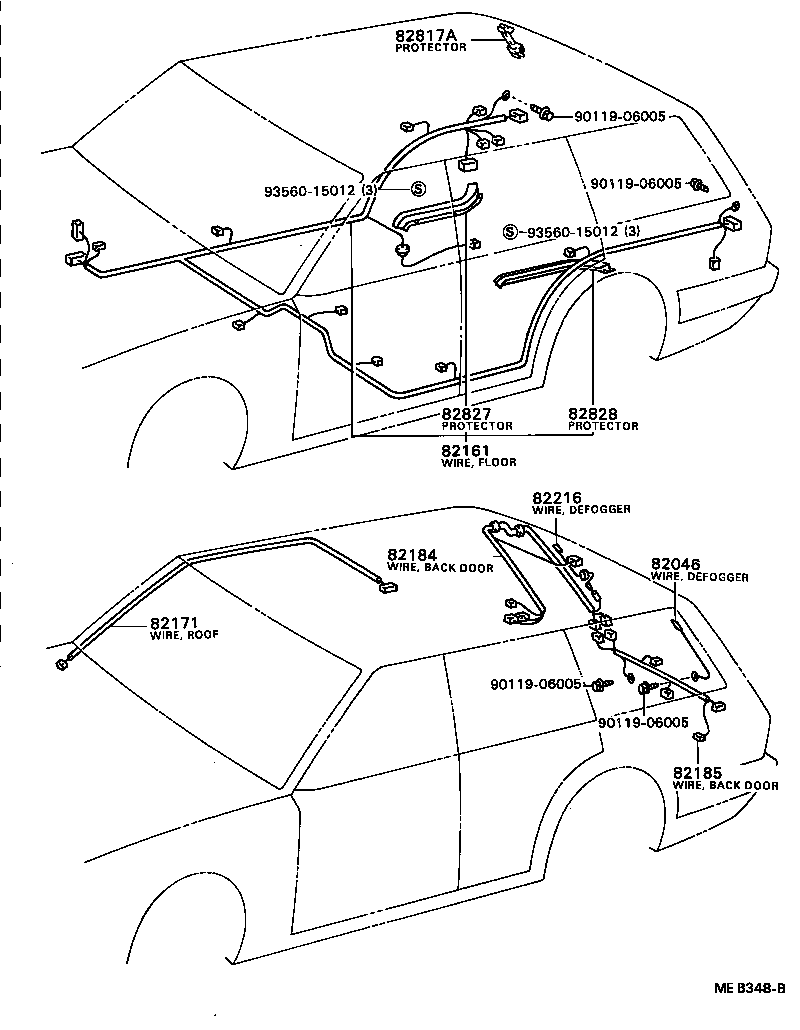

ILLUST NO. 2 OF 6(8201-8712)CT147,KT147,TT147

Click highlighted areas on diagram

diagram 82046 82161 82171 82184 82185 82216 82817A 82827 82828 9011906005 9011906005 9011906005 9011906005 9356015012 9356015012
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-91255

CT147,KT147,TT147

 1
82161 - WIRE, FLOOR
82161-91261

KT147,TT147..STD

 1
82171 - WIRE, ROOF, NO.1
82171-91C01

CT147,KT147,TT147

 1
82185 - WIRE, BACK DOOR, NO.2
82185-91C01

CT147,KT147,TT147..DLX,STD

 1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-91255

CT147,KT147,TT147

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-91255

CT147,KT147,TT147

 1
82827 - PROTECTOR, REAR FLOOR SIDE HARNESS, RH
82827-91260

CT147,KT147,TT147

 1
82828 - PROTECTOR, REAR FLOOR SIDE HARNESS, LH
82828-91258

CT147,KT147,TT147

 1
Common parts
90119-06005
93560-15012
