KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

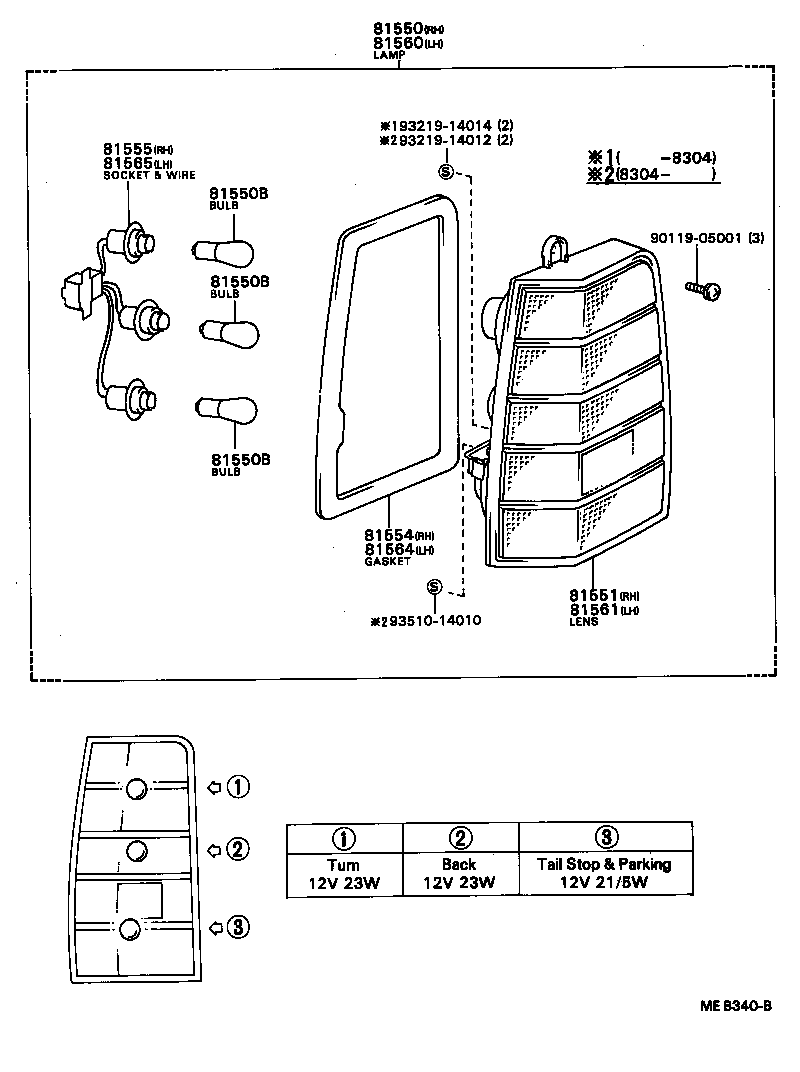

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9011905001 9321914012 9321914014 9351014010
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 23W,12V 23W

 4
99132-11230

AT140,CT147,KT147,ST140

12V 23W,12V 23W

 4
99132-21210

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 23W,12V 23W

 4
99132-11230

AT140,CT147,KT147,ST140

12V 23W,12V 23W

 4
99132-21210

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 23W,12V 23W

 4
99132-11230

AT140,CT147,KT147,ST140

12V 23W,12V 23W

 4
99132-21210

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

12V 21/5W,12V 21/5W

 4
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91261

CT147,KT147,TT147

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91261

CT147,KT147,TT147

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-91261

CT147,KT147,TT147

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-91261

CT147,KT147,TT147

 1
Common parts
90119-05001
93219-14012
93219-14014
93510-14010
