KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8712)CT147,KT147

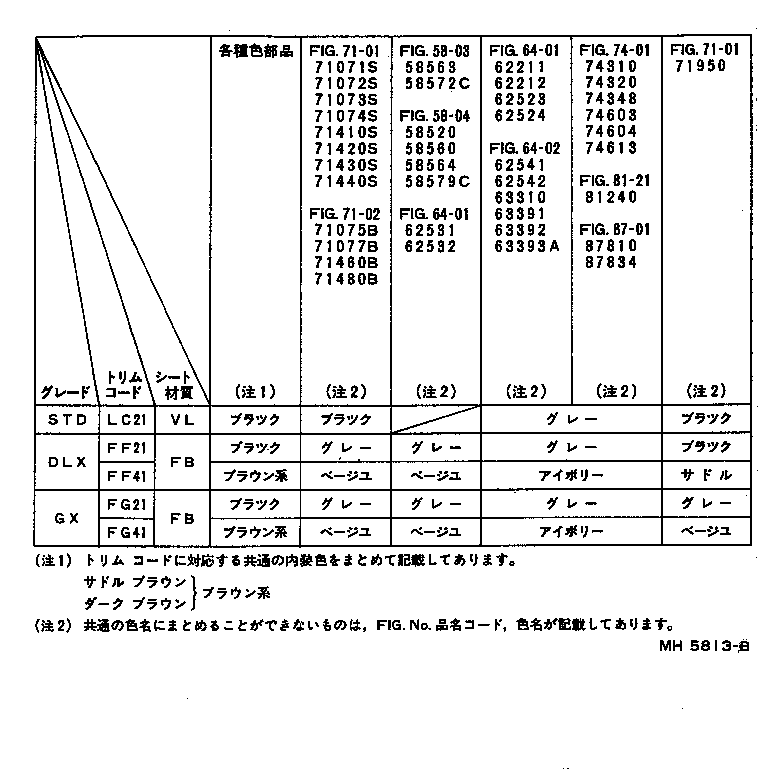

Click highlighted areas on diagram

diagram 5803 5804 58520 58560 58563 58564 58572C 58579C 62211 62212 62523 62524 62531 62532 62541 62542 63310 63391 63392 63393A 6401 6401 6402 7101 7101 7102 71071S 71072S 71073S 71074S 71075B 71077B 71410S 71420S 71430S 71440S 71460B 71480B 71950 7401 74310 74320 74348 74603 74604 74613 8121 81240 8701 87810 87834
Part # Description Qty Price
58563 - MAT, REAR FLOOR
58581-91C0103

CT147,KT147,TT147..(DLX,STD)..05S

GRAY,GRAY,TRIM2#

 1
58581-91C0105

CT147,KT147,TT147..(DLX,STD)..05S

BEIGE,BEIGE,TRIM4#

 1
58572C - CLIP, REAR FLOOR MAT SET
90467-0616123

CT147,KT147,TT147..(DLX,STD)..05S

OD=14,GRAY,GRAY,TRIM2#

 4
90467-0616105

CT147,KT147,TT147..(DLX,STD)..05S

OD=14,BEIGE,BEIGE,TRIM4#

 4
62211 - GARNISH, FRONT PILLAR, RH
62211-1410003

CT147,KT147,TT147

GRAY,GRAY,TRIM2#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-1410003

CT147,KT147,TT147

GRAY,GRAY,TRIM2#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1406003

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#,8#

 1
63391-1406003

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

GRAY,GRAY,TRIM2#,8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-91C0103

CT147,KT147,TT147

GRAY,GRAY,TRIM2#

 1
63392-91C0101

CT147,KT147,TT147

BLACK,BLACK,TRIM2#

 1
63393A - TRIM, ROOF HEADLINING, SIDE, NO.1
63393-91C0103

CT147,KT147,TT147..DLX,STD

GRAY,GRAY,TRIM2#

 2
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-91805

KT147..STD

VL,BLACK

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-91272

KT147..STD

VL,BLACK

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-91289

KT147..STD

VL,BLACK

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-91269

KT147..STD

VL,BLACK

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-91257

KT147..STD

VL,BLACK

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-91289

KT147..STD

VL,BLACK

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-91803

KT147..STD

VL,BLACK

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-91273

KT147..STD

VL,BLACK

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-91805

KT147..STD

VL,BLACK

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-91286

KT147..STD

VL,BLACK

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-91819

KT147..STD

VL,BLACK

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-91820

KT147..STD

VL,BLACK

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-1436001

CT147,KT147,TT147..DLX,STD

BLACK,BLACK,TRIM2#

 2
74310 - VISOR ASSY, RH
74310-1425003

AT14#,CT14#,KT147,ST140,TT142,YT140..DLX,GT,GTT,GX,STD

GRAY,GRAY,TRIM2#,8#

 1
74310-1431003

AT14#,CT147,KT147,ST140,TT142,YT140..DLX,GT,GTT,GX,STD

GRAY,GRAY,TRIM2#,8#

 1
74310-1431003

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#,8#

 1
74320 - VISOR ASSY, LH
74320-1425003

AT14#,CT14#,KT147,ST140,TT142,YT140..DLX,GT,GTT,GX,STD

GRAY,GRAY,TRIM2#,8#

 1
74320-1425003

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#

 1
74348 - HOLDER, VISOR
74348-1201023

AT14#,CT14#,KT147,ST140,TT142,YT140

GRAY,GRAY,TRIM2#,8#

 2
74348-1201023

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#,8#

 2
74613 - PLUG, ASSIST GRIP
74617-1401013

AT14#,CT14#,KT147,ST140,TT142,YT140

GRAY,GRAY,TRIM2#,8#

 6
74617-1401013

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#,8#

 6
81240 - LAMP ASSY, ROOM, NO.1
81240-2006013

CT147,KT147,TT147

GRAY,GRAY,TRIM2#

 1
81240-2207023

CT147,KT147

GRAY,GRAY,TRIM2#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1407103

AT140,CT140,KT147,TT147,YT140..STD

GRAY,STD TYPE,GRAY,TRIM2#,8#

 1
87810-1407103

AT140,KT147..STD

GRAY,STD TYPE,GRAY,TRIM2#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008033

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#,8#

 1
87834-2008033

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

GRAY,GRAY,TRIM2#,8#

 1
