KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

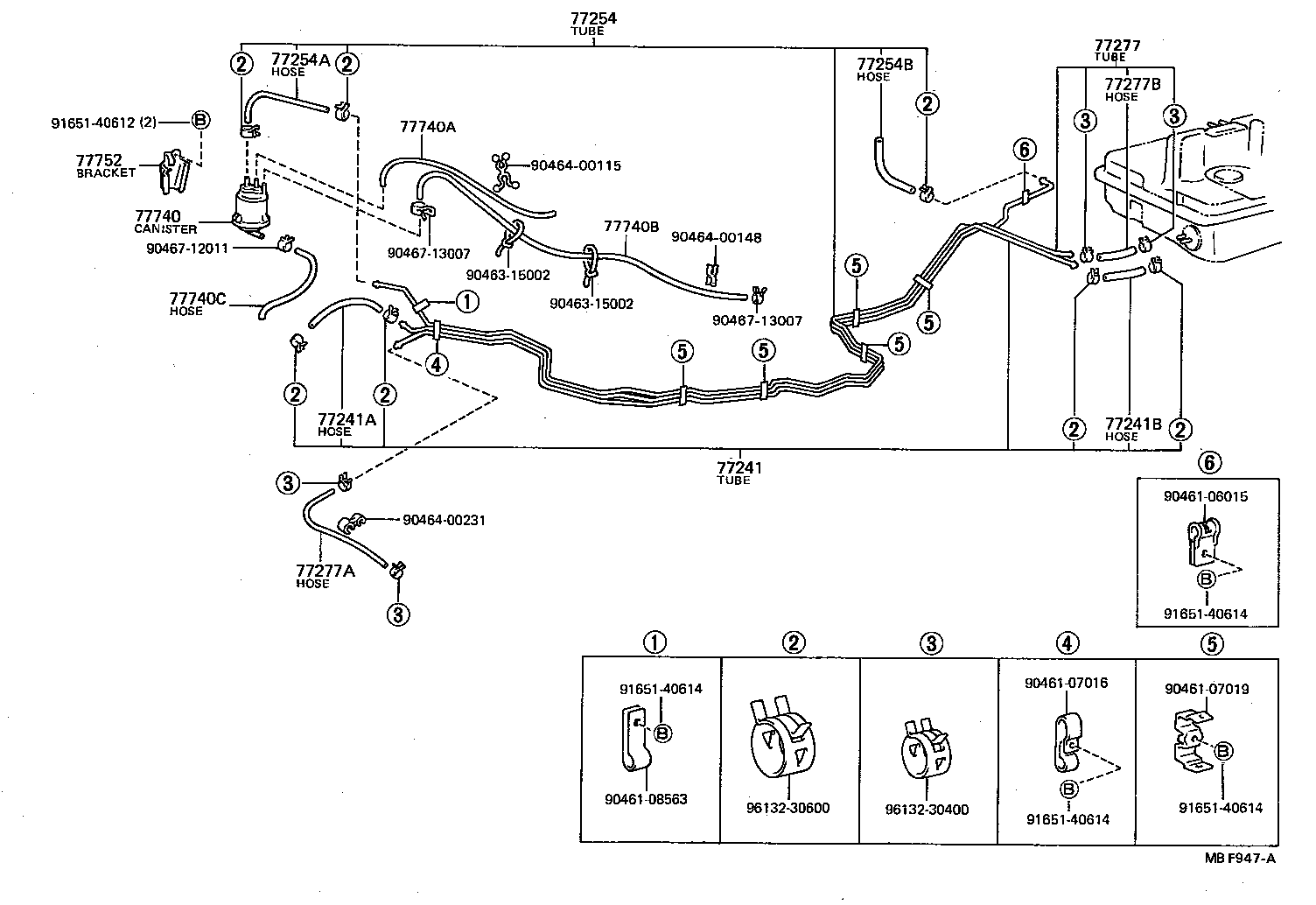

ILLUST NO. 2 OF 2(8310-8712)KT147

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77254 77254A 77254B 77277 77277A 77277B 77740 77740A 77740B 77740C 77752 9046106015 9046107016 9046107019 9046108563 9046315002 9046315002 9046400115 9046400148 9046400231 9046712011 9046713007 9046713007 9165140612 9165140614 9165140614 9165140614 9165140614 9613230400 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-91C03

KT147

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95333-06016

KT147

*H,L=160

 1
95333-06020

KT147

*H,L=160

 1
95332-06020

KT147

*H,L=160

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020

KT147,TT147

*H,L=200

 1
95333-06020

KT147

*H,L=200

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-91C03

KT147

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

KT147

*H,L=220

 1
95333-06030

KT147

*H,L=220

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06030

KT147

*H,L=280

 1
95333-06030

KT147

*H,L=280

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-91C03

KT147

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-04030

KT147

*H,L=300

 1
95333-04030

KT147

長さ=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04030

KT147,TT147

*H,L=220

 1
95333-04022

KT147

*H,L=220

 1
95333-04030

KT147

*H,L=220

 1
77740 - CANISTER ASSY, CHARCOAL
77704-12260

KT147

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

KT147

*H,L=390,ﾏｰｸ=#*

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23829-13050

KT147

 1
90910-05167

KT147

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-13010

KT147

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77751-13030

KT147

 1
Common parts
90461-06015
90461-07016
90461-07019
90461-08563
90463-15002
90464-00115
90464-00148
90464-00231
90467-12011
90467-13007
91651-40612
91651-40614
96132-30400
96132-30600
