KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

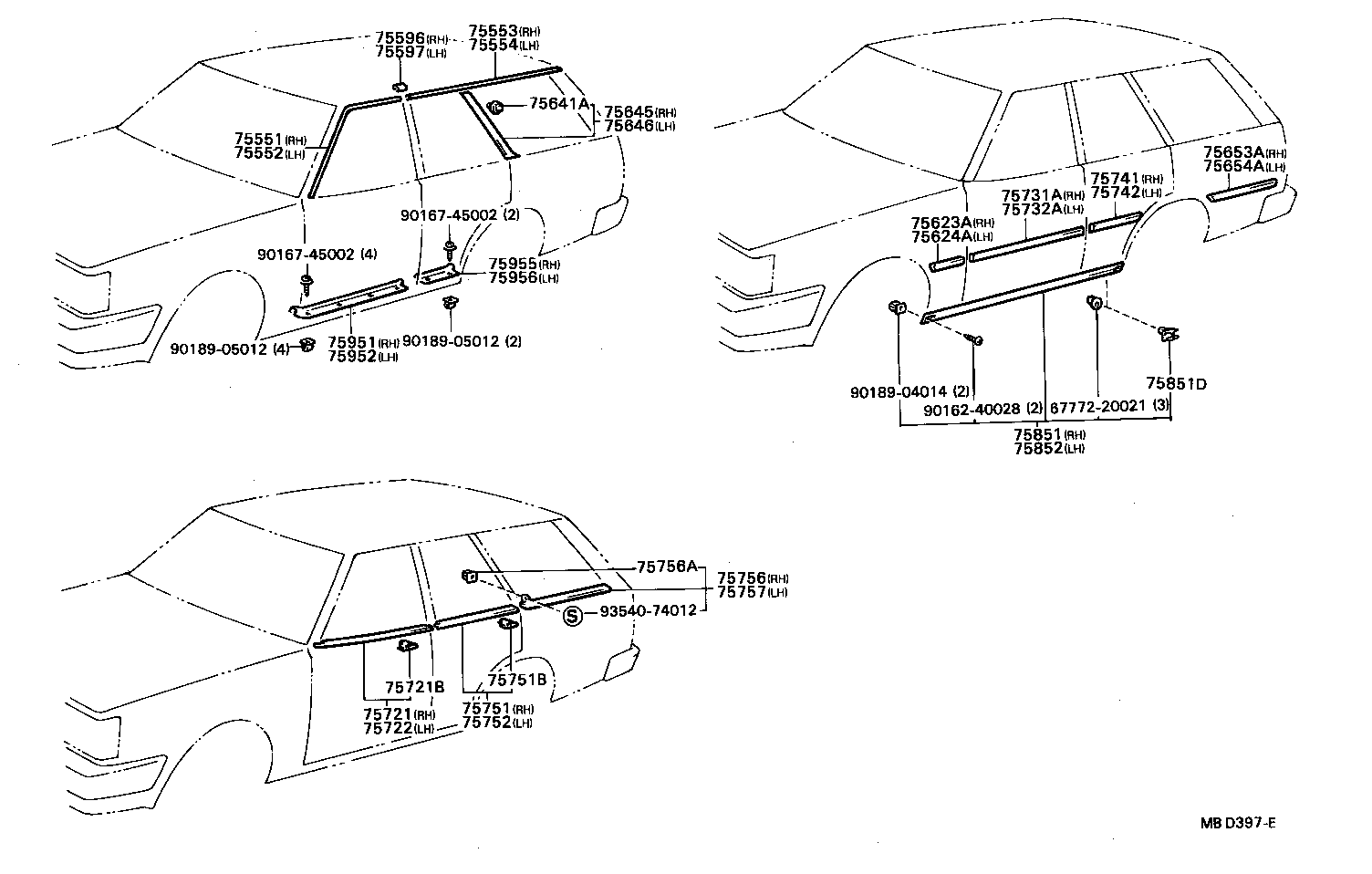

Click highlighted areas on diagram

diagram 6777220021 75551 75552 75553 75554 75596 75597 75623A 75624A 75641A 75645 75646 75653A 75654A 75721 75721B 75722 75731A 75732A 75741 75742 75751 75751B 75752 75756 75756A 75757 75851 75851D 75852 75951 75952 75955 75956 9016240028 9016745002 9016745002 9018904014 9018905012 9018905012 9354074012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-91C01

CT147,KT147,TT147

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-91C01

CT147,KT147,TT147

 1
75553 - MOULDING, ROOF DRIP SIDE FINISH, RH
75553-91C01

CT147,KT147,TT147

 1
75554 - MOULDING, ROOF DRIP SIDE FINISH, LH
75554-91C01

CT147,KT147,TT147

 1
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-91C01

CT147,KT147,TT147

 1
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-91C01

CT147,KT147,TT147

 1
75645 - MOULDING, QUARTER WINDOW, OUTSIDE REAR RH
75055-91256

CT147,KT147,TT147

 1
75646 - MOULDING, QUARTER WINDOW, OUTSIDE REAR LH
75056-91256

CT147,KT147,TT147

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1409001

AT140,CT147,KT147,ST140

BLACK,BLACK,TRIM2#

 1
67913-1409001

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BLACK,BLACK,TRIM2#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-1408001

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BLACK,BLACK,TRIM2#

 1
67914-1408001

AT140,CT147,KT147,ST140

BLACK,BLACK,TRIM2#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-91C0101

CT147,KT147,TT147

BLACK,BLACK,TRIM2#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67918-91C0101

CT147,KT147,TT147

BLACK,BLACK,TRIM2#

 1
Common parts
67772-20021
90162-40028
90167-45002
90189-04014
90189-05012
93540-74012
