KT147V-TXKRS (1983)
Toyota Corona
(8201-8712)CT147,KT147,TT147
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

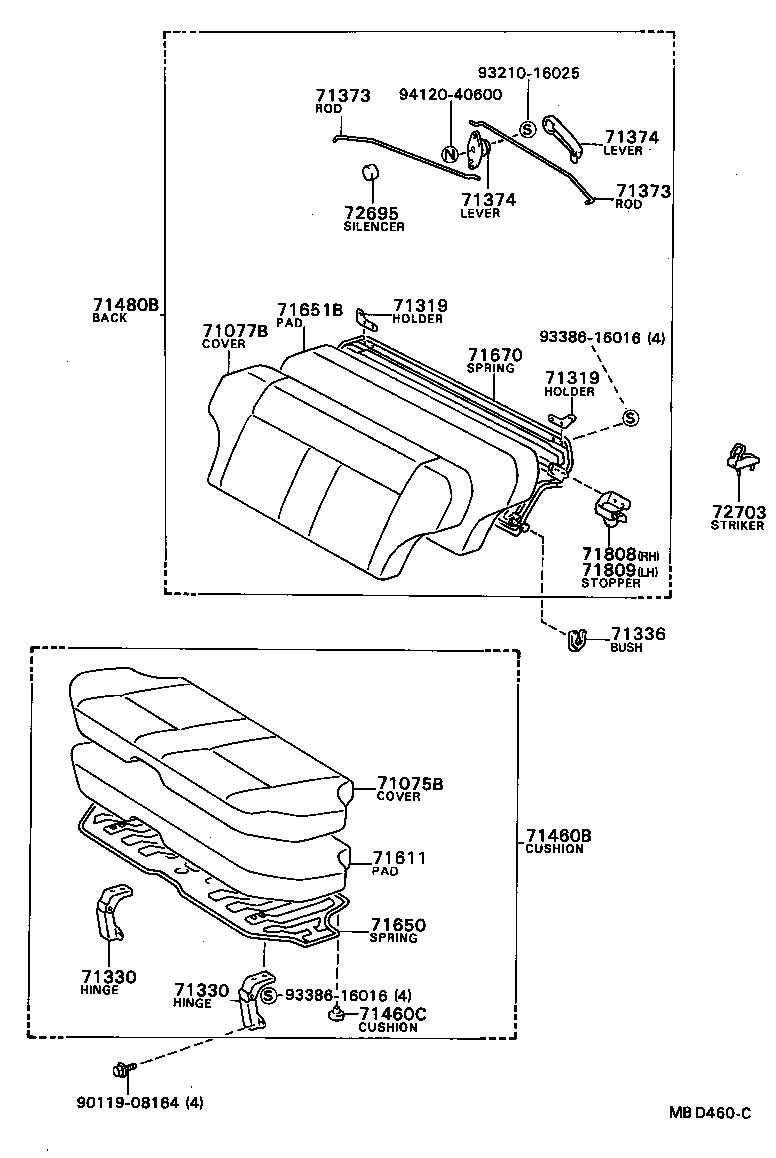

| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-91257 |
KT147..STD VL,BLACK |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-91289 |
KT147..STD VL,BLACK |
1 | ||
| 71319 - HOLDER, REAR SEAT BACK | ||||
| 71398-13010 |
CT147,KT147,TT147..05S |
2 | ||
| 71319 - HOLDER, REAR SEAT BACK | ||||
| 71398-13010 |
CT147,KT147,TT147..05S |
2 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 71301-91C01 |
CT147,KT147,TT147..05S |
2 | ||
| 71330 - HINGE ASSY, REAR SEAT CUSHION | ||||
| 71301-91C01 |
CT147,KT147,TT147..05S |
2 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 90386-12021 |
CT147,KT147,TT147..05S |
2 | ||
| 71373 - ROD, REAR SEAT BACK LOCKING | ||||
| 72652-91C01 |
CT147,KT147,TT147..05S LH |
1 | ||
| 72651-91C01 |
CT147,KT147,TT147..05S RH |
1 | ||
| 71373 - ROD, REAR SEAT BACK LOCKING | ||||
| 72652-91C01 |
CT147,KT147,TT147..05S LH |
1 | ||
| 72651-91C01 |
CT147,KT147,TT147..05S RH |
1 | ||
| 71374 - LEVER, REAR SEAT BACK ROD CONTROL | ||||
| 72637-13030 |
CT147,KT147,TT147..05S INNER |
1 | ||
| 72636-13010 |
CT147,KT147,TT147..05S OUTER |
1 | ||
| 71374 - LEVER, REAR SEAT BACK ROD CONTROL | ||||
| 72637-13030 |
CT147,KT147,TT147..05S INNER |
1 | ||
| 72636-13010 |
CT147,KT147,TT147..05S OUTER |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-91819 |
KT147..STD VL,BLACK |
1 | ||
| 71460C - CUSHION (FOR REAR SEAT CUSHION) | ||||
| 90541-09011 |
CT147,KT147,TT147..05S |
3 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-91820 |
KT147..STD VL,BLACK |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-91C02 |
CT147,KT147,TT147..05S |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71201-91C01 |
CT147,KT147,TT147..05S |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-15020 |
CT147,KT147,TT147..05S |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71202-91C01 |
CT147,KT147,TT147..05S |
1 | ||
| 71808 - STOPPER SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-91C01 |
CT147,KT147,TT147..05S |
1 | ||
| 71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-91C01 |
CT147,KT147,TT147..05S |
1 | ||
| 72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72695-13011 |
CT147,KT147,TT147..05S |
3 | ||
| 72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER | ||||
| 72610-91C0101 |
CT147,KT147,TT147..05S BLACK,BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 93210-16025 | ||||
| 93386-16016 | ||||
| 94120-40600 | ||||
