KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

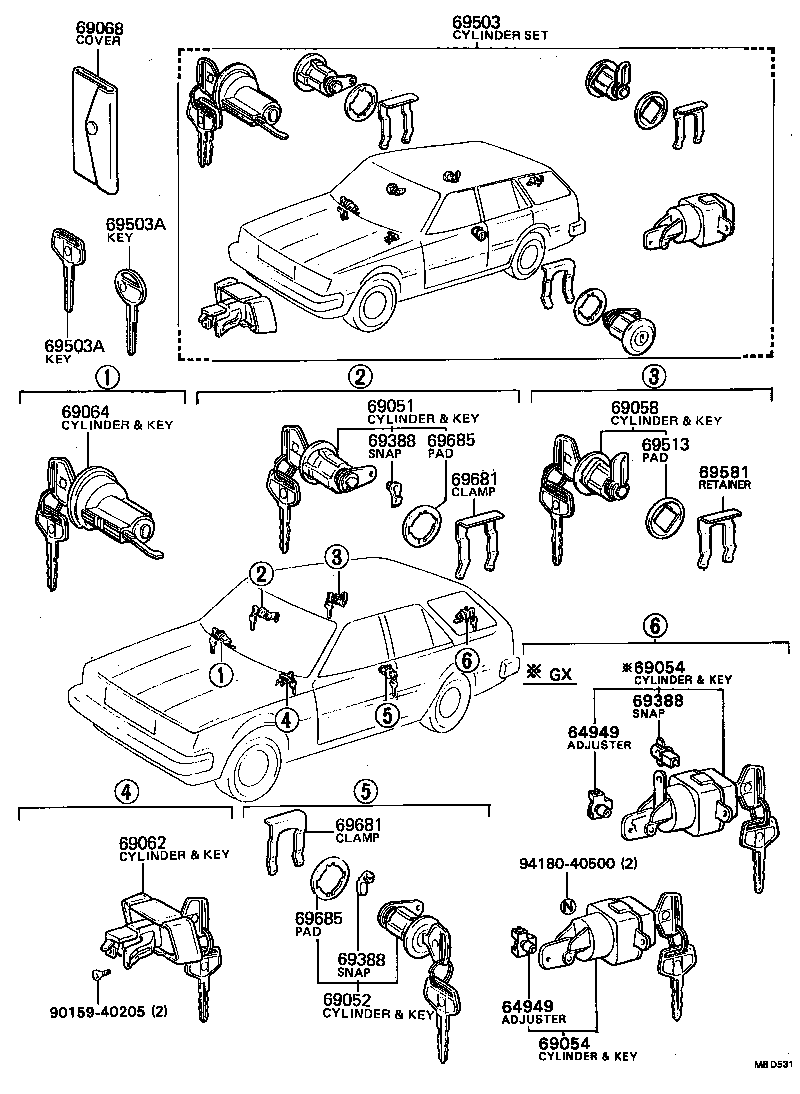

Click highlighted areas on diagram

diagram 64949 64949 69051 69052 69054 69054 69058 69062 69064 69068 69388 69388 69388 69503 69503A 69503A 69513 69581 69681 69681 69685 69685 9015940205 9418040500
Part # Description Qty Price
64949 - ADJUSTER, BACK DOOR LOCK CONTROL LINK
64949-21020

CT147,KT147,TT147

 1
64949 - ADJUSTER, BACK DOOR LOCK CONTROL LINK
64949-21020

CT147,KT147,TT147

 1
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-29336

CT147,KT147,TT147

 1
69051-91259

CT147,KT147

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-91259

CT147,KT147

 1
69052-29336

CT147,KT147,TT147

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-91257

CT147,KT147..DLX,STD

 1
69055-91256

CT147,KT147,TT147..DLX,STD

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-91257

CT147,KT147..DLX,STD

 1
69055-91256

CT147,KT147,TT147..DLX,STD

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-91C03

CT147,KT147

 1
69058-19155

CT147,KT147,TT147

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-91C0101

CT147,KT147,TT147

BLACK,BLACK,TRIM2#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-91C01

CT147,KT147,TT147

 1
69057-91C03

CT147,KT147

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
69555-20010

AT140,CT147,KT147,ST140

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BROWN

 2
69759-24080

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

YELLOW

 2
69759-24080

AT140,CT147,KT147,ST140

YELLOW

 2
69759-24090

AT140,CT147,KT147,ST140

BROWN

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BROWN

 2
69759-24080

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

YELLOW

 2
69759-24080

AT140,CT147,KT147,ST140

YELLOW

 2
69759-24090

AT140,CT147,KT147,ST140

BROWN

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BROWN

 2
69759-24080

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

YELLOW

 2
69759-24080

AT140,CT147,KT147,ST140

YELLOW

 2
69759-24090

AT140,CT147,KT147,ST140

BROWN

 2
69503 - CYLINDER SET, LOCK
69005-9126301

CT147,KT147,TT147..DLX,STD

BLACK,BLACK,TRIM2#

 1
69503A - KEY, BLANK
90999-00067

CT147,KT147,TT147

ﾏｽﾀｰｷｰ,MASTER KEY

 1
90999-00124

CT147,KT147

ﾏｽﾀｰｷｰ,*68付き,W/PROTECTOR,MASTER KEY

 1
90999-00071

CT147,KT147,TT147

ｻﾌﾞｷｰ,SUB KEY

 1
69503A - KEY, BLANK
90999-00067

CT147,KT147,TT147

ﾏｽﾀｰｷｰ,MASTER KEY

 1
90999-00124

CT147,KT147

ﾏｽﾀｰｷｰ,*68付き,W/PROTECTOR,MASTER KEY

 1
90999-00071

CT147,KT147,TT147

ｻﾌﾞｷｰ,SUB KEY

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-12020

CT147,KT147,TT147

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

KT147;AT140,CT140,147..DLX,STD

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 2
69681-20040

AT140,CT147,KT147,ST140

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 2
69681-20040

AT140,CT147,KT147,ST140

 2
69685 - PAD, LOCK CYLINDER
69513-12020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 2
69513-12020

AT140,CT147,KT147,ST140

 2
69685 - PAD, LOCK CYLINDER
69513-12020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 2
69513-12020

AT140,CT147,KT147,ST140

 2
Common parts
90159-40205
94180-40500
