KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

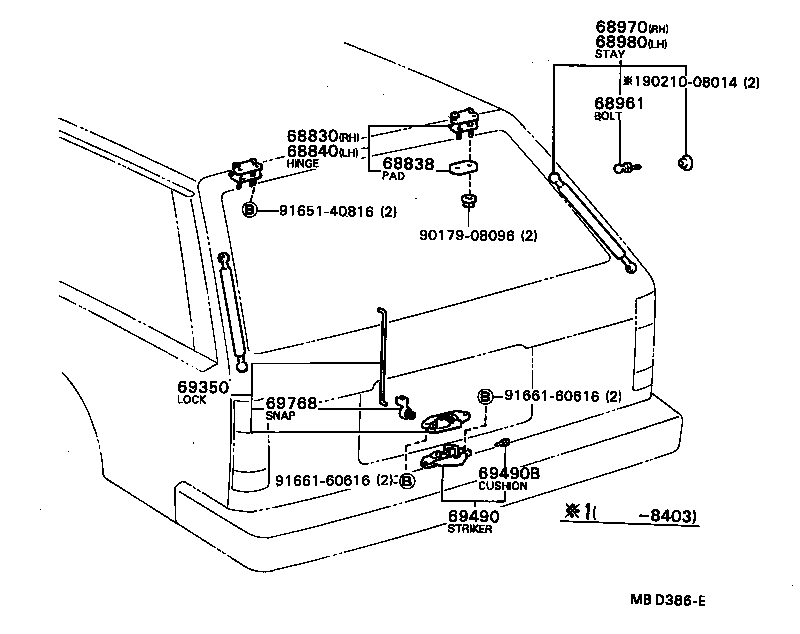

Click highlighted areas on diagram

diagram 68830 68838 68840 68961 68970 68980 69350 69490 69490B 69768 9017908096 9021008014 9165140816 9166160616 9166160616
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-91C01

CT147,KT147,TT147

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-15010

CT147,KT147,TT147

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-91C01

CT147,KT147,TT147

 1
68961 - BOLT, BACK DOOR STAY
68961-14010

CT147,KT147,TT147

 4
68961-91C01

CT147,KT147

 4
68961-23010

CT147,KT147..DLX,STD

 4
68961-12010

CT147,KT147..DLX,STD

 4
68961-12010

CT147,KT147

 4
68961-12010

CT147,KT147

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19485

CT147,KT147..DLX,STD

 1
68980 - STAY ASSY, BACK DOOR
68960-19215

CT147,KT147..DLX,STD

 1
69350 - LOCK ASSY, BACK DOOR
69350-91260

CT147,KT147,TT147

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-91C01

CT147,KT147,TT147

 1
69490B - CUSHION(FOR BACK DOOR LOCK STRIKER)
90541-06002

CT147,KT147,TT147

 1
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
69759-24050

CT147,KT147

 1
69377-30020

CT147,KT147,TT147

 1
Common parts
90179-08096
90210-08014
91651-40816
91661-60616
