KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

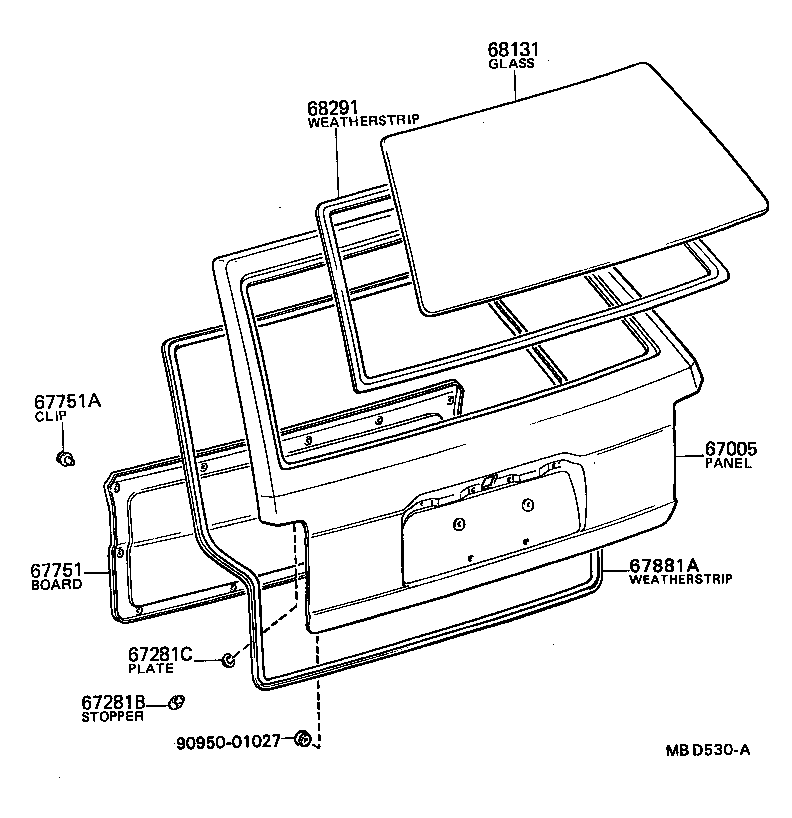

Click highlighted areas on diagram

diagram 67005 67281B 67281C 67751 67751A 67881A 68131 68291 9095001027
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-91B48

CT147,KT147..DLX,STD

W/O RR WIPER

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-95500

CT147,KT147

 4
67281-13030

CT147,KT147

 4
67281C - PLATE, BACK DOOR LOWER STOPPER
90213-12019

CT147,KT147,TT147

T=1.0

 1
90213-12020

CT147,KT147,TT147

T=2.3

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0601701

CT147,KT147,TT147

BLACK,BLACK,TRIM2#

 11
67881A - WEATHERSTRIP, BACK DOOR
67881-91702

CT147,KT147,TT147

 1
68131 - GLASS, BACK DOOR
68105-91C01

CT147,KT147,TT147

*EHT,厚さ=3.5,*EHT,T=3.5

 1
68131-91C01

KT147,TT147..STD

*TEM,厚さ=3.5,*TEM,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-91C01

KT147,TT147..STD

 1
Common parts
90950-01027
