KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

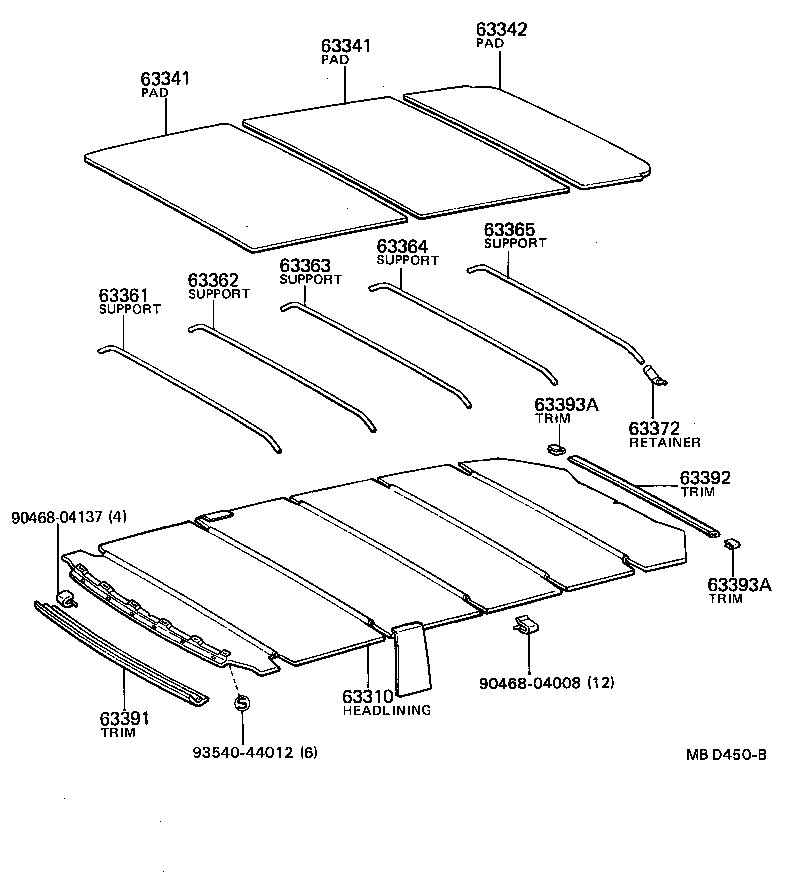

Click highlighted areas on diagram

diagram 63310 63341 63341 63342 63361 63362 63363 63364 63365 63372 63391 63392 63393A 63393A 9046804008 9046804137 9354044012
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63341-91256

CT147,KT147,TT147

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-91256

CT147,KT147,TT147

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-91C02

CT147,KT147,TT147

L=1007

 1
63361-91C03

CT147,KT147,TT147

L=1001

 1
63361-91C01

CT147,KT147,TT147

L=1004

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-91C03

CT147,KT147,TT147

L=1001

 1
63361-91C01

CT147,KT147,TT147

L=1004

 1
63361-91C02

CT147,KT147,TT147

L=1007

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-91C01

CT147,KT147,TT147

L=1004

 1
63361-91C03

CT147,KT147,TT147

L=1001

 1
63361-91C02

CT147,KT147,TT147

L=1007

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-91C02

CT147,KT147,TT147

L=1007

 1
63361-91C03

CT147,KT147,TT147

L=1001

 1
63361-91C01

CT147,KT147,TT147

L=1004

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63361-91C02

CT147,KT147,TT147

L=1007

 1
63361-91C03

CT147,KT147,TT147

L=1001

 1
63361-91C01

CT147,KT147,TT147

L=1004

 1
63372 - RETAINER, HEADLINING SUPPORT
63371-14040

CT147,KT147,TT147

 10
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1406003

AT140,CT147,KT147,ST140

GRAY,GRAY,TRIM2#,8#

 1
63391-1406003

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

GRAY,GRAY,TRIM2#,8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-91C0103

CT147,KT147,TT147

GRAY,GRAY,TRIM2#

 1
63392-91C0101

CT147,KT147,TT147

BLACK,BLACK,TRIM2#

 1
63393A - TRIM, ROOF HEADLINING, SIDE, NO.1
63393-91C0103

CT147,KT147,TT147..DLX,STD

GRAY,GRAY,TRIM2#

 2
63393A - TRIM, ROOF HEADLINING, SIDE, NO.1
63393-91C0103

CT147,KT147,TT147..DLX,STD

GRAY,GRAY,TRIM2#

 2
Common parts
90468-04008
90468-04137
93540-44012
