KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)CT147,KT147,TT147

Click highlighted areas on diagram

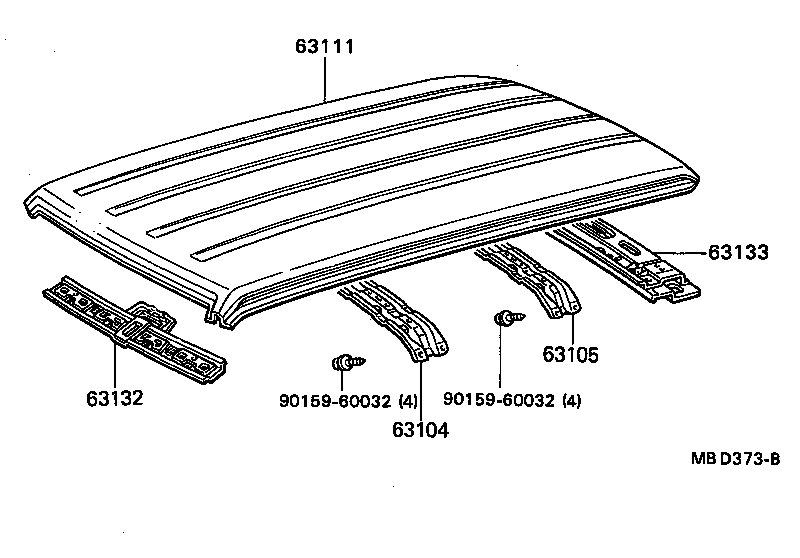

diagram 63104 63105 63111 63132 63133 9015960032 9015960032
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-91C01

CT147,KT147,TT147

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63142-91C01

CT147,KT147,TT147

 1
63111 - PANEL, ROOF
63111-91C01

CT147,KT147,TT147

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14030

CT147,KT147,TT147

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-91C01

CT147,KT147,TT147..DLX,STD

W/O RR WIPER

 1
Common parts
90159-60032
