KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

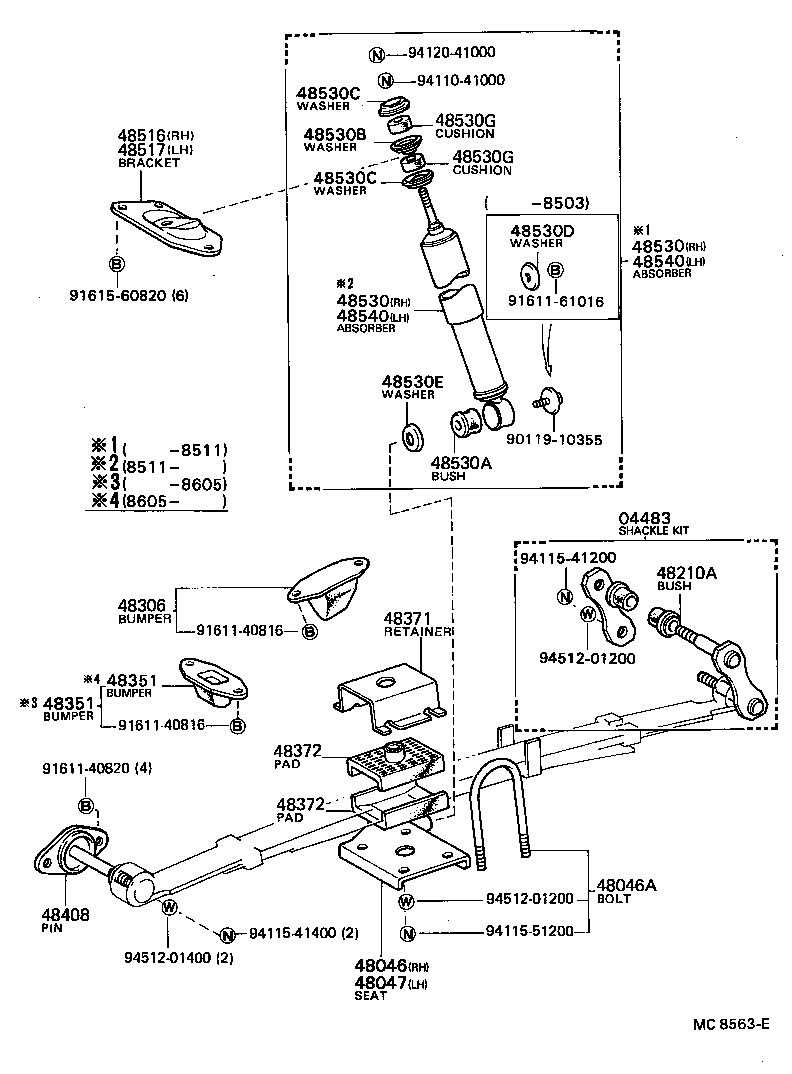

ILLUST NO. 1 OF 2(8201-8712)CT147,KT147,TT147

Click highlighted areas on diagram

diagram 04483 48046 48046A 48047 48210A 48306 48351 48351 48371 48372 48372 48408 48516 48517 48530 48530 48530A 48530B 48530C 48530C 48530D 48530E 48530G 48530G 48540 48540 9011910355 9161140816 9161140816 9161140820 9161161016 9161560820 9411041000 9411541200 9411541400 9411551200 9412041000 9451201200 9451201200 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-21050

CT147,KT147,TT147

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-23040

CT147,KT147,TT147

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-12163

CT147,KT147,TT147

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-23030

CT147,KT147,TT147

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15070

CT147,KT147,TT147

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-19055

CT147,KT147,TT147

 2
48351 - BUMPER, DIFFERENTIAL CARRIER
48351-19025

CT147,KT147,TT147

 1
48351-12020

CT147,KT147

 1
48351 - BUMPER, DIFFERENTIAL CARRIER
48351-19025

CT147,KT147,TT147

 1
48351-12020

CT147,KT147

 1
48371 - RETAINER, REAR SPRING PAD
48371-21060

CT147,KT147,TT147

 2
48372 - PAD, REAR SPRING
48372-23030

CT147,KT147,TT147

 4
48372 - PAD, REAR SPRING
48372-23030

CT147,KT147,TT147

 4
48408 - PIN SUB-ASSY, SPRING BRACKET
48408-15010

CT147,KT147,TT147

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-21010

CT147,KT147,TT147

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517-21010

CT147,KT147,TT147

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-21050

CT147,KT147

 1
48531-29885

CT147,KT147,TT147

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-21050

CT147,KT147

 1
48531-29885

CT147,KT147,TT147

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

AT141,CT147,KT147,RT141,TT14#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

AT141,CT147,KT147,RT141,TT14#

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

CT147,KT147,TT147

 4
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

CT147,KT147,TT147

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29885

CT147,KT147,TT147

 1
48531-21050

CT147,KT147

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29885

CT147,KT147,TT147

 1
48531-21050

CT147,KT147

 1
Common parts
90119-10355
91611-40816
91611-40820
91611-61016
91615-60820
94110-41000
94115-41200
94115-41400
94115-51200
94120-41000
94512-01200
94512-01400
