KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8201-8612)CT14#..DLX,EXS,GX ; (8201-8612)KT147,TT147,YT140 ; (8612-8712)CT147,KT14

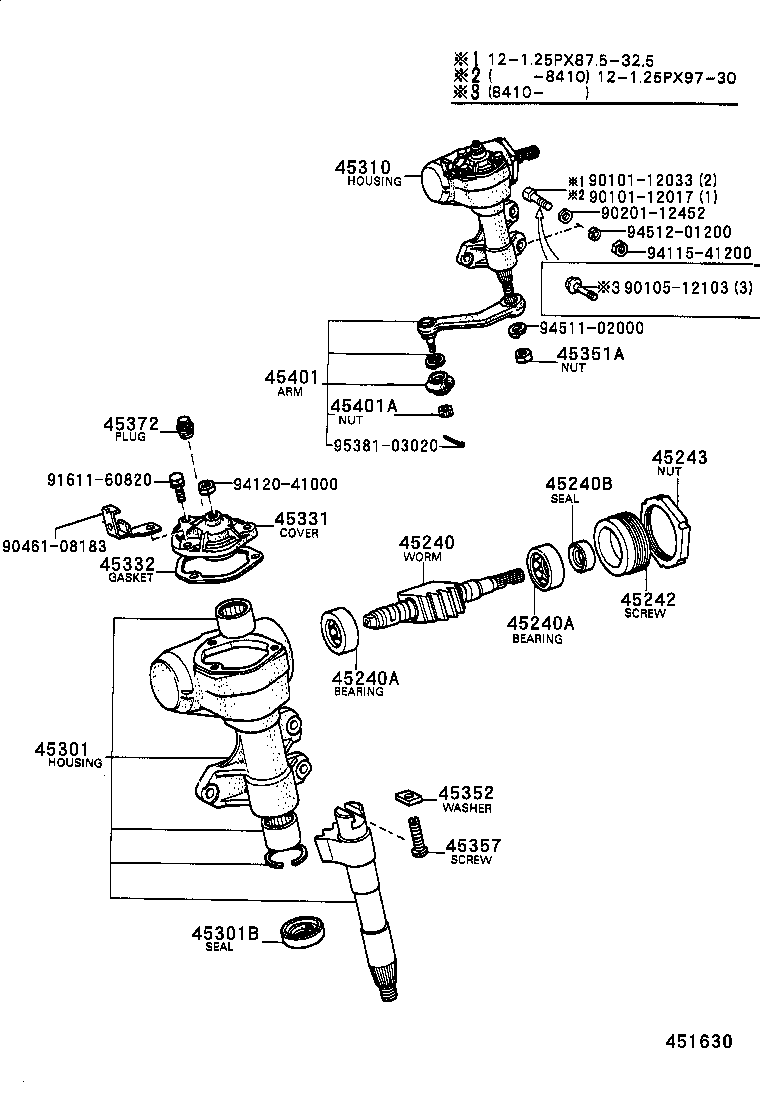

Click highlighted areas on diagram

MANUAL STEERING

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010112017 9010112033 9010512103 9020112452 9046108183 9161160820 9411541200 9412041000 9451102000 9451201200 9538103020
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-35061

CT147,KT147,YT140

 1
45240-22090

CT147,KT147,TT147,YT140

 1
45240-35061

CT147,KT147

 1
45240A - BEARING(FOR STEERING WORM)
90369-19001

CT14#,KT147,TT147,YT140

 2
45240A - BEARING(FOR STEERING WORM)
90369-19001

CT14#,KT147,TT147,YT140

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19001

CT14#,KT147,TT147,YT140

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-22040

CT147,KT147

 1
45242-22040

CT147,KT147,TT147,YT140

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-30060

CT147,KT147,TT147,YT140

 1
45243-30060

CT147,KT147

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-22071

CT147,KT147,TT147,YT140

 1
45301-22071

CT147,KT147

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-28027

CT147,KT147

 1
90310-28027

CT147,KT147,TT147,YT140

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-14130

CT147,KT147,TT147,YT140

 1
45310-14130

CT147,KT147

 1
45331 - COVER, SECTOR SHAFT END
45304-12020

CT147,KT147,TT147,YT140

 1
45304-12020

CT147,KT147

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-22020

CT147,KT147

 1
45332-22020

CT147,KT147,TT147,YT140

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

CT140,141,KT147,TT147,YT140

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-14010

CT147,KT147,TT147,YT140

厚さ=2.00,T=2.00

 1
45352-14010

CT147,KT147

厚さ=2.00,T=2.00

 1
45352-14020

CT147,KT147,TT147,YT140

厚さ=2.04,T=2.04

 1
45352-14030

CT147,KT147

厚さ=2.08,T=2.08

 1
45352-14030

CT147,KT147,TT147,YT140

厚さ=2.08,T=2.08

 1
45352-14060

CT147,KT147,TT147,YT140

厚さ=2.20,T=2.20

 1
45352-14040

CT147,KT147,TT147,YT140

厚さ=2.12,T=2.12

 1
45352-14040

CT147,KT147

厚さ=2.12,T=2.12

 1
45352-14050

CT147,KT147,TT147,YT140

厚さ=2.16,T=2.16

 1
45352-14020

CT147,KT147

厚さ=2.04,T=2.04

 1
45352-14050

CT147,KT147

厚さ=2.16,T=2.16

 1
45352-14060

CT147,KT147

厚さ=2.20,T=2.20

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-30040

CT147,KT147,TT147,YT140

 1
45357-30040

CT147,KT147

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

CT140,141,KT147,TT147,YT140

 1
45401 - ARM SUB-ASSY, PITMAN
45401-19225

CT140,141,KT147,TT147,YT140

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-12028

CT140,141,KT147,TT147,YT140

 1
Common parts
90101-12017
90101-12033
90105-12103
90201-12452
90461-08183
91611-60820
94115-41200
94120-41000
94511-02000
94512-01200
95381-03020
