KT147V-TXKRS (1983)
Toyota Corona

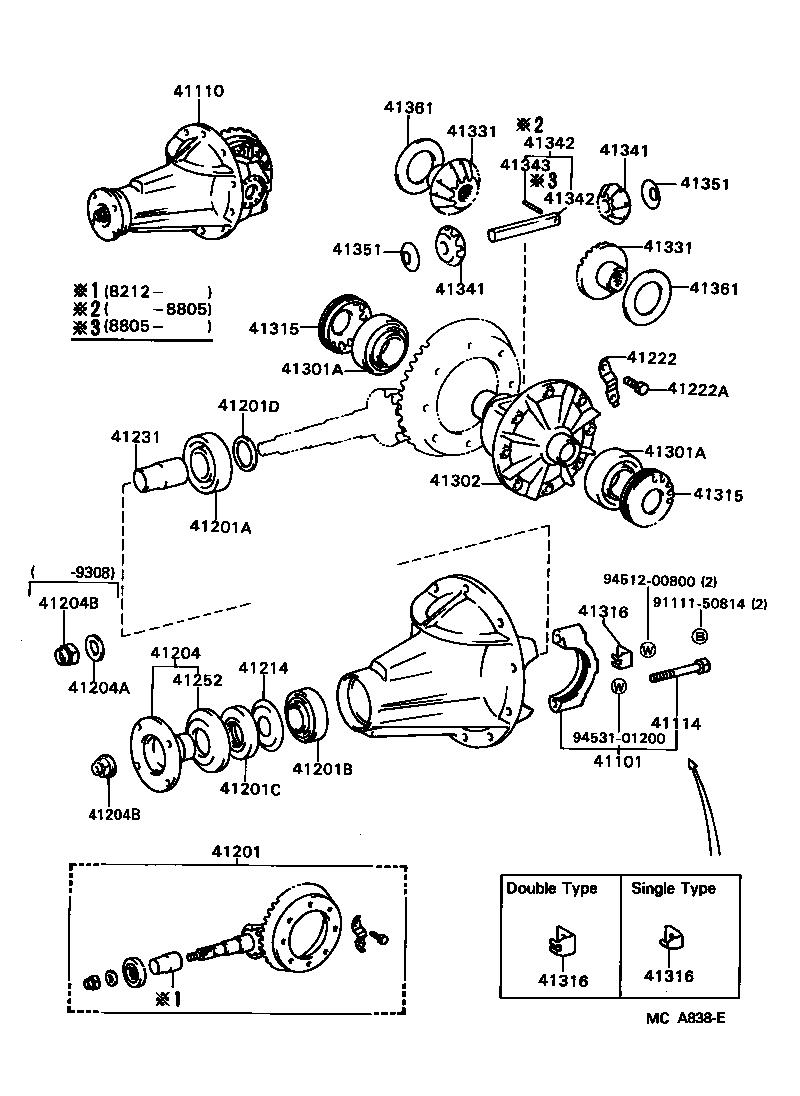

ILLUST NO. 1 OF 2(8201-9610)CT147,KT147,TT147,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30010 |
CT147,KT147,TT147 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20241 |
CT147,KT147,TT147..MTM *FGR=41:10=4.100 |
1 | ||
| 41110-20251 |
CT147,KT147..MTM *FGR=43:11=3.909 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29168 |
CT147,KT147..MTM *FGR=43:11=3.909 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97609-32307 |
CT147,KT147,TT147,YT140 |
1 | ||
| 90366-35055 |
CT147,KT147,YT140 NACHI |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30008 |
CT147,KT147,TT147,YT140 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CT147,KT147,TT147,YT140 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35434 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.24,ﾏｰｸ 01,T=2.23-2.25 |
1 | ||
| 90201-35404 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35435 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35436 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35401 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35398 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35396 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35402 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.72,ﾏｰｸ 17,T=2.71-2.73 |
1 | ||
| 90201-35439 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35403 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 90201-35400 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35399 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35438 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 90201-35440 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35437 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 # |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22020 |
CT147,KT147,TT147,YT140 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30022 |
CT147,KT147,TT147,YT140 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CT147,KT147,TT147,YT140 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CT147,KT147,TT147,YT140 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CT147,KT147,TT147,YT140 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CT147,KT147,TT147,YT140 SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-30010 |
CT147,KT147,TT147,YT140 DOUBLE TYPE |
2 | ||
| 41316-30010 |
CT147,KT147,TT147,YT140 SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30021 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30021 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39015 |
CT147,KT147,TT147,YT140 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39015 |
CT147,KT147,TT147,YT140 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CT147,KT147,TT147,YT140 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.10,ﾏｰｸ 03,T=1.08-1.12 |
2 | ||
| 41361-22150 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.05,ﾏｰｸ 15,T=1.03-1.07 |
2 | ||
| 41361-22040 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.20,ﾏｰｸ 04,T=1.18-1.22 |
2 | ||
| 41361-22140 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=0.95,ﾏｰｸ 14,T=0.93-0.97 |
2 | ||
| 41361-22160 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.15,ﾏｰｸ 16,T=1.13-1.17 |
2 | ||
| 41361-22020 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.00,ﾏｰｸ 02,T=0.98-1.02 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.10,ﾏｰｸ 03,T=1.08-1.12 |
2 | ||
| 41361-22150 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.05,ﾏｰｸ 15,T=1.03-1.07 |
2 | ||
| 41361-22040 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.20,ﾏｰｸ 04,T=1.18-1.22 |
2 | ||
| 41361-22140 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=0.95,ﾏｰｸ 14,T=0.93-0.97 |
2 | ||
| 41361-22160 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.15,ﾏｰｸ 16,T=1.13-1.17 |
2 | ||
| 41361-22020 |
AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ=1.00,ﾏｰｸ 02,T=0.98-1.02 |
2 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
