KT147V-TXKRS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8712)AT141,KT147..MTM

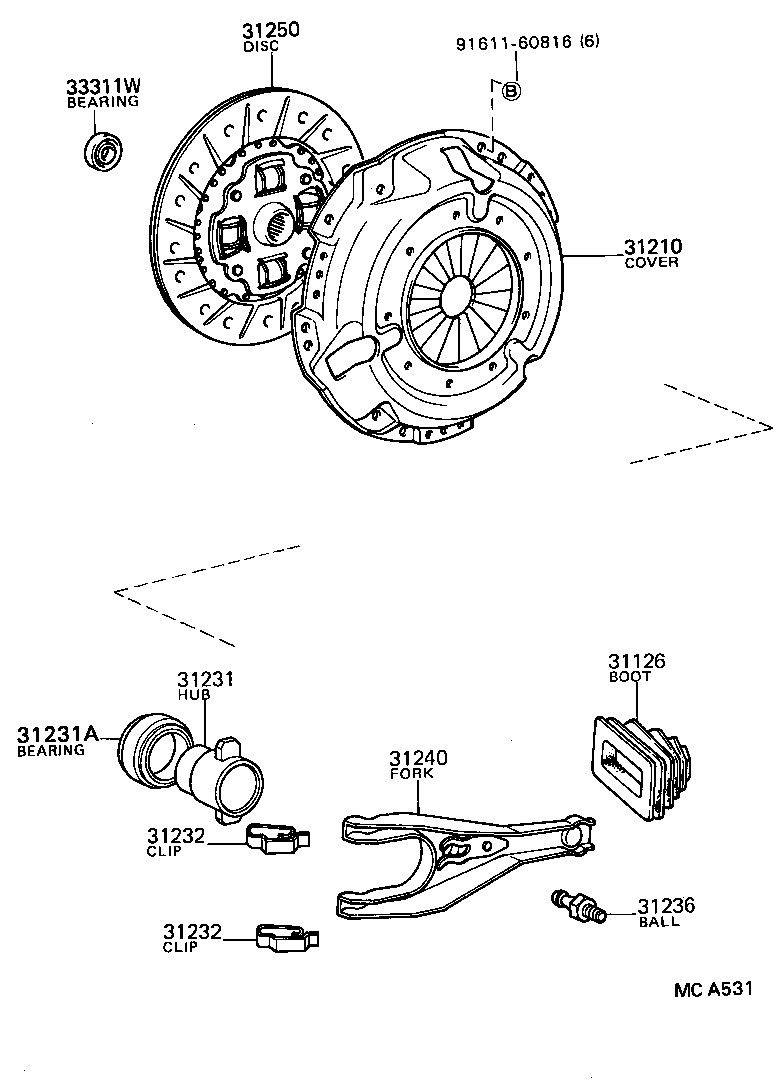

Click highlighted areas on diagram

diagram 31126 31210 31231 31231A 31232 31232 31236 31240 31250 33311W 9161160816
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

AT14#,CT14#,KT147,ST140,TT14#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-27010

KT147..4F

 1
31210-12100

KT147..4F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-12090

KT147

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31236 - BALL, RELEASE FORK
31236-30060

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20080

AT14#,KT147,TT14#..MTM..(DLX,GT,GX,STD,SX)

 1
31250 - DISC ASSY, CLUTCH
31250-12120

KT147..4F

 1
31250-12121

KT147..4F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

AT14#,KT147,TT14#..MTM

 1
Common parts
91611-60816
