KT147V-TXKRS (1983)
Toyota Corona
Production
Oct 1983
-
Dec 1987
Engine
5KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310-8712)5KJ

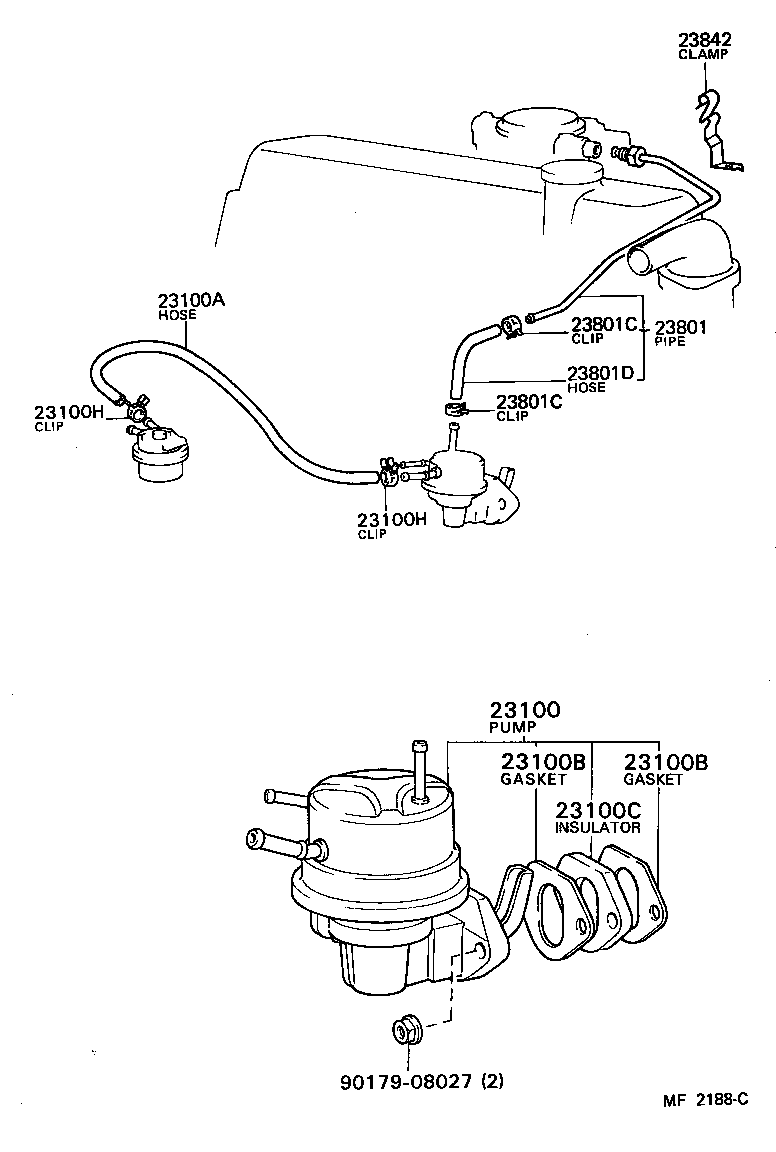

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19205 |
5KJ..KT147 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06030 |
5KJ..KT147 *H,L=280 |
1 | ||
| 95333-06030 |
5KJ..KT147 *H,L=280 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
5KJ..KT147 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
5KJ..KT147 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
5KJ..KT147 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
5KJ..KT147 MAIN |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
5KJ..KT147 MAIN |
4 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-24061 |
5KJ..KT147 |
1 | ||
| 23801-13120 |
5KJ..KT147 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
5KJ..KT147 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
5KJ..KT147 |
2 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 90447-12093 |
5KJ..KT147 長さ=160 |
1 | ||
| 95332-06010 |
5KJ..KT147 *H,L=60 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 90461-08528 |
5KJ..KT147 |
1 | ||
| 23841-13020 |
5KJ..KT147 |
1 | ||
| Common parts | ||||
| 90179-08027 | ||||
