KT147V-TXKRS (1983)
Toyota Corona
(8201-8712)12TJ,5KJ,3T#

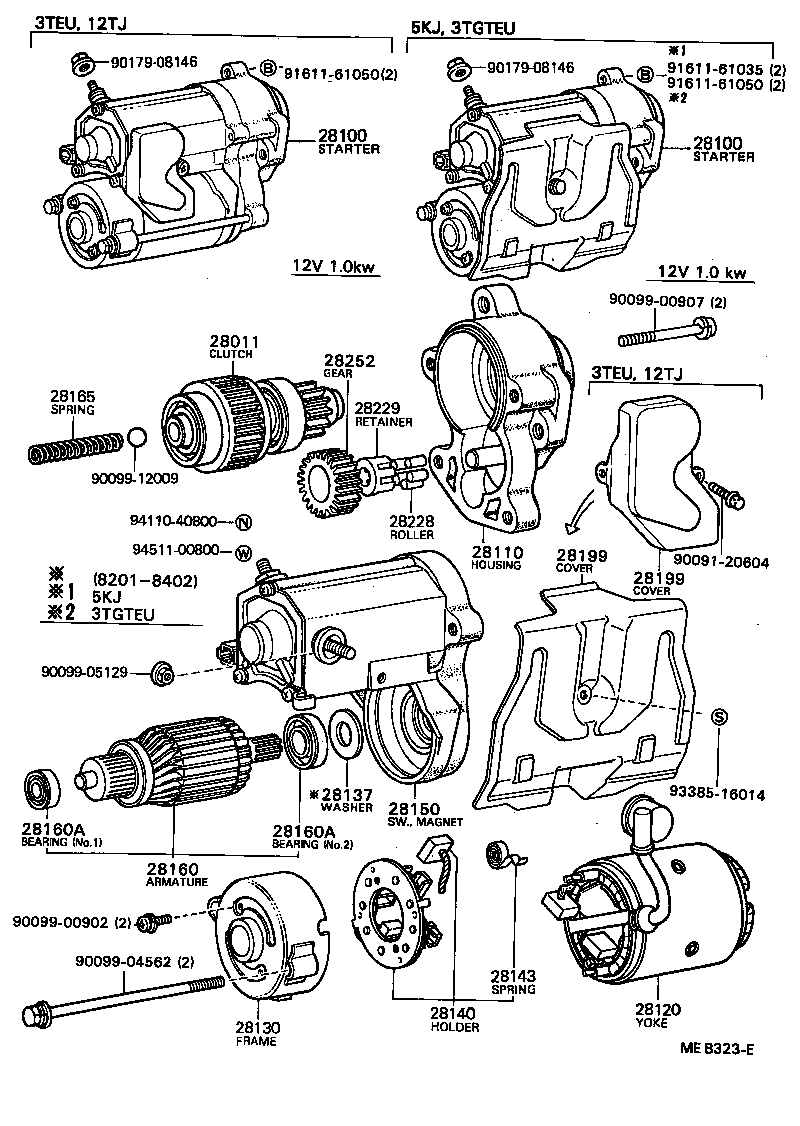

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13010 |
5KJ..KT147 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13010 |
5KJ..KT147 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-13010 |
5KJ..KT147 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-13010 |
4AGEU,5KJ..AT141,KT147 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-13011 |
4AGEU,5KJ..AT141,KT147 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-13011 |
5KJ..KT147 12V 1.0KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-13011 |
5KJ..KT147 12V 1.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
12TJ,18RGEU,3AU,4AGEU,1C,2C,5KJ,1SU,3T#,2YPU..AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#,2YPU..AT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 90091-20604 | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 91611-61050 | ||||
| 93385-16014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
