KT147V-TXKRS (1983)
Toyota Corona
Production
Oct 1983
-
Dec 1987
Engine
5KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310-8508)5KJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13110 |
5KJ..KT147 |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 23818-13030 |
5KJ..KT147 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14084 |
5KJ..KT147 |
1 | ||
| 17303G - HOSE, NO.3(FOR AIR PIPE) | ||||
| 90910-05161 |
5KJ..KT147 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-13030 |
5KJ..KT147 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-13010 |
5KJ..KT147 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
5KJ..KT147 NIPPONDENSO |
1 | ||
| 90917-11027 |
5KJ..KT147 AISIN |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
5KJ..KT147 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
5KJ..KT147 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
5KJ..KT147 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
5KJ..KT147 BLUE |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04006 |
5KJ..KT147 YELLOW |
1 | ||
| 23289B - JET, NO.3 | ||||
| 90925-04031 |
5KJ..KT147 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00115 | ||||
| 90464-00148 | ||||
| 90999-92002 | ||||

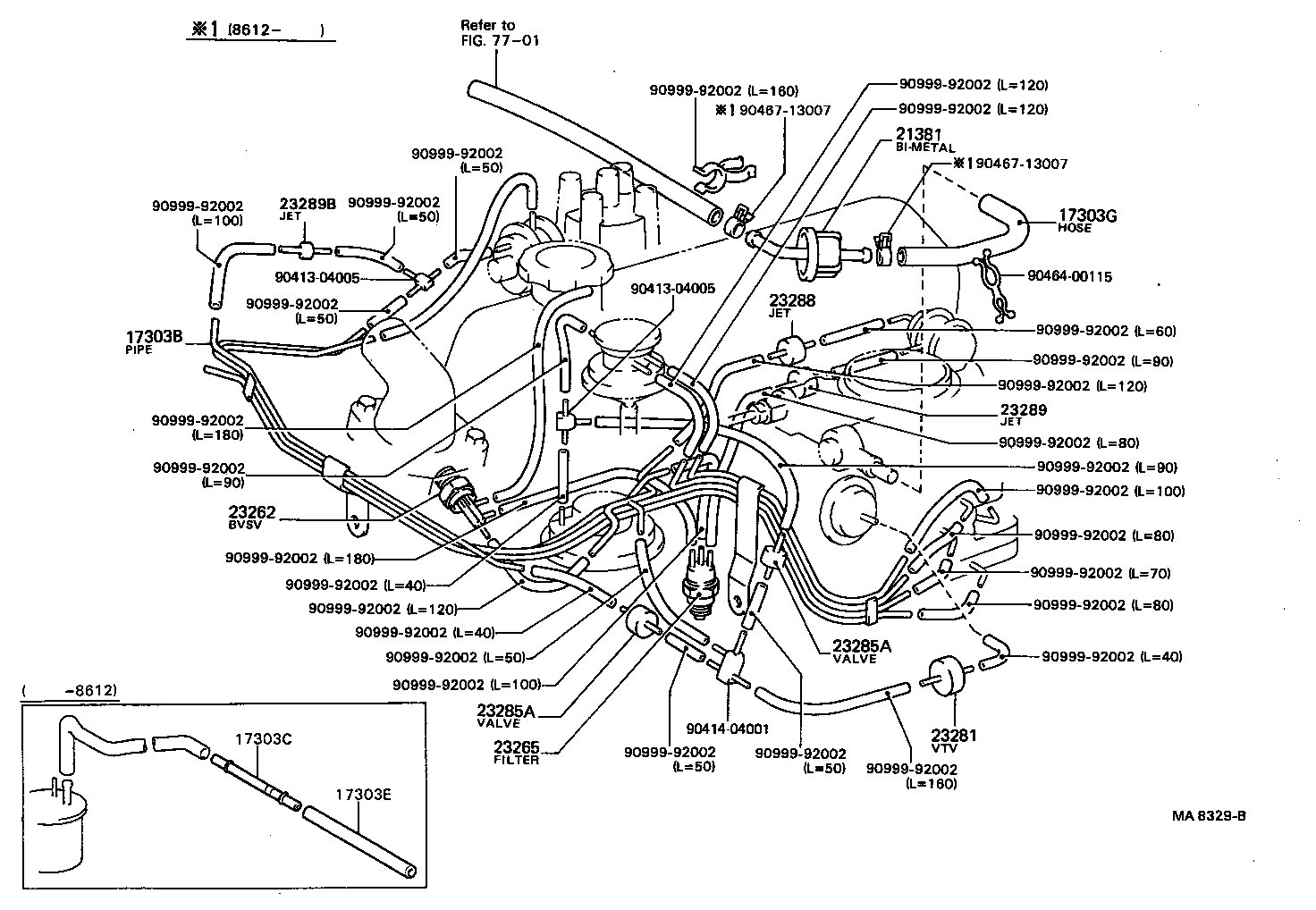

(8508-8712)5KJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-13110 |
5KJ..KT147 |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 23818-13030 |
5KJ..KT147 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14084 |
5KJ..KT147 |
1 | ||
| 17303G - HOSE, NO.3(FOR AIR PIPE) | ||||
| 90910-05161 |
5KJ..KT147 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-13030 |
5KJ..KT147 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-13010 |
5KJ..KT147 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
5KJ..KT147 NIPPONDENSO |
1 | ||
| 90917-11027 |
5KJ..KT147 AISIN |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
5KJ..KT147 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
5KJ..KT147 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
5KJ..KT147 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
5KJ..KT147 BLUE |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04006 |
5KJ..KT147 YELLOW |
1 | ||
| 23289B - JET, NO.3 | ||||
| 90925-04031 |
5KJ..KT147 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00115 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 7701 | ||||
