KT147V-TXKRS (1983)
Toyota Corona
ILLUST NO. 2 OF 2(8310- )5KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
5KJ..KT147 |
1 | ||
| 23322-54010 |
5KJ..KT147 |
1 | ||
| 23322-54010 |
5KJ..KT147 |
1 | ||
| 23322-54010 |
5KJ..KT147 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
5KJ..KT147 |
1 | ||
| 96711-19007 |
5KJ..KT147 |
1 | ||
| 96711-19007 |
5KJ..KT147 |
1 | ||
| 96711-19007 |
5KJ..KT147 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
5KJ..KT147 |
2 | ||
| 16444-35070 |
5KJ..KT147 |
2 | ||
| 16444-35070 |
5KJ..KT147 |
2 | ||
| 16444-35070 |
5KJ..KT147 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
5KJ..KT147 |
2 | ||
| 16445-35070 |
5KJ..KT147 |
2 | ||
| 16445-35070 |
5KJ..KT147 |
2 | ||
| 16445-35070 |
5KJ..KT147 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5KJ..KT147 |
1 | ||
| 16401-63010 |
5KJ..KT147 |
1 | ||
| 16401-63010 |
5KJ..KT147 |
1 | ||
| 16401-63010 |
5KJ..KT147 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-26330 |
5KJ..KT147 |
1 | ||
| 16442-26330 |
5KJ..KT147 |
1 | ||
| 16442-26330 |
5KJ..KT147 |
1 | ||
| 16442-26330 |
5KJ..KT147 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-26330 |
5KJ..KT147 |
1 | ||
| 16451-26330 |
5KJ..KT147 |
1 | ||
| 16451-26330 |
5KJ..KT147 |
1 | ||
| 16451-26330 |
5KJ..KT147 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-26330 |
5KJ..KT147 |
1 | ||
| 16452-26330 |
5KJ..KT147 |
1 | ||
| 16452-26330 |
5KJ..KT147 |
1 | ||
| 16452-26330 |
5KJ..KT147 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-26330 |
5KJ..KT147 |
1 | ||
| 16462-26330 |
5KJ..KT147 |
1 | ||
| 16462-26330 |
5KJ..KT147 |
1 | ||
| 16462-26330 |
5KJ..KT147 |
1 | ||

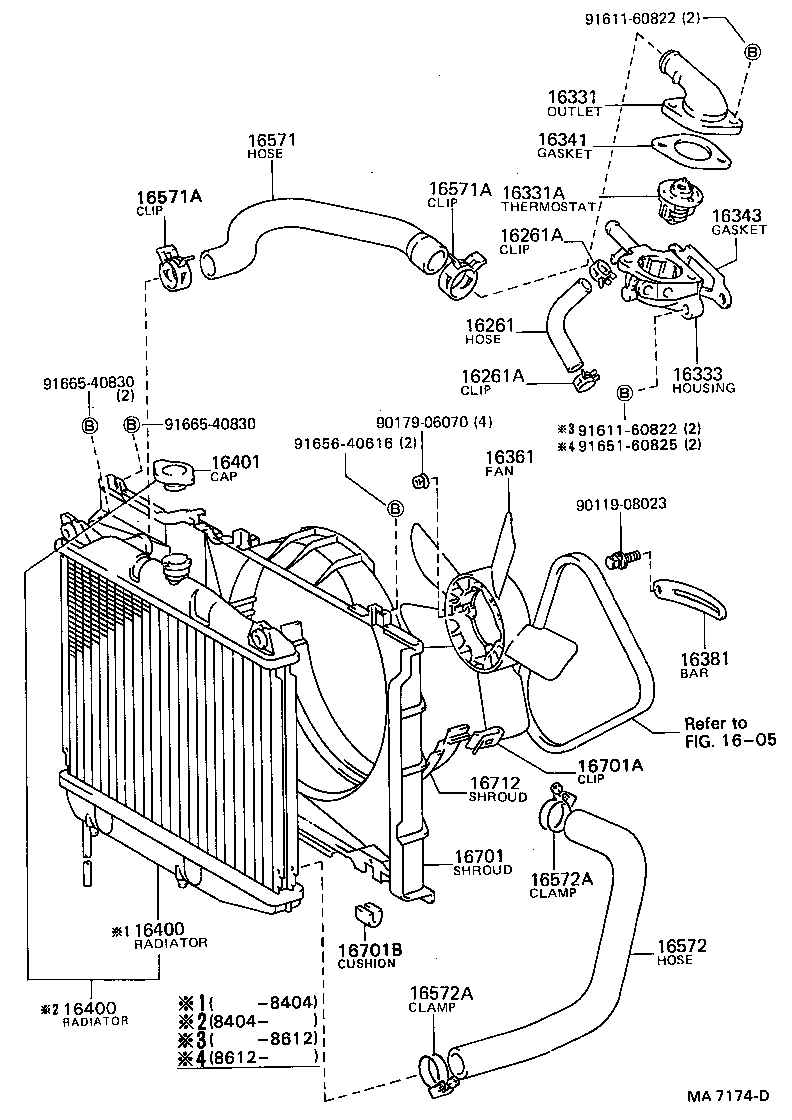

ILLUST NO. 1 OF 2(8310- )5KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13010 |
5KJ..KT147 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
5KJ..KT147 |
2 | ||
| 90467-13128 |
5KJ..KT147 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
5KJ..KT147 |
2 | ||
| 90467-13128 |
5KJ..KT147 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-22031 |
5KJ..KT147 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13080 |
5KJ..KT147 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13011 |
5KJ..KT147 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22011 |
5KJ..KT147 |
1 | ||
| 16361 - FAN | ||||
| 16361-13060 |
5KJ..KT147 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
5KJ..KT147 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-13310 |
5KJ..KT147..4F W/O CAP |
1 | ||
| 16400-13320 |
5KJ..KT147..4F W/CAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5KJ..KT147 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-13110 |
5KJ..KT147 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
5KJ..KT147 RADIATOR SIDE |
1 | ||
| 90467-33002 |
5KJ..KT147 RADIATOR SIDE |
1 | ||
| 90467-37001 |
5KJ..KT147 WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
5KJ..KT147 RADIATOR SIDE |
1 | ||
| 90467-33002 |
5KJ..KT147 RADIATOR SIDE |
1 | ||
| 90467-37001 |
5KJ..KT147 WATER OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-13140 |
5KJ..KT147 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
5KJ..KT147 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
5KJ..KT147 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-13210 |
5KJ..KT147 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5KJ..KT147 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
5KJ..KT147 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-13070 |
5KJ..KT147 |
1 | ||
| Common parts | ||||
| 90119-08023 | ||||
| 90179-06070 | ||||
| 91611-60822 | ||||
| 91651-60825 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
