KT147V-TXKDS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)AT140,CT14#,KT147,RT141,ST140,TT147,YT140 ; (8612-8712)AT140,CT147,KT147

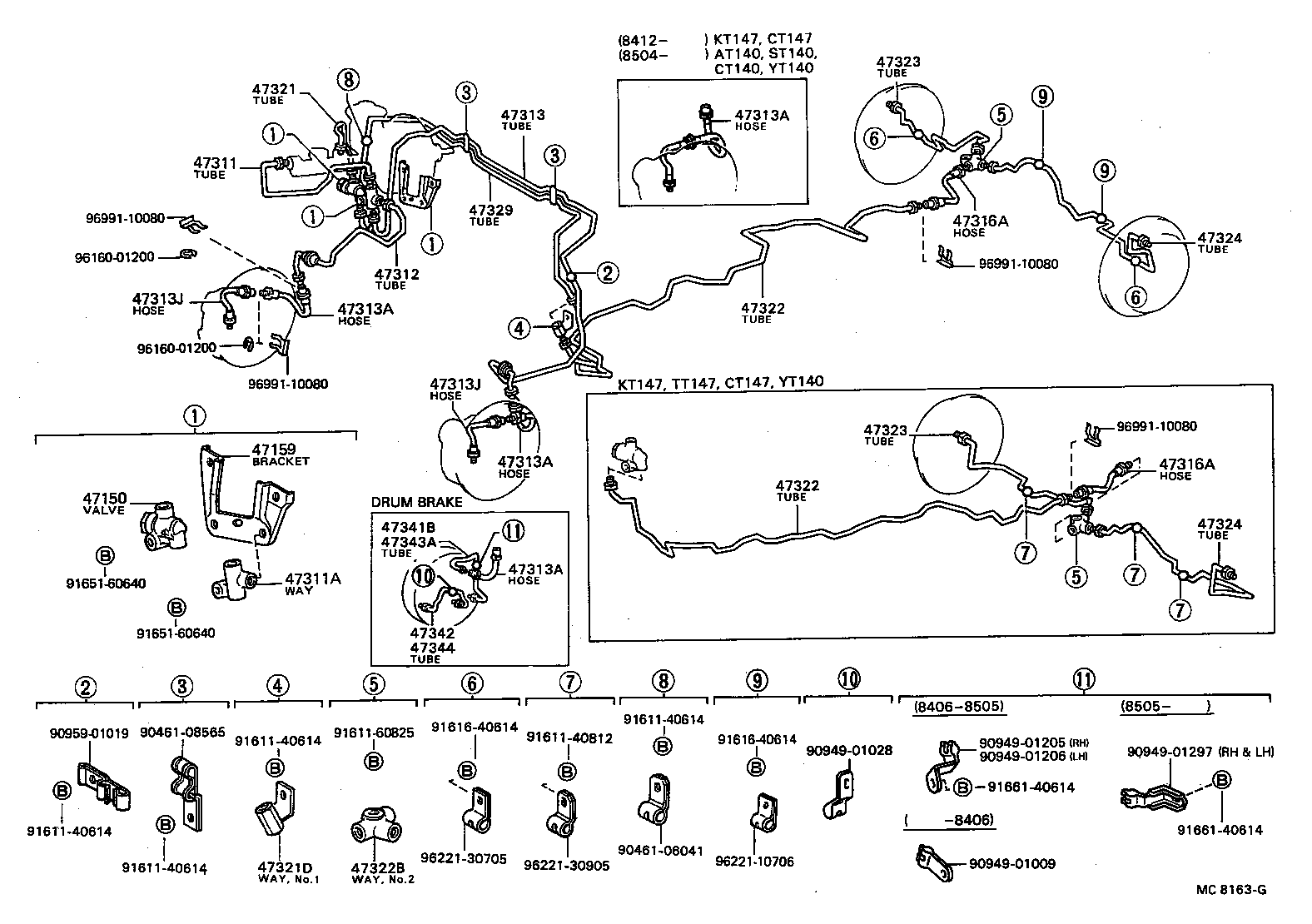

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313A 47313A 47313J 47313J 47316A 47316A 47321 47321D 47322 47322 47322B 47323 47323 47324 47324 47329 47341B 47342 47343A 47344 9046106041 9046108565 9094901009 9094901028 9094901205 9094901206 9094901297 9095901019 9161140614 9161140614 9161140614 9161140614 9161140812 9161160825 9161640614 9161640614 9165160640 9165160640 9166140614 9166140614 9616001200 9616001200 9622110706 9622130705 9622130905 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14020

AT140,CT14#,KT147,ST140,TT147,YT140

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

AT140,CT147,KT147,ST140

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AT14#,CT14#,KT147,RT141,ST140,TT147

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20180

AT14#,CT14#,KT147,RT141,ST140,TT147

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02474

CT147,KT147,YT140

FR DISC BRAKE

 2
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02474

CT147,KT147,YT140

FR DISC BRAKE

 2
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02474

CT147,KT147,YT140

FR DISC BRAKE

 2
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02474

CT147,KT147,YT140

FR DISC BRAKE

 2
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02474

AT14#,CT14#,KT147,ST140,TT142,YT140

FR DISK BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33955

CT147,KT147,TT147

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33955

CT147,KT147,TT147

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

AT140,KT147,ST140,YT140

 1
47321-14090

AT140,KT147,ST140

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14091

KT147,TT147

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14091

KT147,TT147

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

AT140,CT14#,KT147,ST140,TT147,YT140

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-21020

CT147,KT147,TT147,YT140

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-21020

CT147,KT147,TT147,YT140

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-21011

CT147,KT147,TT147,YT140

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-21011

CT147,KT147,TT147,YT140

 1
Common parts
90461-06041
90461-08565
90949-01009
90949-01028
90949-01205
90949-01206
90949-01297
90959-01019
91611-40614
91611-40812
91611-60825
91616-40614
91651-60640
91661-40614
96160-01200
96221-10706
96221-30705
96221-30905
96991-10080
