KT147V-TXHNS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)KT147,TT147..GX ; (8209- )YT140..3FC,5F..DLX

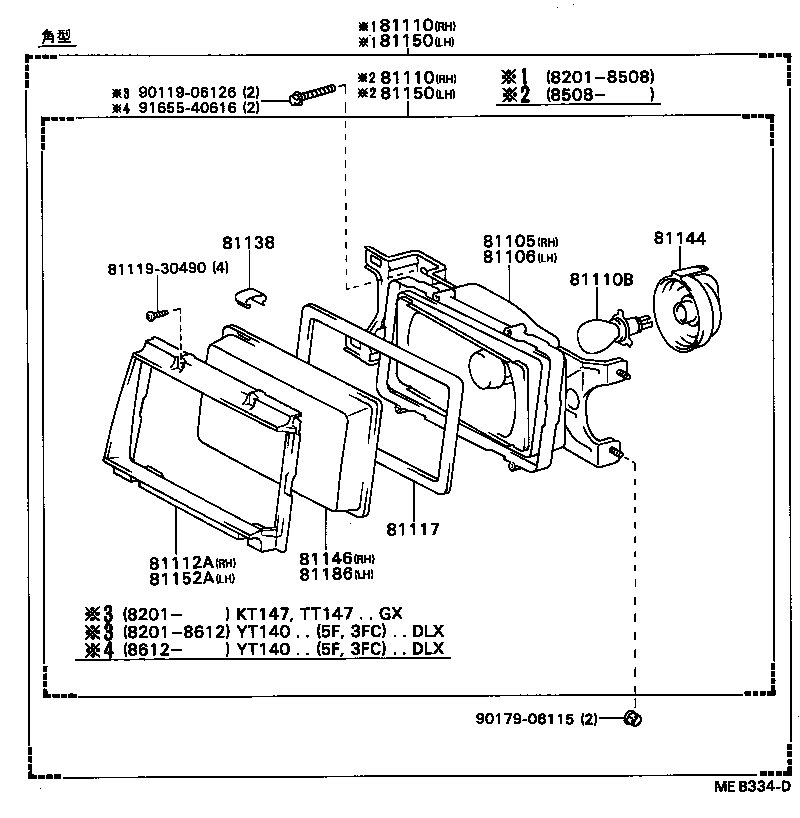

Click highlighted areas on diagram

diagram 81105 81106 81110 81110 81110B 81112A 81117 8111930490 81138 81144 81146 81150 81150 81152A 81186 9011906126 9017906115 9165540616
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81135-20600

KT147,TT147..GX

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81175-20560

KT147,TT147..GX

 1
81110 - HEADLAMP ASSY, RH
81110-80190

KT147,TT147..GX

 1
81110-20601

KT147..GX

 1
81110 - HEADLAMP ASSY, RH
81110-80190

KT147,TT147..GX

 1
81110-20601

KT147..GX

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

KT147,TT147..GX

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81112A - RIM, HEADLAMP, RH
81112-20600

KT147,TT147..GX

 1
81112-20601

KT147..GX

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

KT147,TT147..GX

 2
81138 - SPRING, HEADLAMP
81138-20550

AT14#,RT141,ST140,TT142;CT140,KT147,TT147..EXS,GX

 16
81144 - COVER, HEADLAMP, NO.1
81139-30490

AT14#,RT141,ST140,TT142;CT140,KT147,TT147..EXS,GX

 2
81146 - LENS, HEADLAMP, RH
81146-30490

KT147,TT147..GX

 1
81150 - HEADLAMP ASSY, LH
81150-80187

KT147,TT147..GX

 1
81150-20561

KT147..GX

 1
81150 - HEADLAMP ASSY, LH
81150-80187

KT147,TT147..GX

 1
81150-20561

KT147..GX

 1
81152A - RIM, HEADLAMP, LH
81152-20560

KT147,TT147..GX

 1
81152-20561

KT147..GX

 1
81186 - LENS, HEADLAMP, LH
81186-30600

KT147,TT147..GX

 1
Common parts
81119-30490
90119-06126
90179-06115
91655-40616
