KT147V-TXHNS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8712)KT147..3FC

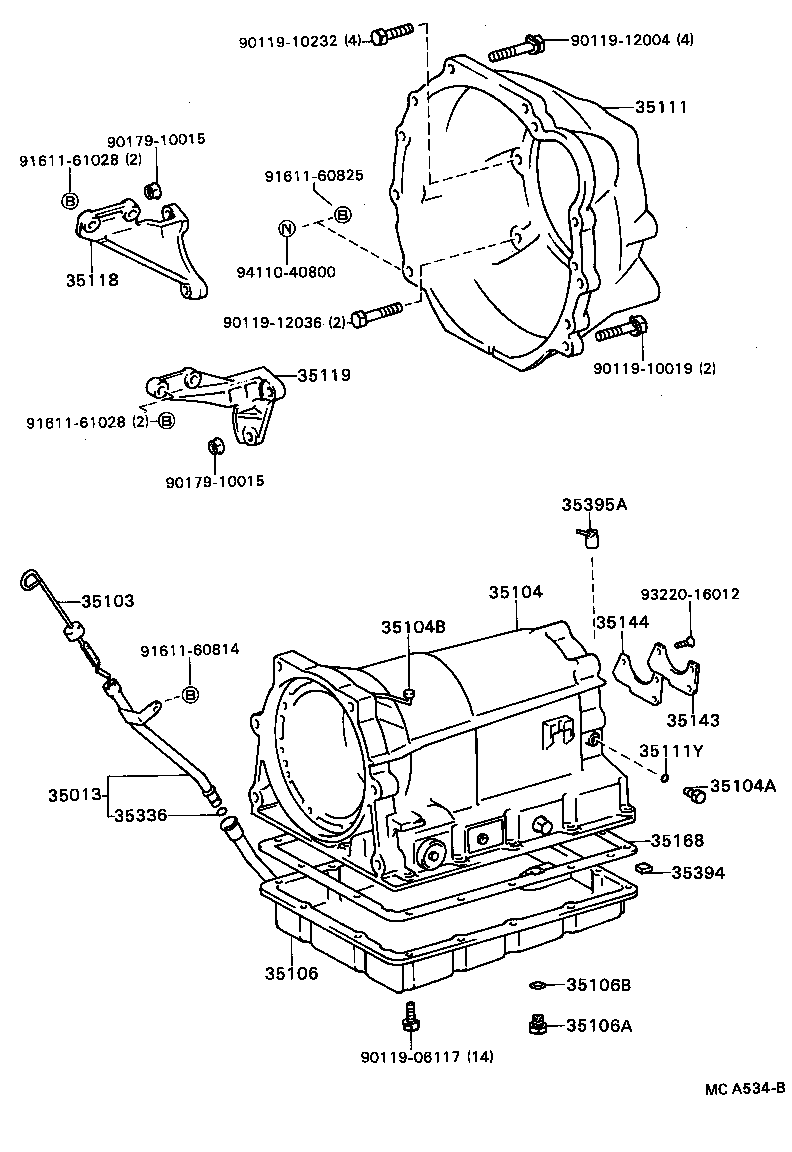

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111Y 35118 35119 35143 35144 35168 35336 35394 35395A 9011906117 9011910019 9011910232 9011912004 9011912036 9017910015 9017910015 9161160814 9161160825 9161161028 9161161028 9322016012 9411040800
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12110

KT147..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22025

AT140,KT147,TT147,YT140..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22020

KT147,TT147,YT140..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-12080

KT147..3FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-12080

KT147..3FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-12050

KT147..3FC

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
Common parts
90119-06117
90119-10019
90119-10232
90119-12004
90119-12036
90179-10015
91611-60814
91611-60825
91611-61028
93220-16012
94110-40800
