KT147V-TXHNS (1983)

Toyota Corona

Production Oct 1983 - Dec 1987
Engine 5KJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,3T#

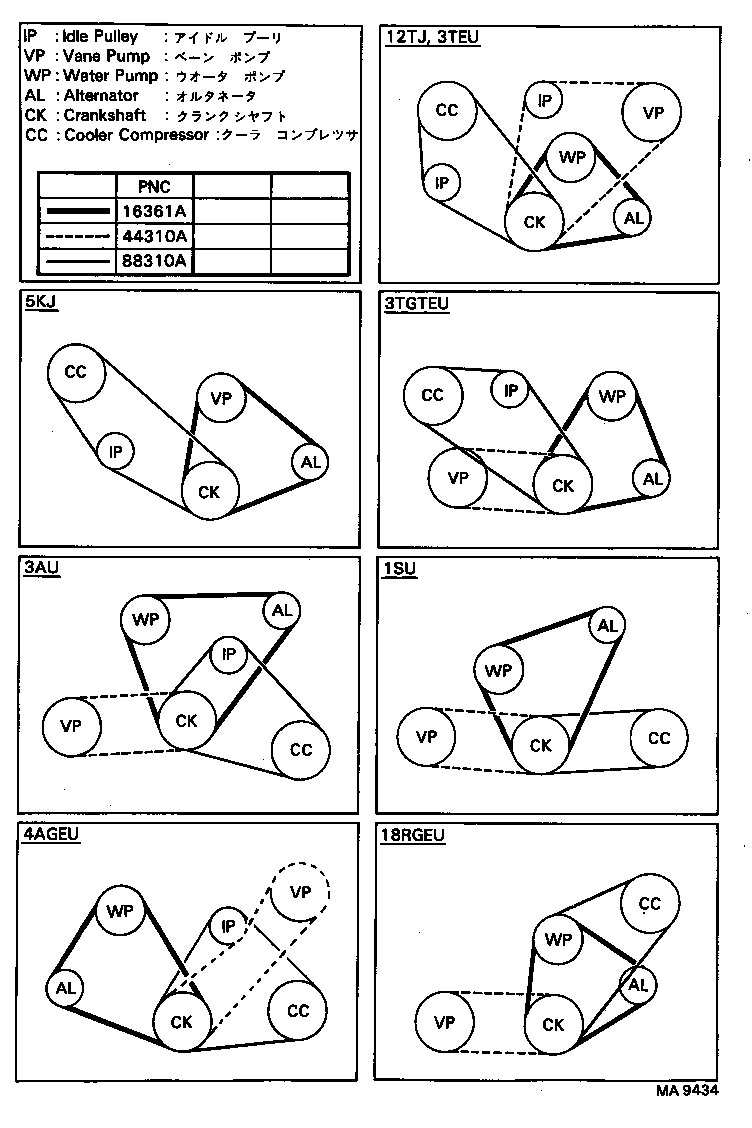

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

12TJ,5KJ,3TEU..KT147,TT14#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00930

KT147

長さ=930

 1
