KT147V-TUKDS (1983)

Toyota Corona

Production Oct 1983 - Aug 1985
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)02S

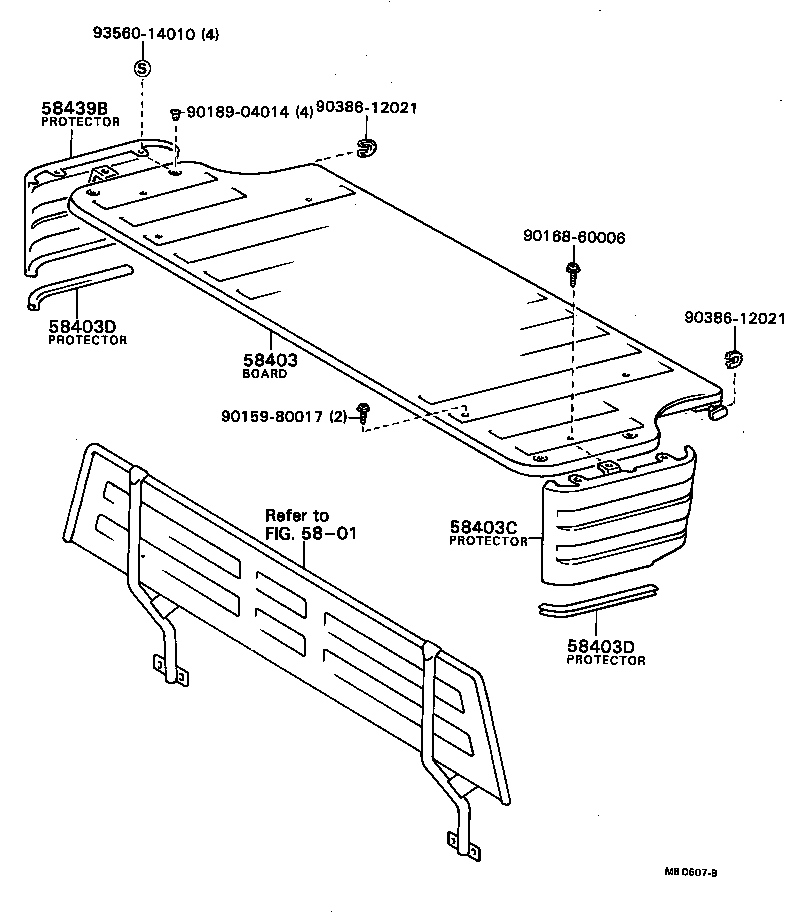

Click highlighted areas on diagram

diagram 5801 58403 58403C 58403D 58403D 58439B 9015980017 9016860006 9018904014 9038612021 9038612021 9356014010
Part # Description Qty Price
58403 - BOARD SUB-ASSY, DECK
58410-91255

KT147,TT147..02S

 1
58403C - PROTECTOR, DECK BOARD, NO.2
58409-91255

KT147,TT147..02S

 1
58403D - PROTECTOR, DECK BOARD, NO.3
58479-91255

KT147,TT147..02S

 4
58403D - PROTECTOR, DECK BOARD, NO.3
58479-91255

KT147,TT147..02S

 4
58439B - PROTECTOR, DECK BOARD, NO.1
58408-91255

KT147,TT147..02S

 1
Common parts
90159-80017
90168-60006
90189-04014
90386-12021
93560-14010
Linked diagrams
5801
