KT147V-TUKDS (1983)

Toyota Corona

Production Oct 1983 - Aug 1985
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)5KJ

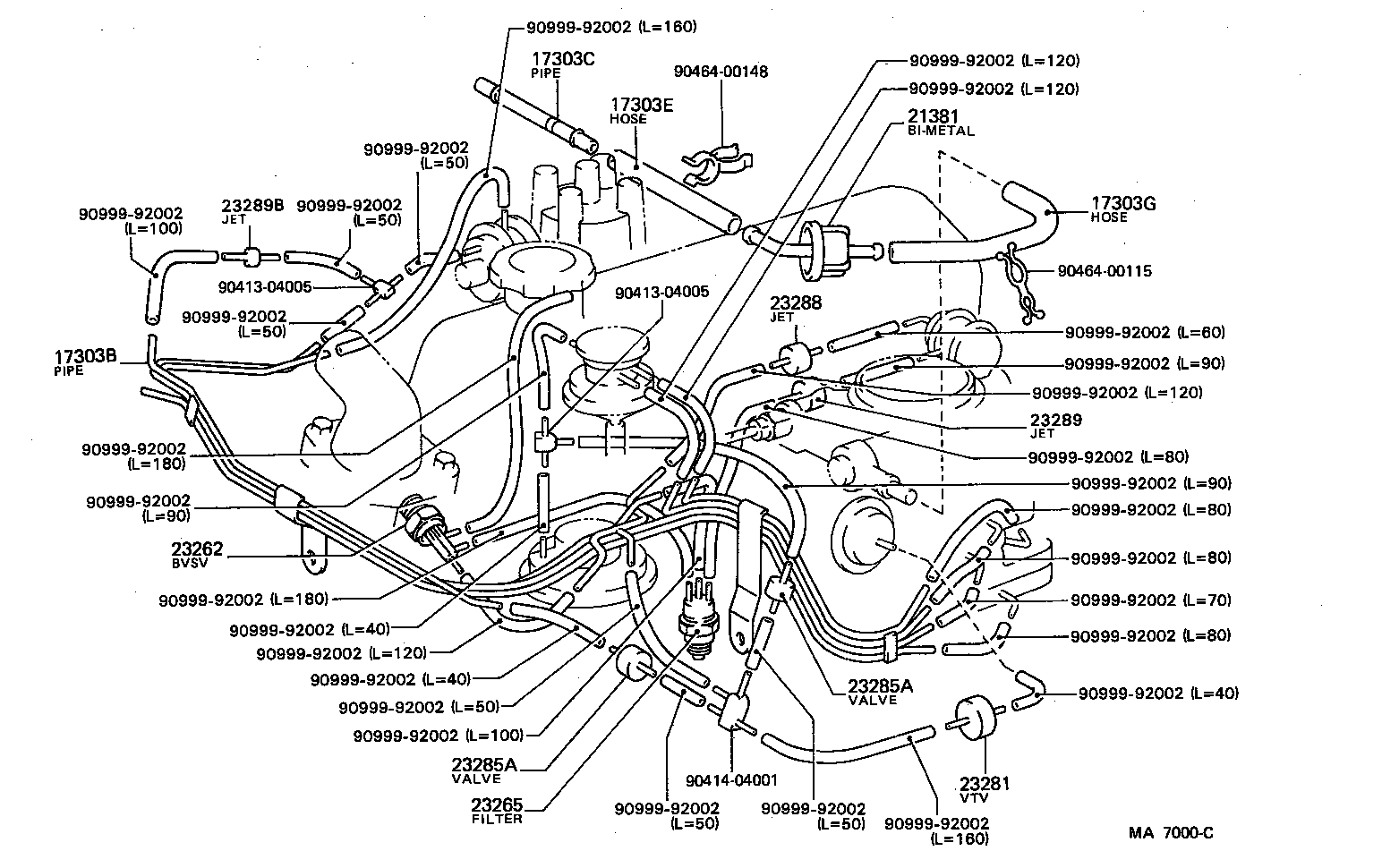

Click highlighted areas on diagram

diagram 17303B 17303C 17303E 17303G 21381 23262 23265 23281 23285A 23285A 23288 23289 23289B 9041304005 9041304005 9041404001 9046400115 9046400148 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11024

5KJ..KT147

NIPPONDENSO

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

5KJ..KT147

 1
23285A - VALVE, CHECK, NO.1
90917-10049

5KJ..KT147

 2
23285A - VALVE, CHECK, NO.1
90917-10049

5KJ..KT147

 2
Common parts
90413-04005
90414-04001
90464-00115
90464-00148
90999-92002
