ET176V-AXKRS (1987)

Toyota Corona

Production Dec 1987 - Nov 1992
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

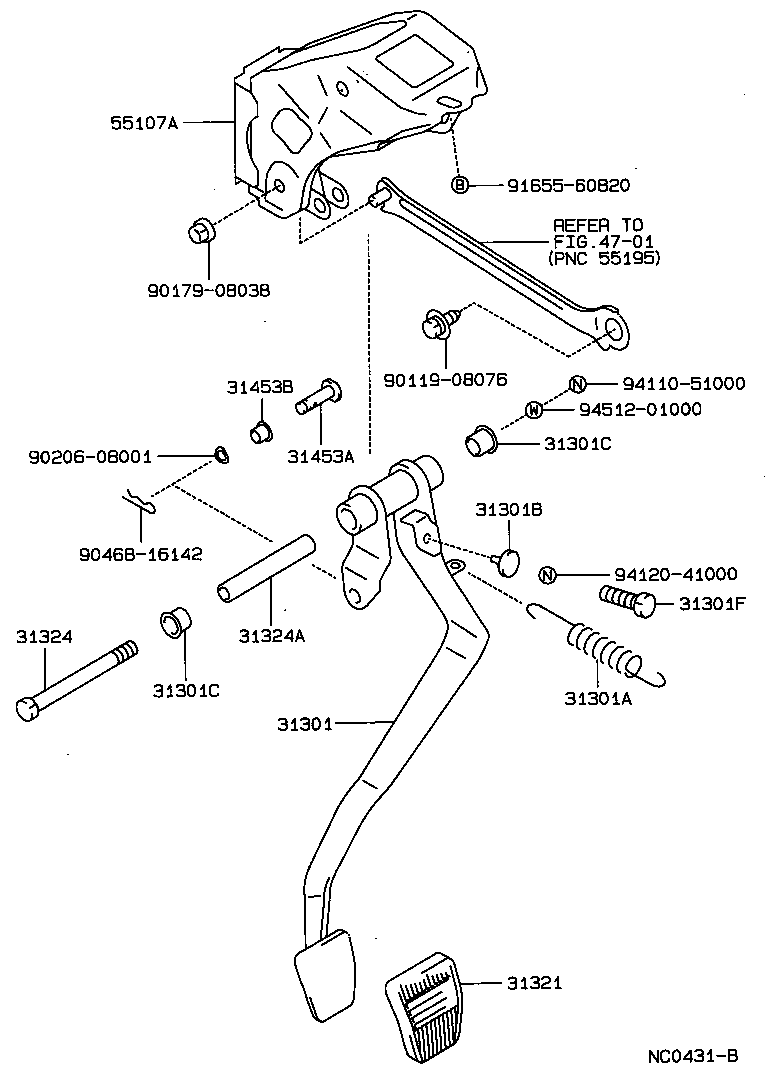

ILLUST NO. 1 OF 2(8712- )AT17#,CT17#,ET176,ST170..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 4701 55107A 9011908076 9017908038 9020608001 9046816142 9165560820 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20260

AT170,CT17#,ET176,ST170..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14029

AT17#,CT17#,ET176,ST170..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

AT17#,CT17#,ET176,ST170..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT17#,CT17#,ET176,ST17#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT17#,CT17#,ET176,ST17#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT17#,CT17#,ET176,ST17#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AT17#,CT17#,ET176,ST17#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10100

AT17#,CT17#,ET176,ST17#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10002

AT17#,CT17#,ET176,ST17#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT17#,CT17#,ET176,ST17#..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT17#,CT17#,ET176,ST17#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20240

AT17#,CT17#,ET176,ST170..MTM

 1
Common parts
90119-08076
90179-08038
90206-08001
90468-16142
91655-60820
94110-51000
94120-41000
94512-01000
Linked diagrams
4701

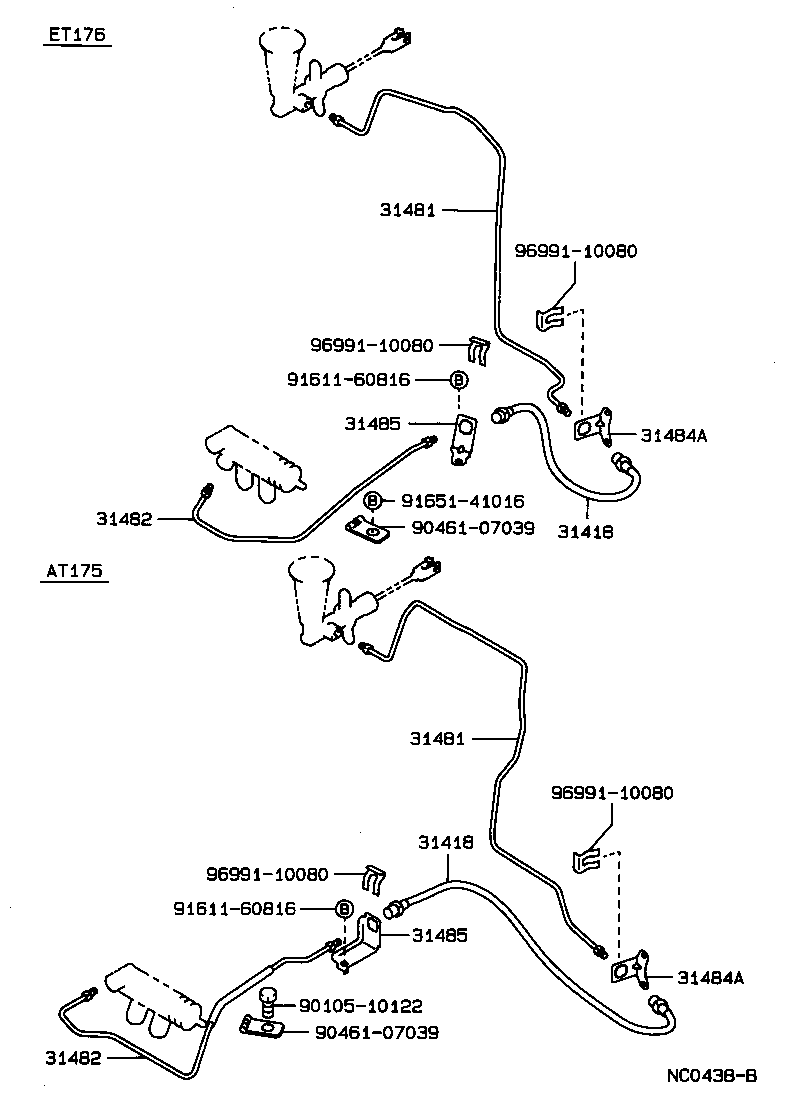

ILLUST NO. 2 OF 2(8712- )AT175,ET176..MTM

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31482 31482 31484A 31484A 31485 31485 9010510122 9046107039 9046107039 9161160816 9161160816 9165141016 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01044

AT170,ET176..MTM

 1
31418 - HOSE, CLUTCH
90931-01044

AT170,ET176..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20330

AT170,ET176,ST17#..MTM

 1
31481-20260

AT170,ET176,ST17#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20330

AT170,ET176,ST17#..MTM

 1
31481-20260

AT170,ET176,ST17#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12110

ET176..4F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12110

ET176..4F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20240

AT17#,CT17#,ET176,ST17#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20240

AT17#,CT17#,ET176,ST17#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12080

AT170,ET176..MTM

 1
31484-12140

AT170,ET176..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12080

AT170,ET176..MTM

 1
31484-12140

AT170,ET176..MTM

 1
Common parts
90105-10122
90461-07039
91611-60816
91651-41016
96991-10080
