ET176V-AXKDS (1987)
Toyota Corona
Production
Dec 1987
-
Nov 1992
Engine
3E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )3E

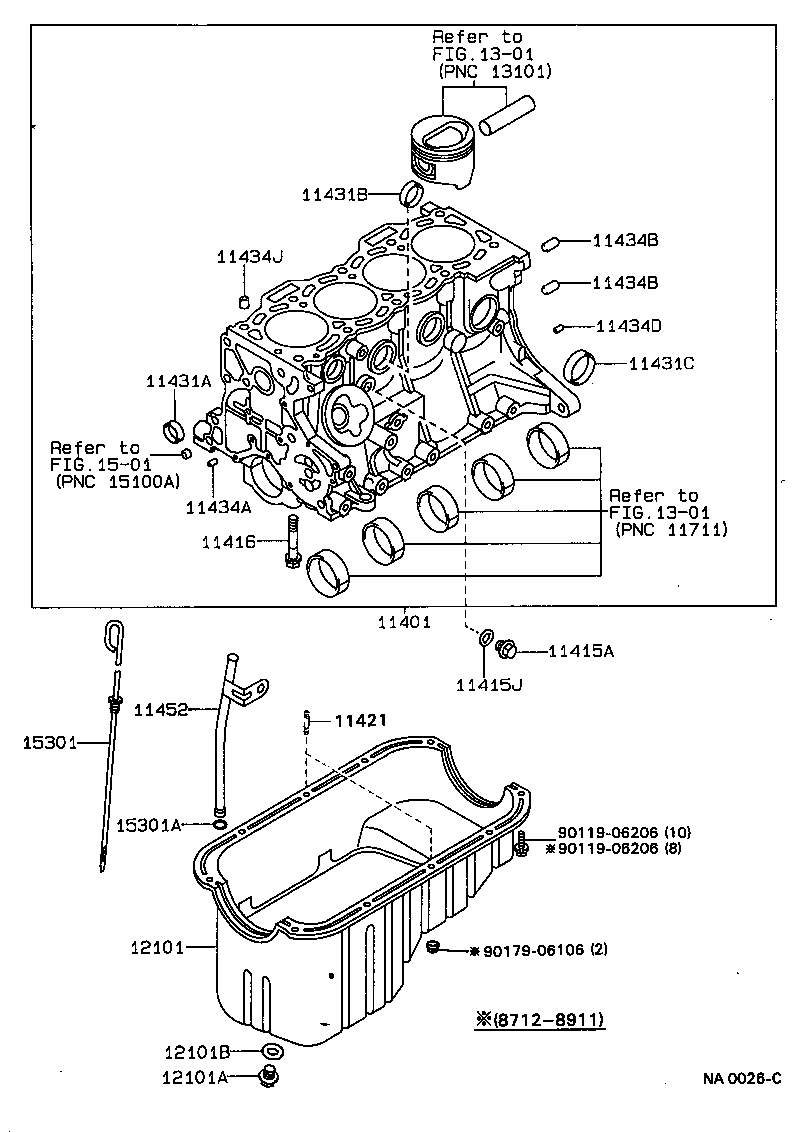

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19375 |
3E..ET176 |
1 | ||
| 11401-19376 |
3E..ET176 |
1 | ||
| 11401-19377 |
3E..ET176 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90341-12026 |
3E..ET176 |
1 | ||
| 90341-12012 |
3E..ET176 |
1 | ||
| 11415J - GASKET(FOR DRAIN COCK) | ||||
| 90430-13002 |
3E..ET176 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10007 |
3E..ET176 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06014 |
3E..ET176 |
2 | ||
| 90116-06014 |
3E..ET176 *54 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
3E..ET176 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
3E..ET176 |
6 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
3E..ET176 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-06068 |
3E..ET176 長さ=11,外径=6 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
3E..ET176 長さ=20,外径=10 |
1 | ||
| 90250-06068 |
3E..ET176 長さ=11,外径=6 |
1 | ||
| 90253-15003 |
3E..ET176 長さ=17,外径=15 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10017 |
3E..ET176 長さ=20,外径=10 |
1 | ||
| 90250-06068 |
3E..ET176 長さ=11,外径=6 |
1 | ||
| 90253-15003 |
3E..ET176 長さ=17,外径=15 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
3E..ET176 長さ=11,外径=6 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-12001 |
3E..ET176 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-10010 |
3E..ET176 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-11010 |
3E..ET176 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
3E..ET176 |
1 | ||
| 90341-12026 |
3E..ET176 |
1 | ||
| 90341-12026 |
3E..ET176 |
1 | ||
| 90341-12012 |
3E..ET176 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12019 |
3E..ET176 |
1 | ||
| 90430-12019 |
3E..ET176..4F |
1 | ||
| 90430-12019 |
3E..ET176 |
1 | ||
| 90430-12019 |
3E..ET176 |
1 | ||
| 90430-12019 |
3E..ET176 |
1 | ||
| 90430-12027 |
3E..ET176 |
1 | ||
| 90430-12027 |
3E..ET176 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-11020 |
3E..ET176 |
1 | ||
| 15301-11021 |
3E..ET176 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96711-19010 |
3E..ET176 |
1 | ||
| Common parts | ||||
| 90119-06206 | ||||
| 90179-06106 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
