ET176V-AXHNS (1987)

Toyota Corona

Production Dec 1987 - Nov 1992
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT176,ET176

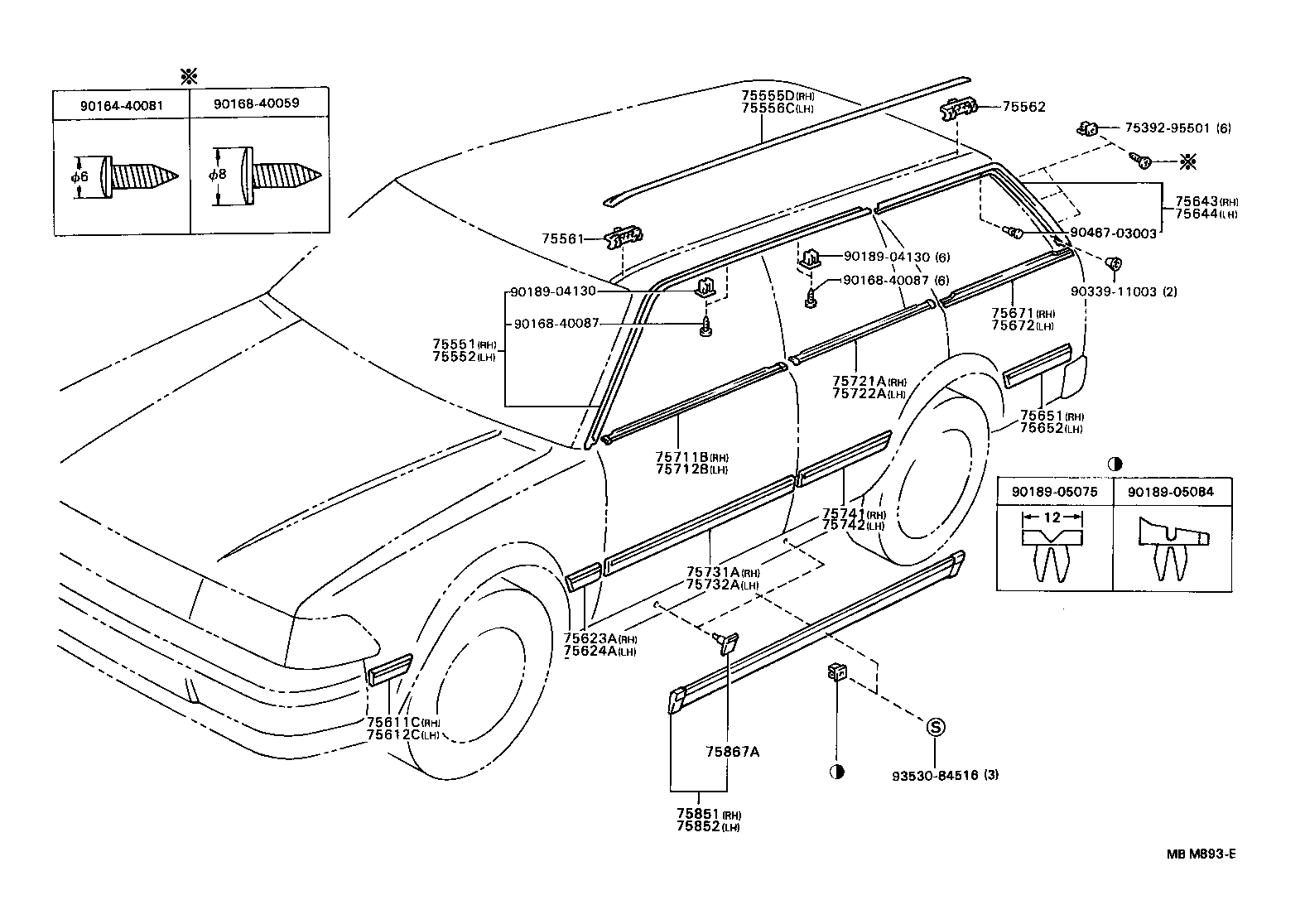

Click highlighted areas on diagram

diagram 7539295501 75551 75552 75555D 75556C 75561 75562 75611C 75612C 75623A 75624A 75643 75644 75651 75652 75671 75672 75711B 75712B 75721A 75722A 75731A 75732A 75741 75742 75851 75852 75867A 9016440081 9016840059 9016840087 9016840087 9018904130 9018904130 9018905075 9018905084 9033911003 9046703003 9353084516
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-95505

CT176,ET176

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-95505

CT176,ET176

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-95500

CT176,ET176

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-95500

CT176,ET176

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-20050

AT17#,CT17#,ET176,ST17#

ﾌﾞﾙｰ

 1
75561-20070

AT17#,CT17#,ET176,ST17#

GRAY

 1
75561-20040

AT17#,CT17#,ET176,ST17#

ﾌﾞﾗｳﾝ

 2
75561-20060

AT17#,CT17#,ET176,ST17#

GREEN

 1
75561-20080

AT17#,CT17#,ET176,ST17#

ﾚｯﾄﾞ

 1
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75562-20050

AT17#,CT17#,ET176,ST17#

VIOLET

 1
75562-20030

AT17#,CT17#,ET176,ST17#

ﾌﾞﾗｯｸ

 1
75562-20060

AT17#,CT17#,ET176,ST17#

ORANGE

 1
75562-20040

AT17#,CT17#,ET176,ST17#

ｲｴﾛｰ

 1
75562-20020

CT176,ET176

NATURAL

 24
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-20520

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75611-20451

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-20490

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75612-20421

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20240

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75623-20151

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20240

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75624-20151

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75643-95502

CT176,ET176

 1
75643-95500

CT176,ET176

 1
75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75644-95500

CT176,ET176

 1
75644-95502

CT176,ET176

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-95508

ET176..GX

 1
75651-95506

ET176..GX

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-95506

ET176..GX

 1
75652-95508

ET176..GX

 1
75671 - MOULDING, QUARTER BELT, RH
75671-95501

ET176..GX

 1
75672 - MOULDING, QUARTER BELT, LH
75672-95501

ET176..GX

 1
75711B - MOULDING, FRONT DOOR BELT, RH
75711-20230

ET176..DX,GX;AT17#,CT17#,ST17#

 1
75712B - MOULDING, FRONT DOOR BELT, LH
75712-20160

ET176..DX,GX;AT17#,CT17#,ST17#

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-20180

ET176..DX,GX;AT17#,CT17#,ST17#..SED,VAN

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-20180

ET176..DX,GX;AT17#,CT17#,ST17#..SED,VAN

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20480

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75731-20391

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20391

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75732-20480

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20580

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75741-20511

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20560

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
75742-20491

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29215

AT170,CT170,ET176,ST170..GX,MX,Z

 1
75850-29216

AT175..GX,SELS;AT170,CT170,ET176,ST170..GX,MX,SELS,Z

 1
75850-29217

AT17#,CT170,ET176,ST170..GX,SELS,Z

 1
75852 - MOULDING, ROCKER PANEL, LH
75850-29215

AT170,CT170,ET176,ST170..GX,MX,Z

 1
75850-29216

AT175..GX,SELS;AT170,CT170,ET176,ST170..GX,MX,SELS,Z

 1
75850-29217

AT17#,CT170,ET176,ST170..GX,SELS,Z

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-20030

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 4
Common parts
75392-95501
90164-40081
90168-40059
90168-40087
90189-04130
90189-05075
90189-05084
90339-11003
90467-03003
93530-84516
