ET176V-AXHNS (1987)

Toyota Corona

Production Dec 1987 - Nov 1992
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT176,ET176

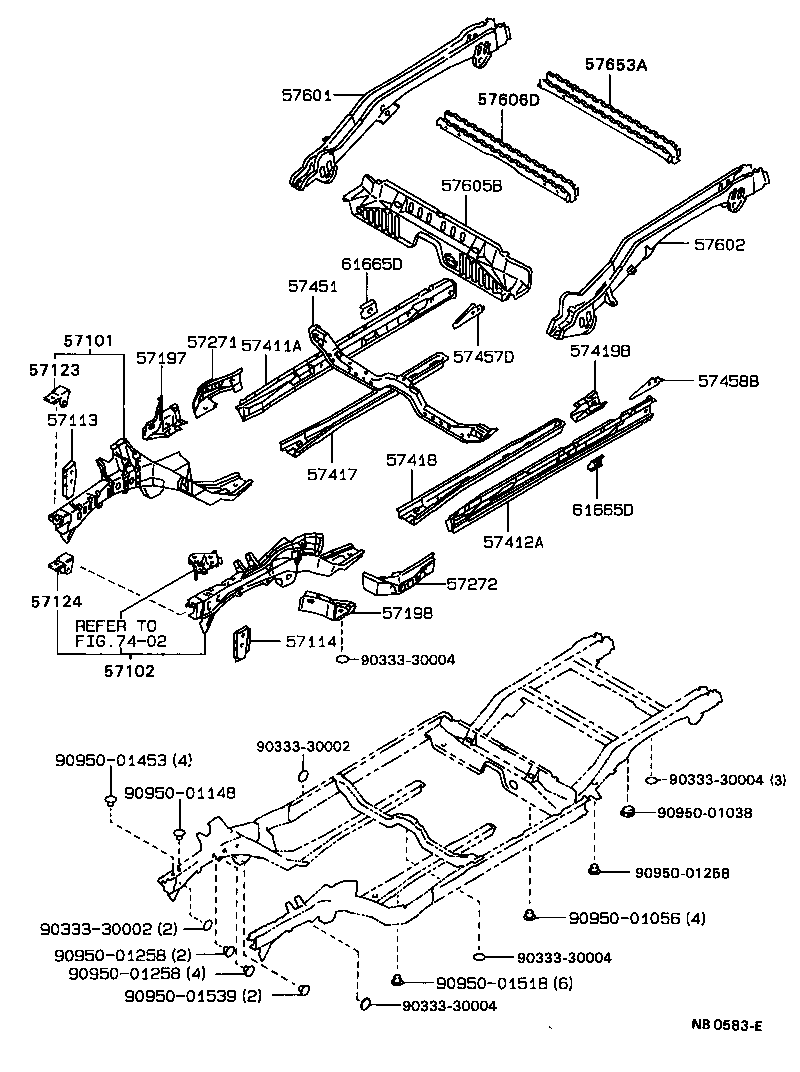

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57123 57124 57197 57198 57271 57272 57411A 57412A 57417 57418 57419B 57451 57457D 57458B 57601 57602 57605B 57606D 57653A 61665D 61665D 7402 9033330002 9033330002 9033330004 9033330004 9033330004 9033330004 9095001038 9095001056 9095001148 9095001258 9095001258 9095001258 9095001453 9095001518 9095001539
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20907

CT176,ET176

 1
57101-20907

CT17#,ET176

 1
57101-20907

CT17#,ET176

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20902

ET176

 1
57102-20902

AT170,ET176

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-20110

AT17#,CT17#,ET176,ST17#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-20090

AT17#,CT17#,ET176,ST17#

 1
57123 - SUPPORT, FRONT SIDE MEMBER, RH
57123-20030

AT17#,CT17#,ET176,ST17#

 1
57123-20030

AT17#,CT17#,ET176,ST17#

 1
57124 - SUPPORT, FRONT SIDE MEMBER, LH
57124-20030

AT17#,CT17#,ET176,ST17#

 1
57124-20030

AT17#,CT17#,ET176,ST17#

 1
57197 - BOX, TORQUE, FRONT RH
57197-20030

AT17#,CT17#,ET176,ST17#

 1
57197-20030

AT170,CT17#,ET176,ST17#

 1
57198 - BOX, TORQUE, FRONT LH
57198-20030

AT170,CT17#,ET176,ST17#

 1
57198-20030

AT17#,CT17#,ET176,ST17#

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-20020

AT170,CT17#,ET176,ST17#

 1
57271-20020

AT17#,CT17#,ET176,ST17#

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-20020

AT17#,CT17#,ET176,ST17#

 1
57272-20020

AT170,CT17#,ET176,ST17#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-20070

AT17#,CT17#,ET176,ST17#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-20170

AT170,CT17#,ET176,ST17#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20050

AT170,CT17#,ET176,ST17#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-95500

CT176,ET176

 1
57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR
57419-95500

CT176,ET176

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-20010

AT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z

 1
57408-20010

AT170,CT17#,ET176,ST17#

 1
57457D - PATCH, FLOOR SIDE MEMBER, REAR RH
57457-20040

AT17#,CT17#,ET176,ST17#

 1
57458B - PATCH, FLOOR SIDE MEMBER, REAR LH
57458-20030

AT17#,CT17#,ET176,ST17#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-95504

CT176,ET176

 1
57601-95502

CT176,ET176

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-95502

CT176,ET176

 1
57602-95504

CT176,ET176

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-95501

CT176,ET176

 1
57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57606-13060

CT176,ET176

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-13010

CT176,ET176

 1
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010

AT17#,CT17#,ET176,ST17#

 2
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010

AT17#,CT17#,ET176,ST17#

 2
Common parts
90333-30002
90333-30004
90950-01038
90950-01056
90950-01148
90950-01258
90950-01453
90950-01518
90950-01539
Linked diagrams
7402
