ET176V-AXHNS (1987)

Toyota Corona

Production Dec 1987 - Nov 1992
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT176,ET176

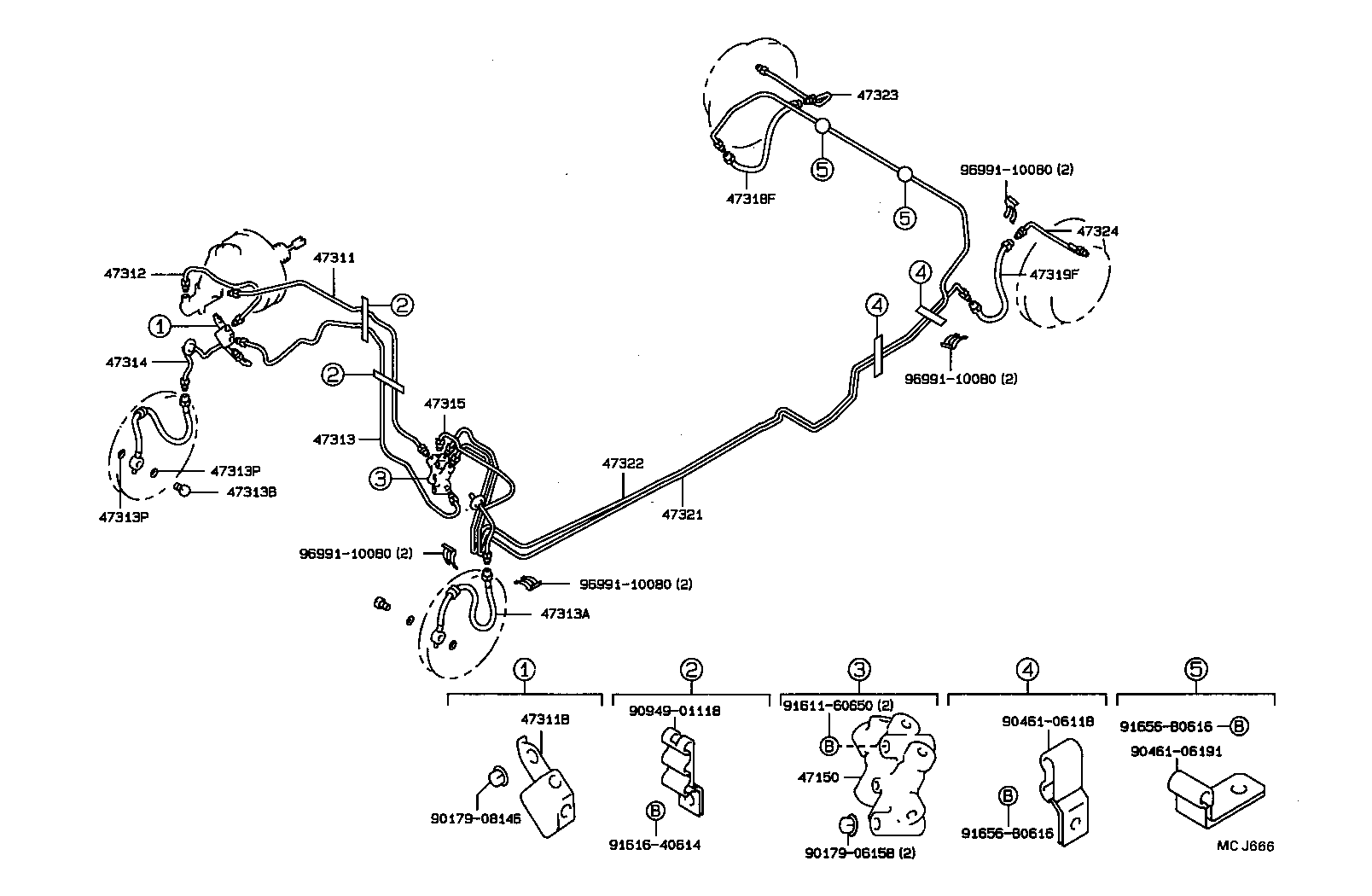

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 9017906158 9017908146 9046106118 9046106191 9094901118 9161160650 9161640614 91656B0616 91656B0616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20160

AT175,CT176,ET176,ST171..DX,EXS,GT,GTR,GX,MX,SELS,STD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20520

AT170,CT17#,ET176,ST170

 1
47311-20670

AT170,CT17#,ET176

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10193

ST170..CI;AT17#,CT17#,ET176,ST171

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20200

ST170..CI;AT170,CT17#,ET176

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20340

AT170,CT17#,ET176,ST17#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02565

AT170,CT17#,ET176,ST17#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT17#,CT17#,ET176,ST17#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT17#,CT17#,ET176,ST17#

 4
47389-30010

CT176,ET176

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT17#,CT17#,ET176,ST17#

 4
47389-30010

CT176,ET176

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20300

AT170,CT17#,ET176,ST17#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20400

AT170,CT17#,ET176,ST17#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02539

CT176,ET176

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02539

CT176,ET176

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20230

CT176,ET176

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20350

CT176,ET176

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-13020

CT176,ET176

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-13060

CT176,ET176

 1
Common parts
90179-06158
90179-08146
90461-06118
90461-06191
90949-01118
91611-60650
91616-40614
91656-B0616
96991-10080
