CT216-AEPMT (1997)

Toyota Corona

Production Dec 1997 - Dec 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

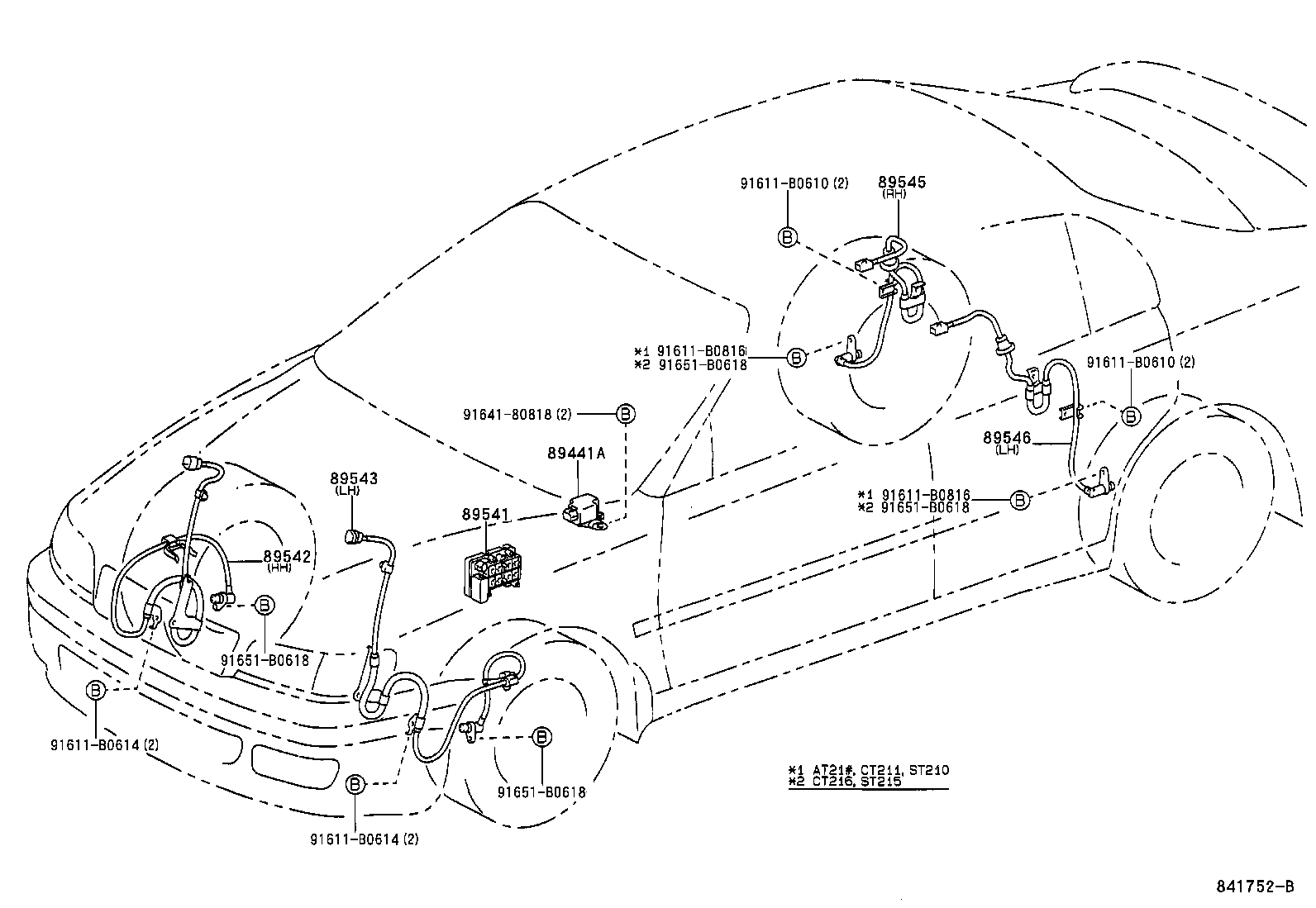

Click highlighted areas on diagram

diagram 89441A 89541 89542 89543 89545 89546 91611B0610 91611B0610 91611B0614 91611B0614 91611B0816 91611B0816 9164180818 91651B0618 91651B0618 91651B0618 91651B0618
Part # Description Qty Price
89441A - SENSOR, DECELERATION
89440-21030

CT216,ST215

 1
89541 - COMPUTER, SKID CONTROL
89541-21030

CT216,ST215

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20130

AT21#,CT21#,ST21#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20130

AT21#,CT21#,ST21#

 1
Common parts
91611-B0610
91611-B0614
91611-B0816
91641-80818
91651-B0618
