CT216-AEPMT (1997)

Toyota Corona

Production Dec 1997 - Dec 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 6(9712- )

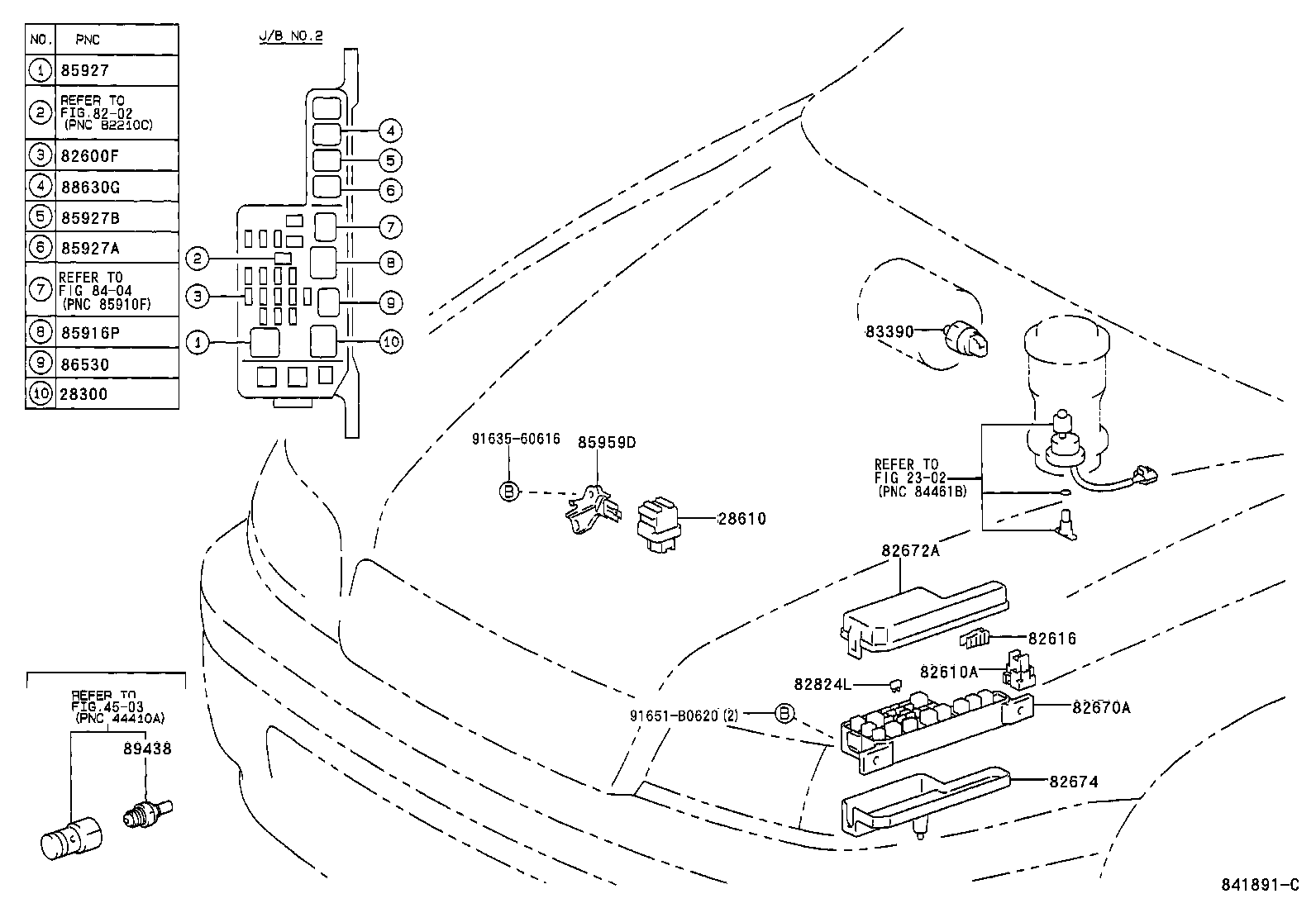

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾙ-ﾑ

diagram 2302 28300 28610 4503 8202 82600F 82610A 82616 82670A 82672A 82674 82824L 83390 8404 85916P 85927 85927A 85927B 85959D 86530 88630G 89438 9163560616 91651B0620
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-10020

4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21#

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-67010

2CT,3CTE..CT21#

 1
82600F - FUSE, FUSE BLOCK
90982-09007

AT21#,CT21#,ST21#

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90982-09010

AT21#,CT21#,ST21#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 5
90982-09013

AT21#,CT21#,ST21#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 2
90982-09008

AT21#,CT21#,ST21#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 4
90982-09009

AT21#,CT21#,ST21#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 4
90982-09007

AT21#,CT21#,ST21#

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90982-09008

AT21#,CT21#,ST21#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09013

AT21#,CT21#,ST21#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
90982-09010

AT21#,CT21#,ST21#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09009

AT21#,CT21#,ST21#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09011

AT21#,CT21#,ST21#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 2
90982-09011

AT21#,CT21#,ST21#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
82616 - PULLER, FUSE
82616-20010

AT21#,CT21#,ST21#

 1
82670A - BLOCK ASSY, JUNCTION, NO.1
82720-20080

CT21#

 1
82720-21020

CT21#

 1
82672A - COVER, JUNCTION BLOCK
82672-2B180

CT21#

 1
82672-2B170

CT21#

 1
82672-2B190

CT21#

 1
82674 - COVER, JUNCTION BLOCK LOWER
82674-21020

AT21#,CT21#,ST21#

 1
82674-20040

AT21#,CT21#,ST21#

 1
82824L - PIN, SHORT
82824-20140

AT21#,CT21#,ST21#

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-32100

CT21#

 1
85916P - RELAY, HEADLAMP
90987-02006

AT21#,CT21#,ST21#

 1
85927 - RELAY, COOLING FAN
90987-02009

AT21#,CT21#,ST21#

 1
85927A - RELAY, COOLING FAN, NO.2
90987-02009

CT211,216;CT210..MTM

 1
85927B - RELAY, COOLING FAN, NO.3
90987-04003

CT21#

 1
85959D - HOLDER, RELAY
85959-20200

CT21#

 1
86530 - RELAY ASSY, HORN
86530-20070

AT21#,CT21#,ST21#

 1
90080-87010

AT21#,CT21#,ST21#

ｸﾞﾚｰ

 1
90987-02012

AT21#,CT21#,ST21#

 1
88630G - RELAY ASSY, COOLER
90987-02009

CT21#

 1
90987-02012

AT21#,CT211,216,ST21#

 1
90987-02012

AT21#,CT21#,ST21#

ﾌﾞﾗｯｸ

 1
90987-02015

AT21#,CT21#,ST21#

ｸﾞﾘｰﾝ

 1
Common parts
91635-60616
91651-B0620
Linked diagrams
2302
4503
8202
8404
