CT216-AEPMT (1997)

Toyota Corona

Production Dec 1997 - Dec 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

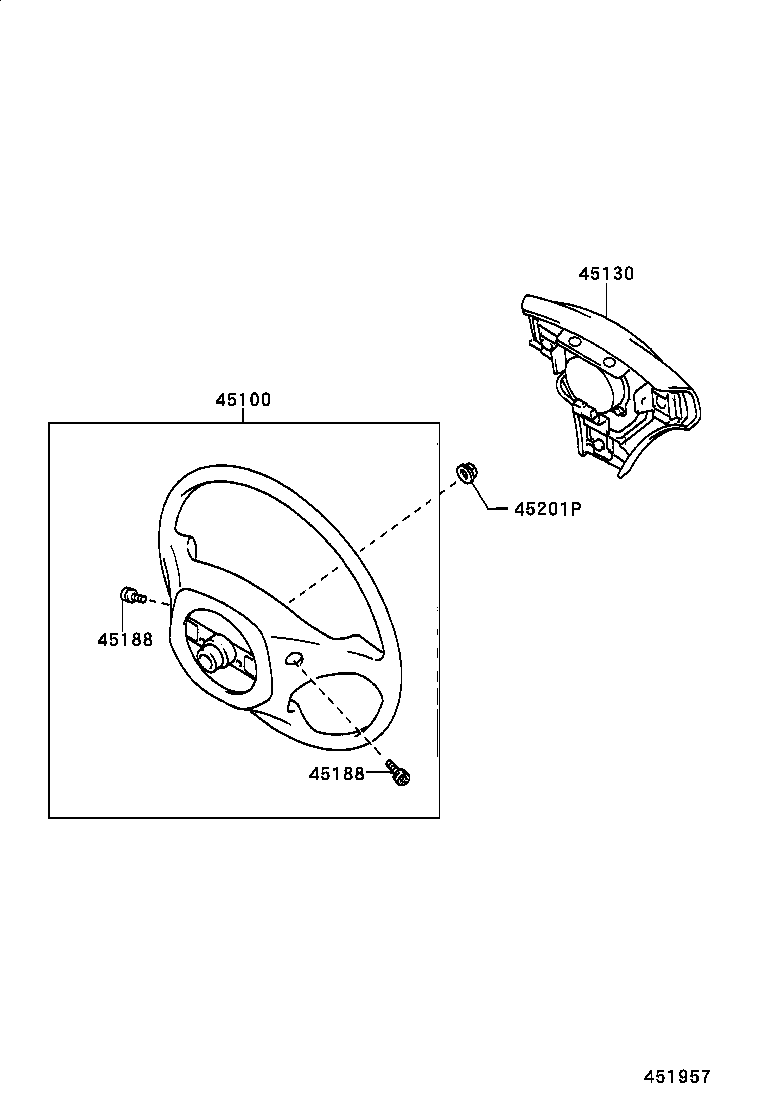

Click highlighted areas on diagram

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B510E0

AT21#,CT21#,ST21#..EFI,TD

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ANTELOPE,TRIM4#

 1
45100-21020B0

AT21#,CT21#,ST21#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM11

 1
45100-2B510B0

AT21#,CT21#,ST21#..EFI,TD

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45100-21020B2

AT21#,CT21#,ST21#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.CHARCOAL,TRIM17

 1
45130 - BUTTON ASSY, HORN
45130-2B360E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
45130-21010B2

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 1
45130-2B360B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
45130-21010B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
45130-21030B1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 1
45130-21030B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60026

AT21#,CT21#,ST21#

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60026

AT21#,CT21#,ST21#

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

AT21#,CT21#,ST21#

 1
