CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)CT215,ST215

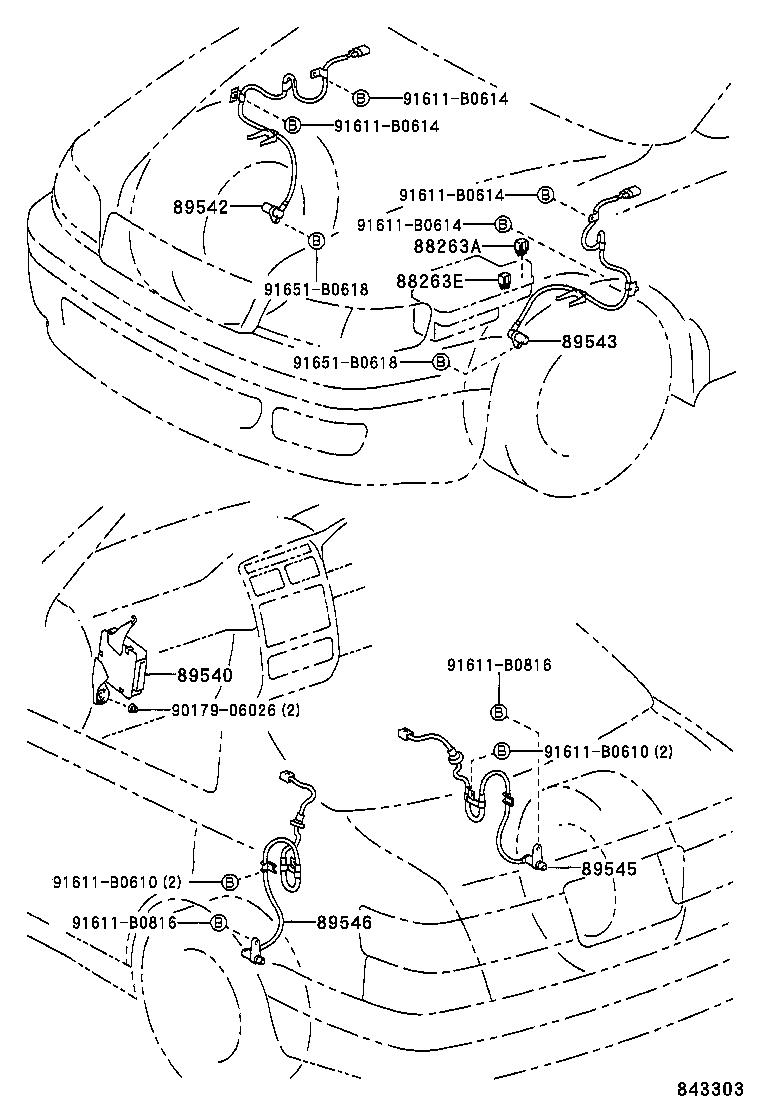

Click highlighted areas on diagram

diagram 88263A 88263E 89540 89542 89543 89545 89546 9017906026 91611B0610 91611B0610 91611B0614 91611B0614 91611B0614 91611B0614 91611B0816 91611B0816 91651B0618 91651B0618
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

AT21#,CT21#,ST21#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AT21#,CT21#,ST21#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-20380

CT215,ST215

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20130

AT21#,CT21#,ST21#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20130

AT21#,CT21#,ST21#

 1
89545 - SENSOR, SPEED, REAR RH
89545-20150

CT215,ST215

 1
89545-21020

CT215,216,ST215

 1
89546 - SENSOR, SPEED, REAR LH
89546-20150

CT215,ST215

 1
89546-21020

CT215,216,ST215

 1
Common parts
90179-06026
91611-B0610
91611-B0614
91611-B0816
91651-B0618
