CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF10(9601- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 6182420100 6182420100 82131 82210C 827111E260 827111E350 827112D090 8537332010 9015970003 9015970003 9015970004 9015970004
Part # Description Qty Price
82131 - WIRE, COWL
82131-2P290

CT21#..MTM

 1
82210C - FUSIBLE LINK
90982-08285

AT21#,CT21#,ST21#

50A,ﾒｽ端子,赤

 1
90982-08283

AT21#,CT21#,ST21#

30A,ﾒｽ端子,桃

 1
90982-08284

AT21#,CT21#,ST21#

40A,ﾒｽ端子,緑

 1
90982-08270

AT21#,CT21#,ST21#

100A,ｵｽ端子,青

 1
90982-08202

AT21#,CT21#,ST21#

60A,ｵｽ端子,黄

 1
90982-08254

AT21#,CT21#,ST21#

120A,ｵｽ端子,白

 1
Common parts
61824-20100
82711-1E260
82711-1E350
82711-2D090
85373-32010
90159-70003
90159-70004

ILLUST NO. 7 OF10(9612- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

diagram 8271135060 8271520300 8271520630 8271521130 827152B050 827152B060 827152B090 9010510263 9011908A70 9011908A70
Part # Description Qty Price
Common parts
82711-35060
82715-20300
82715-20630
82715-21130
82715-2B050
82715-2B060
82715-2B090
90105-10263
90119-08A70

ILLUST NO. 9 OF10(9601- )

Click highlighted areas on diagram

ﾘﾍﾟｱ

diagram 82991
Part # Description Qty Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20110

AT21#,CT21#,ST21#

 1

ILLUST NO. 6 OF10(9601- )

Click highlighted areas on diagram

ﾙ-ﾌ & ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ

diagram 82161 82162 82171 82186 82187 82412A 827111E260 827111E300 827111E350 827113H450 8271521130 9011906390 9015970003 9015970003
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-2L720

AT21#,CT21#,ST215

 1
82161-2L730

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ OR ﾘﾔ ﾜｲﾊﾟ)

 1
82162 - WIRE, FLOOR, NO.2
82162-20600

CT215,ST215

 1
82171 - WIRE, ROOF, NO.1
82171-2B100

AT21#,CT21#,ST215

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-20190

AT21#,CT21#,ST215

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-20240

AT21#,CT21#,ST215

 1
82412A - WIRE, FUEL GAGE, NO.2
82412-32041

CT215,ST215

 1
Common parts
82711-1E260
82711-1E300
82711-1E350
82711-3H450
82715-21130
90119-06390
90159-70003

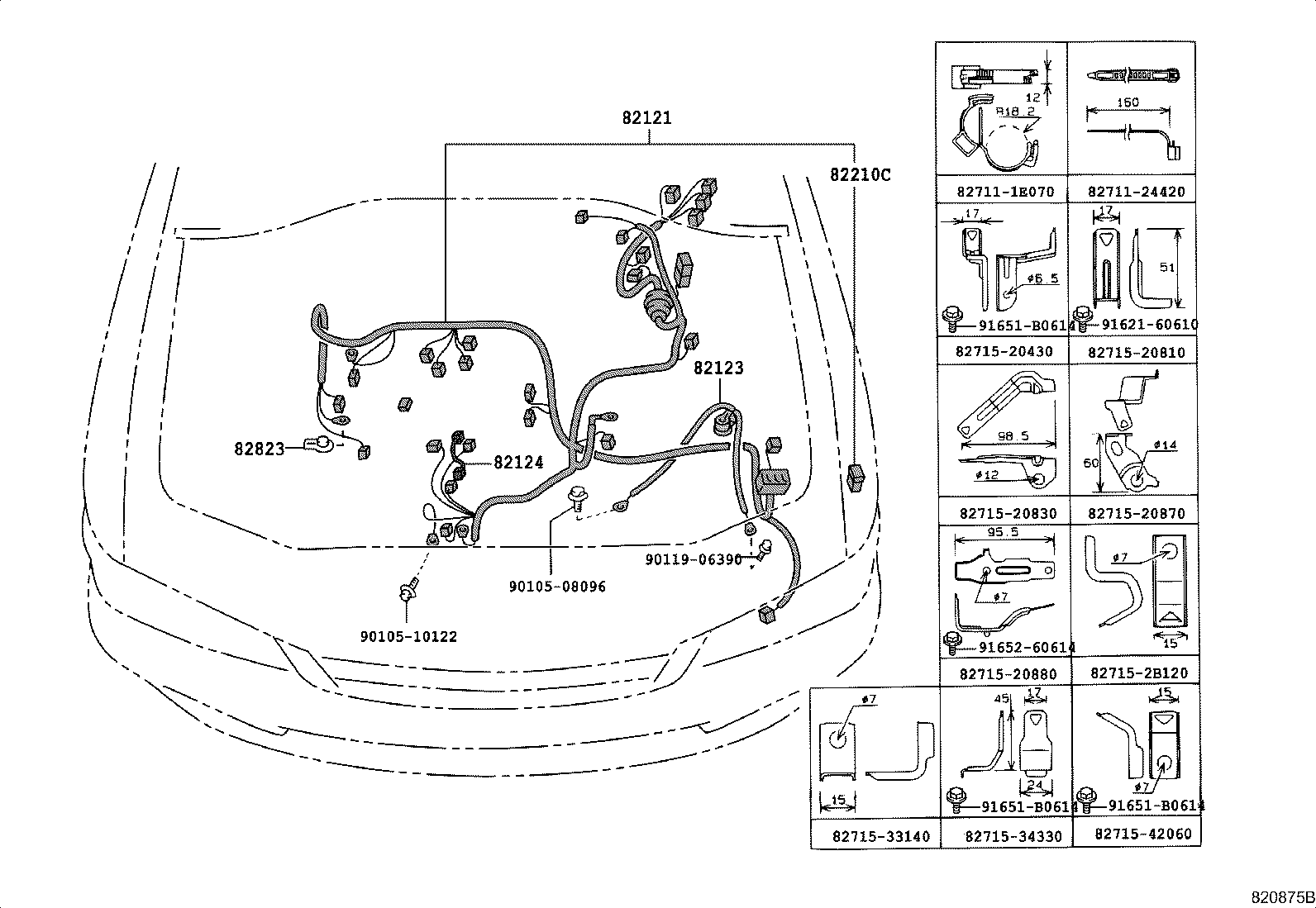

ILLUST NO. 1 OF10(9601-9712)CT21#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82123 82124 82210C 827111E070 8271124420 8271520430 8271520810 8271520830 8271520870 8271520880 827152B120 8271533140 8271534330 8271542060 82823 9010508096 9010510122 9011906390 9162160610 91651B0614 91651B0614 91651B0614 9165260614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-2M060

CT21#..MTM

 1
82121-2M061

CT21#..MTM

 1
82123 - WIRE, ENGINE, NO.3
82123-20280

CT21#

 1
82124 - WIRE, ENGINE, NO.4
82124-20170

CT21#

 1
82210C - FUSIBLE LINK
90982-08285

AT21#,CT21#,ST21#

50A,ﾒｽ端子,赤

 1
90982-08283

AT21#,CT21#,ST21#

30A,ﾒｽ端子,桃

 1
90982-08284

AT21#,CT21#,ST21#

40A,ﾒｽ端子,緑

 1
90982-08270

AT21#,CT21#,ST21#

100A,ｵｽ端子,青

 1
90982-08202

AT21#,CT21#,ST21#

60A,ｵｽ端子,黄

 1
90982-08254

AT21#,CT21#,ST21#

120A,ｵｽ端子,白

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

CT21#,ST21#

 1
Common parts
82711-1E070
82711-24420
82715-20430
82715-20810
82715-20830
82715-20870
82715-20880
82715-2B120
82715-33140
82715-34330
82715-42060
90105-08096
90105-10122
90119-06390
91621-60610
91651-B0614
91652-60614

ILLUST NO. 4 OF10(9601- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 6182420100 6182420100 82141 827111E350 827111E370 9015970003 9015970003
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-2G590

AT210,CT21#

 1
82141-2G620

AT21#,CT21#,ST21#..EFI,TD

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
82141-2G630

AT21#,CT21#,ST21#..EFI,TD

ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) OR ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ);ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ &ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
82141-2G610

AT210,CT21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
Common parts
61824-20100
82711-1E350
82711-1E370
90159-70003

ILLUST NO.10 OF10(9601- )

Click highlighted areas on diagram

ｺﾈｸﾀ

diagram 9098010619 9098010795 9098010825 9098010908 9098010983 9098011019 9098011075 9098011148 9098011156 9098011156 9098011314
Part # Description Qty Price
Common parts
90980-10619
90980-10795
90980-10825
90980-10908
90980-10983
90980-11019
90980-11075
90980-11148
90980-11156
90980-11314

ILLUST NO. 2 OF10(9601- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾙ-ﾑ

diagram 82111 82210C 82217A 827111E350 8271520820 82817 82818 82823 82823 8537332010 9011906120 9011906390 9011906390
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2L310

CT215;CT210..ATM

 1
82210C - FUSIBLE LINK
90982-08285

AT21#,CT21#,ST21#

50A,ﾒｽ端子,赤

 1
90982-08283

AT21#,CT21#,ST21#

30A,ﾒｽ端子,桃

 1
90982-08284

AT21#,CT21#,ST21#

40A,ﾒｽ端子,緑

 1
90982-08270

AT21#,CT21#,ST21#

100A,ｵｽ端子,青

 1
90982-08202

AT21#,CT21#,ST21#

60A,ｵｽ端子,黄

 1
90982-08254

AT21#,CT21#,ST21#

120A,ｵｽ端子,白

 1
82217A - WIRE, FRONT WINDOW DEFOGGER
82217-20080

AT21#,CT21#,ST21#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D090

AT21#,CT21#,ST21#

 1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82818-20090

AT21#,CT21#,ST21#

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

CT21#,ST21#

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

CT21#,ST21#

 1
Common parts
82711-1E350
82715-20820
85373-32010
90119-06120
90119-06390

ILLUST NO. 5 OF10(9601- )

Click highlighted areas on diagram

ﾄﾞｱ

diagram 82151 82152 82153 82154 827111E260
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-2G391

AT21#,CT21#,ST21#

 1
82151-2G390

AT21#,CT21#,ST21#

 1
82152 - WIRE, FRONT DOOR, LH
82152-2G190

AT21#,CT21#,ST21#

 1
82153 - WIRE, REAR DOOR, NO.1
82153-20450

AT21#,CT21#,ST21#

 1
82154 - WIRE, REAR DOOR, NO.2
82154-20450

AT21#,CT21#,ST21#

 1
Common parts
82711-1E260

ILLUST NO. 8 OF10(9601- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ

diagram 82001 82001 9011906390 9011906390 9162261018
Part # Description Qty Price
Common parts
90119-06390
91622-61018
