CT215-AEMMX (1996)
Toyota Corona

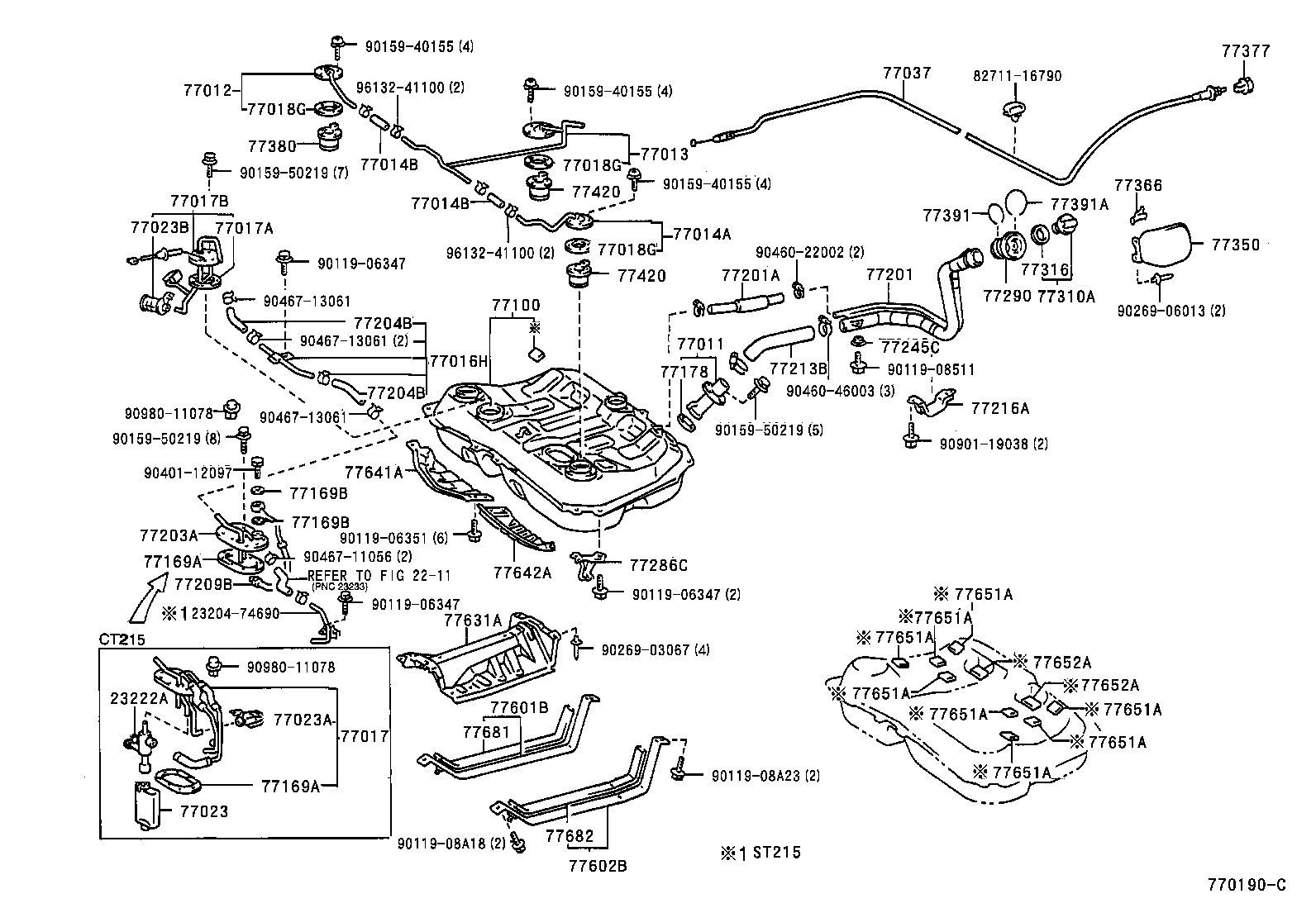

ILLUST NO. 1 OF 2(9601-9712)CT215,ST215
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23222A - TUBE, FUEL RETURN JET | ||||
| 23222-64020 |
2CT,3CTE..CT215,216 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-32040 |
CT215,ST215 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-32050 |
CT215,ST215 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-20080 |
CT215,ST215 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-20060 |
CT215,ST215 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
CT215,ST215 *H,L=80 |
2 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
CT215,ST215 *H,L=80 |
2 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-32010 |
CT215,ST215 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-20180 |
CT215 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14010 |
CT215,ST215 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-32071 |
CT215,ST215 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
CT215,ST215 |
3 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
CT215,ST215 |
3 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
CT215,ST215 |
3 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-16020 |
CT215,ST215 |
1 | ||
| 77023A - FILTER SUB-ASSY, FUEL SUCTION TUBE(FOR SUB-TANK) | ||||
| 77023-32040 |
CT215 |
1 | ||
| 77023B - FILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2 | ||||
| 77023-20050 |
CT215 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20110 |
AT21#,CT21#,ST21# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-32912 |
CT215,ST215 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-60010 |
CT215,216,ST215 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-60010 |
CT215,216,ST215 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AT21#,CT21#,ST21# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20530 |
AT21#,CT21#,ST21# |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77019-20550 |
CT215,ST215 長さ=255 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-08011 |
CT215,ST215 |
2 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-08011 |
CT215,ST215 |
2 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32060 |
CT215,ST215 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-20180 |
AT21#,CT21#,ST21# |
1 | ||
| 77245C - SUPPORT, FUEL TANK | ||||
| 77245-20120 |
AT21#,CT21#,ST21# |
1 | ||
| 77286C - PROTECTOR, FUEL TANK INLET HOSE | ||||
| 77286-20060 |
CT215,ST215 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-20140 |
AT21#,CT21#,ST21# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
CT21# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AT21#,CT21#,ST21# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20270 |
AT21#,CT21#,ST21# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12080 |
AT21#,CT21#,ST21# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AT21#,CT21#,ST21# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CT215,ST215 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AT21#,CT21#,ST21# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
AT21#,CT21#,ST21# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
CT215,ST215 |
2 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
CT215,ST215 |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20120 |
CT215,ST215 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20150 |
CT215,ST215 |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77606-32031 |
CT215,ST215 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32050 |
CT215,ST215 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-32010 |
CT215,ST215 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
CT215,ST215 |
8 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-20090 |
CT215,ST215 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-20090 |
CT215,ST215 |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
AT21#,CT21#,ST21# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 23204-74690 | ||||
| 82711-16790 | ||||
| 90119-06347 | ||||
| 90119-06351 | ||||
| 90119-08511 | ||||
| 90119-08A18 | ||||
| 90119-08A23 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90269-03067 | ||||
| 90269-06013 | ||||
| 90401-12097 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-11056 | ||||
| 90467-13061 | ||||
| 90901-19038 | ||||
| 90980-11078 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||

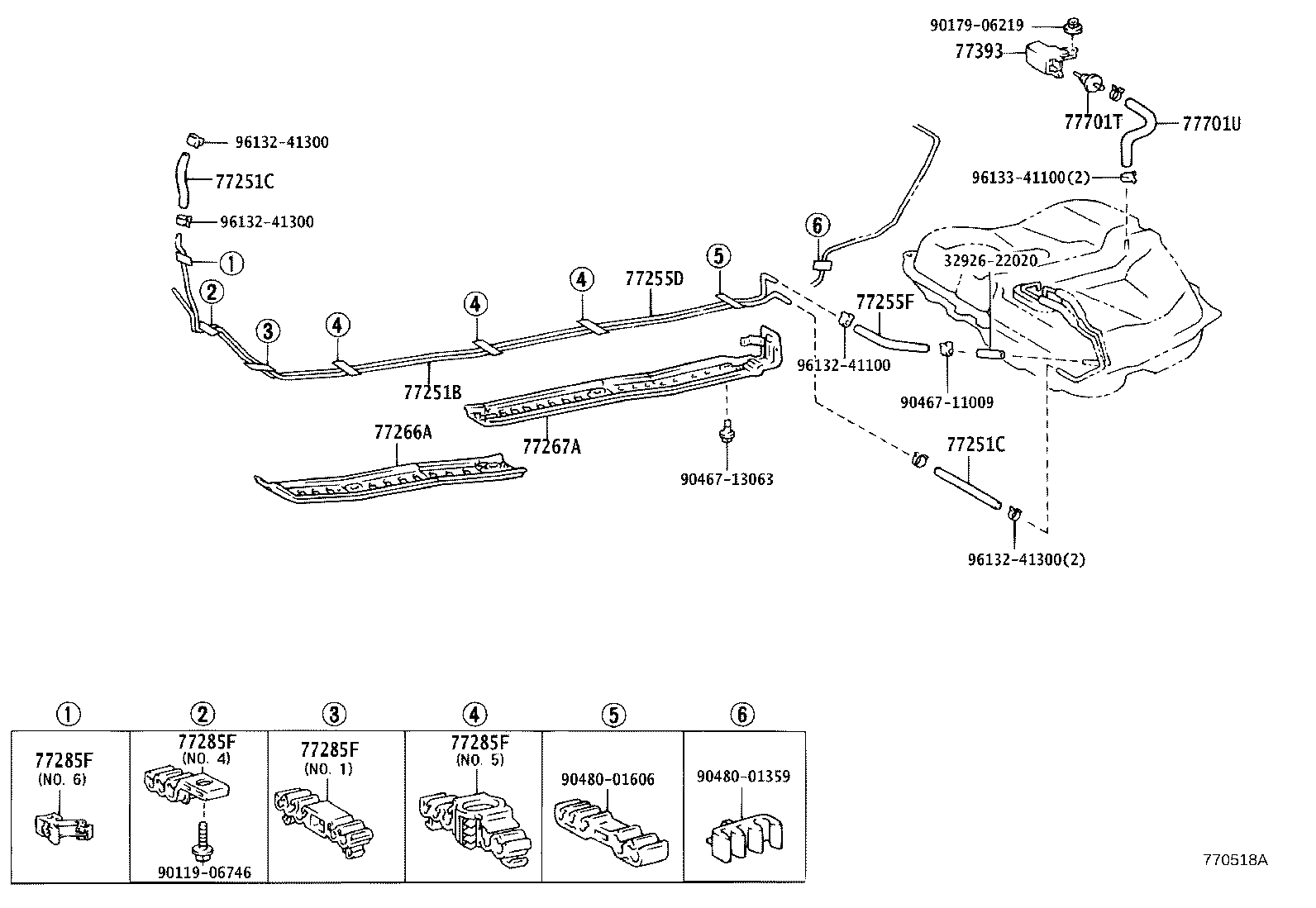

ILLUST NO. 2 OF 2(9601- )CT215,216
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20790 |
CT215,216 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CT215,216 *H,L=140,内径=7.6 |
1 | ||
| 95333-08020 |
CT21# *H,L=180,内径=7.6 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CT215,216 *H,L=140,内径=7.6 |
1 | ||
| 95333-08020 |
CT21# *H,L=180,内径=7.6 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20660 |
CT215,216 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT21#,CT21#,ST21# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20110 |
AT21#,CT21#,ST21# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-12030 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77285-12020 |
AT21#,CT21#,ST21# NO.1 |
1 | ||
| 77286-20090 |
AT21#,CT21#,ST21# NO.4 |
1 | ||
| 77298-20040 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77286-20090 |
CT21# NO.4 |
1 | ||
| 77285-20120 |
CT21# NO.6 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-12030 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77285-12020 |
AT21#,CT21#,ST21# NO.1 |
1 | ||
| 77286-20090 |
AT21#,CT21#,ST21# NO.4 |
1 | ||
| 77298-20040 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77286-20090 |
CT21# NO.4 |
1 | ||
| 77285-20120 |
CT21# NO.6 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-12030 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77285-12020 |
AT21#,CT21#,ST21# NO.1 |
1 | ||
| 77286-20090 |
AT21#,CT21#,ST21# NO.4 |
1 | ||
| 77298-20040 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77286-20090 |
CT21# NO.4 |
1 | ||
| 77285-20120 |
CT21# NO.6 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-12030 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77285-12020 |
AT21#,CT21#,ST21# NO.1 |
1 | ||
| 77286-20090 |
AT21#,CT21#,ST21# NO.4 |
1 | ||
| 77298-20040 |
AT21#,CT21#,ST21# NO.5 |
3 | ||
| 77286-20090 |
CT21# NO.4 |
1 | ||
| 77285-20120 |
CT21# NO.6 |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-20010 |
CT21# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
CT21# |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
CT21# *H,L=220 |
1 | ||
| Common parts | ||||
| 32926-22020 | ||||
| 90119-06746 | ||||
| 90179-06219 | ||||
| 90467-11009 | ||||
| 90467-13063 | ||||
| 90480-01359 | ||||
| 90480-01606 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96133-41100 | ||||
