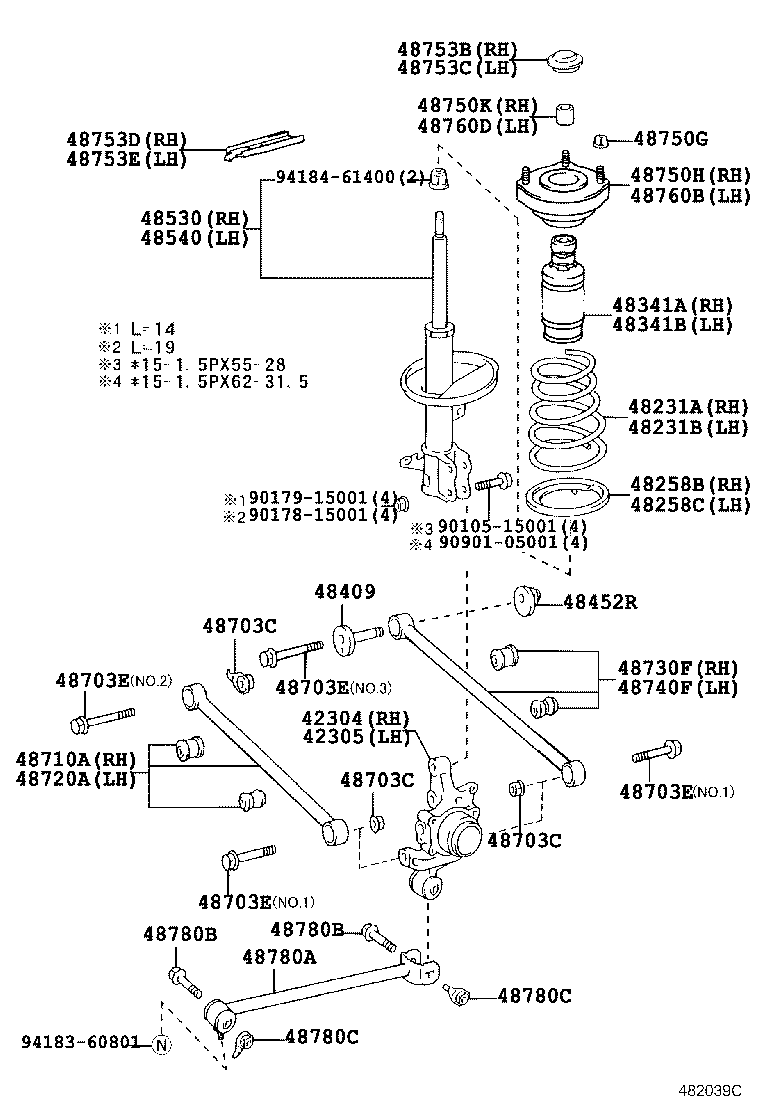

CT215-AEMMX (1996)
Toyota Corona
(9601- )CT215,216,ST215
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20210 |
CT215,216,ST215 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-20210 |
CT215,216,ST215 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2G060 |
CT215,ST215 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2G060 |
CT215,ST215 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32010 |
AT21#,CT21#,ST21# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32010 |
AT21#,CT21#,ST21# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-20280 |
CT21#,ST21# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-20280 |
CT21#,ST21# |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32030 |
CT215,216,ST215 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32030 |
CT215,216,ST215 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29525 |
CT215,216,ST215 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-29205 |
CT215,216,ST215 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
CT215,216,ST215 CARRIER SIDE |
4 | ||
| 90179-12100 |
CT215,216,ST215 BODY SIDE |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
CT215,216,ST215 CARRIER SIDE |
4 | ||
| 90179-12100 |
CT215,216,ST215 BODY SIDE |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
CT215,216,ST215 CARRIER SIDE |
4 | ||
| 90179-12100 |
CT215,216,ST215 BODY SIDE |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19002 |
CT215,216,ST215 *14−1.50PX95−26,NO.1 |
4 | ||
| 90119-12126 |
CT215,216,ST215 *12−1.25PX94−35,NO.3 |
2 | ||
| 90901-19003 |
CT215,ST215 *12−1.25PX78−24,NO.2 |
2 | ||
| 90901-19046 |
CT215,216,ST215 *12−1.25PX81−27,NO.2 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19002 |
CT215,216,ST215 *14−1.50PX95−26,NO.1 |
4 | ||
| 90119-12126 |
CT215,216,ST215 *12−1.25PX94−35,NO.3 |
2 | ||
| 90901-19003 |
CT215,ST215 *12−1.25PX78−24,NO.2 |
2 | ||
| 90901-19046 |
CT215,216,ST215 *12−1.25PX81−27,NO.2 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19002 |
CT215,216,ST215 *14−1.50PX95−26,NO.1 |
4 | ||
| 90119-12126 |
CT215,216,ST215 *12−1.25PX94−35,NO.3 |
2 | ||
| 90901-19003 |
CT215,ST215 *12−1.25PX78−24,NO.2 |
2 | ||
| 90901-19046 |
CT215,216,ST215 *12−1.25PX81−27,NO.2 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19002 |
CT215,216,ST215 *14−1.50PX95−26,NO.1 |
4 | ||
| 90119-12126 |
CT215,216,ST215 *12−1.25PX94−35,NO.3 |
2 | ||
| 90901-19003 |
CT215,ST215 *12−1.25PX78−24,NO.2 |
2 | ||
| 90901-19046 |
CT215,216,ST215 *12−1.25PX81−27,NO.2 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20270 |
CT215,216,ST215 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-20270 |
CT215,216,ST215 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-20230 |
CT215,ST215 |
1 | ||
| 48730-21020 |
CT215,216,ST215 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-21020 |
CT215,216,ST215 |
1 | ||
| 48730-20230 |
CT215,ST215 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
AT21#,CT21#,ST21# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-20150 |
AT21#,CT21#,ST21# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
AT21#,CT21#,ST21# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-20040 |
AT21#,CT21#,ST21# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-20040 |
AT21#,CT21#,ST21# |
1 | ||
| 48753D - COVER, REAR SUSPENSION SUPOPORT, NO.2 RH | ||||
| 48753-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH | ||||
| 48753-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-20150 |
AT21#,CT21#,ST21# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
AT21#,CT21#,ST21# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
CT215,ST215 |
2 | ||
| 48780-32060 |
CT215,ST215 |
2 | ||
| 48780-32060 |
CT215,ST215 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
AT21#,CT21#,ST21# |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
AT21#,CT21#,ST21# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12114 |
AT21#,CT21#,ST21# BODY SIDE |
2 | ||
| 90179-12091 |
AT21#,CT21#,ST21# CARRIER SIDE |
2 | ||
| 90179-12091 |
AT21#,CT21#,ST21# |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12114 |
AT21#,CT21#,ST21# BODY SIDE |
2 | ||
| 90179-12091 |
AT21#,CT21#,ST21# CARRIER SIDE |
2 | ||
| 90179-12091 |
AT21#,CT21#,ST21# |
4 | ||
| Common parts | ||||
| 90105-15001 | ||||
| 90178-15001 | ||||
| 90179-15001 | ||||
| 90901-05001 | ||||
| 94183-60801 | ||||
| 94184-61400 | ||||
