CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CT215,216,ST215

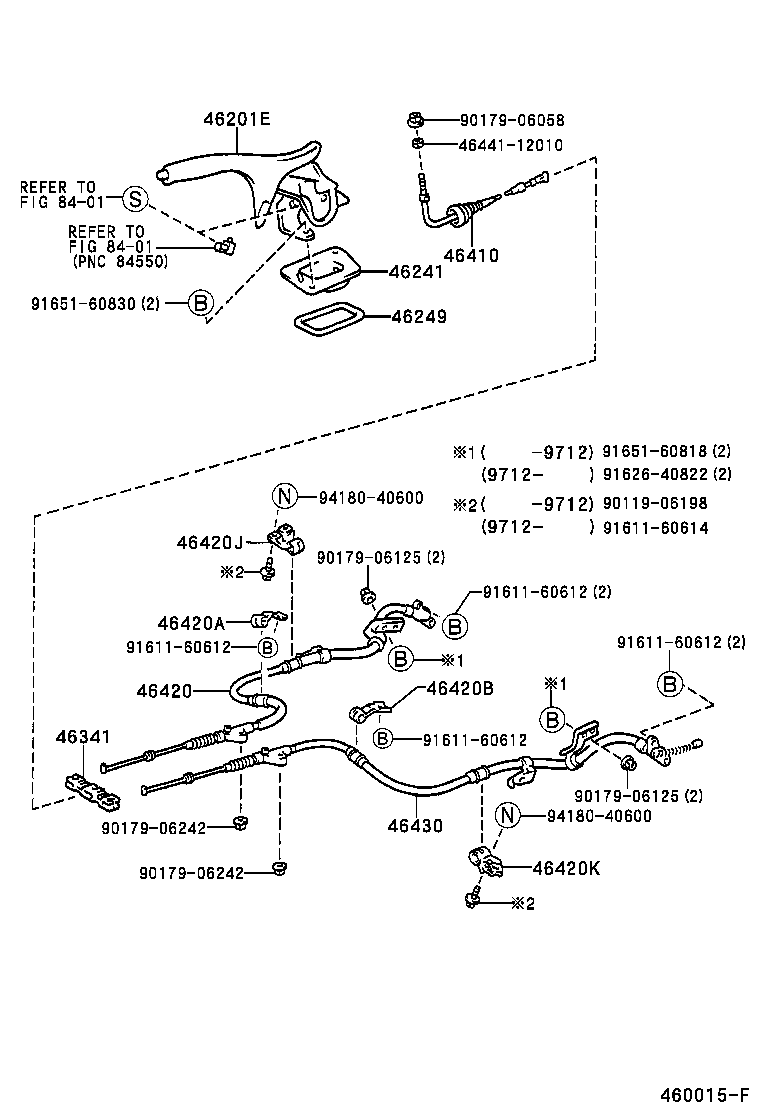

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 4644112010 8401 8401 9011906198 9017906058 9017906125 9017906125 9017906242 9017906242 9161160612 9161160612 9161160612 9161160612 9161160614 9162640822 9165160818 9165160830 9418040600 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-20340C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#

 1
46201-20340C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20170

AT21#,CT21#,ST21#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20050

AT21#,CT21#,ST21#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20100

CT215,216,ST215

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20440

CT215,216,ST215

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-20540

CT215,216,ST215

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01775

CT215,216,ST215

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01776

CT215,ST215

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01665

CT215,216,ST215

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01777

CT215,216,ST215

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20540

CT215,216,ST215

 1
Common parts
46441-12010
90119-06198
90179-06058
90179-06125
90179-06242
91611-60612
91611-60614
91626-40822
91651-60818
91651-60830
94180-40600
Linked diagrams
8401
