CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CT21#

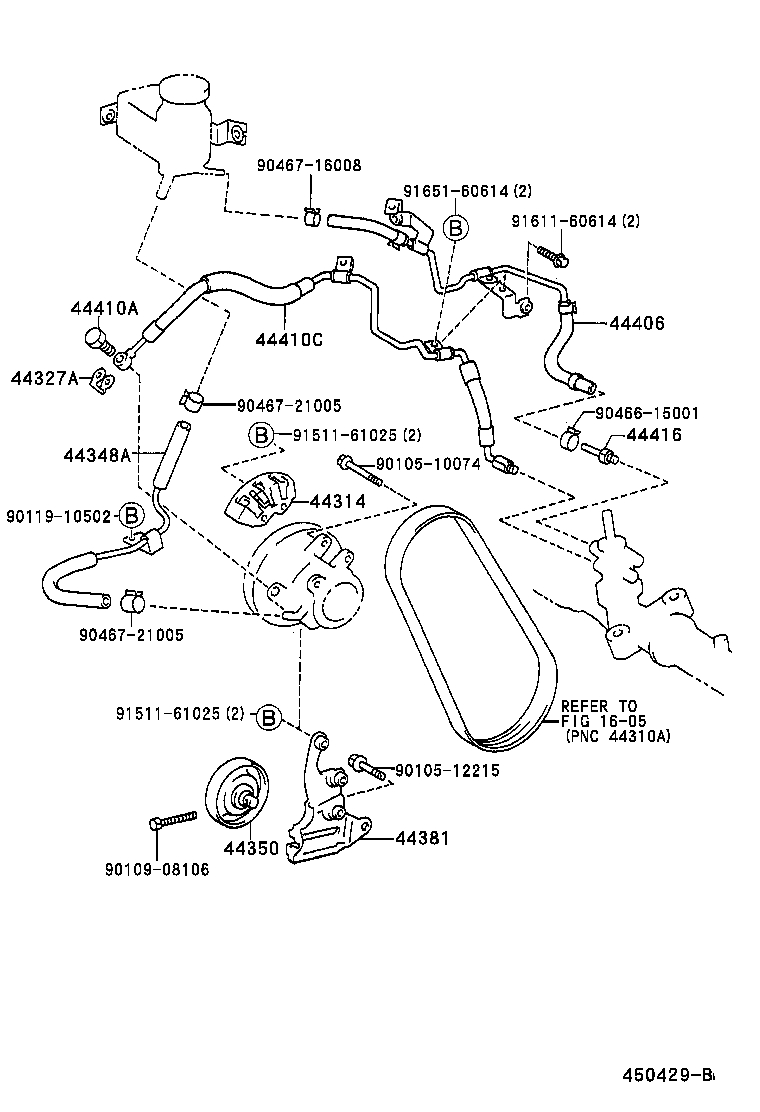

Click highlighted areas on diagram

diagram 1605 44314 44327A 44348A 44350 44381 44406 44410A 44410C 44416 9010510074 9010512215 9010908106 9011910502 9046615001 9046716008 9046721005 9046721005 9151161025 9151161025 9161160614 9165160614
Part # Description Qty Price
44314 - COVER, PULLEY
44314-12010

CT21#

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT21#,CT21#,ST21#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20530

CT215

 1
44348-21040

CT215,216

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20060

CT21#

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20030

CT21#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20720

CT215

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT21#,CT21#,ST21#

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-2B210

CT215,216

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT21#,CT21#,ST21#

 1
Common parts
90105-10074
90105-12215
90109-08106
90119-10502
90466-15001
90467-16008
90467-21005
91511-61025
91611-60614
91651-60614
Linked diagrams
1605
