CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)CT215,ST215..MTM

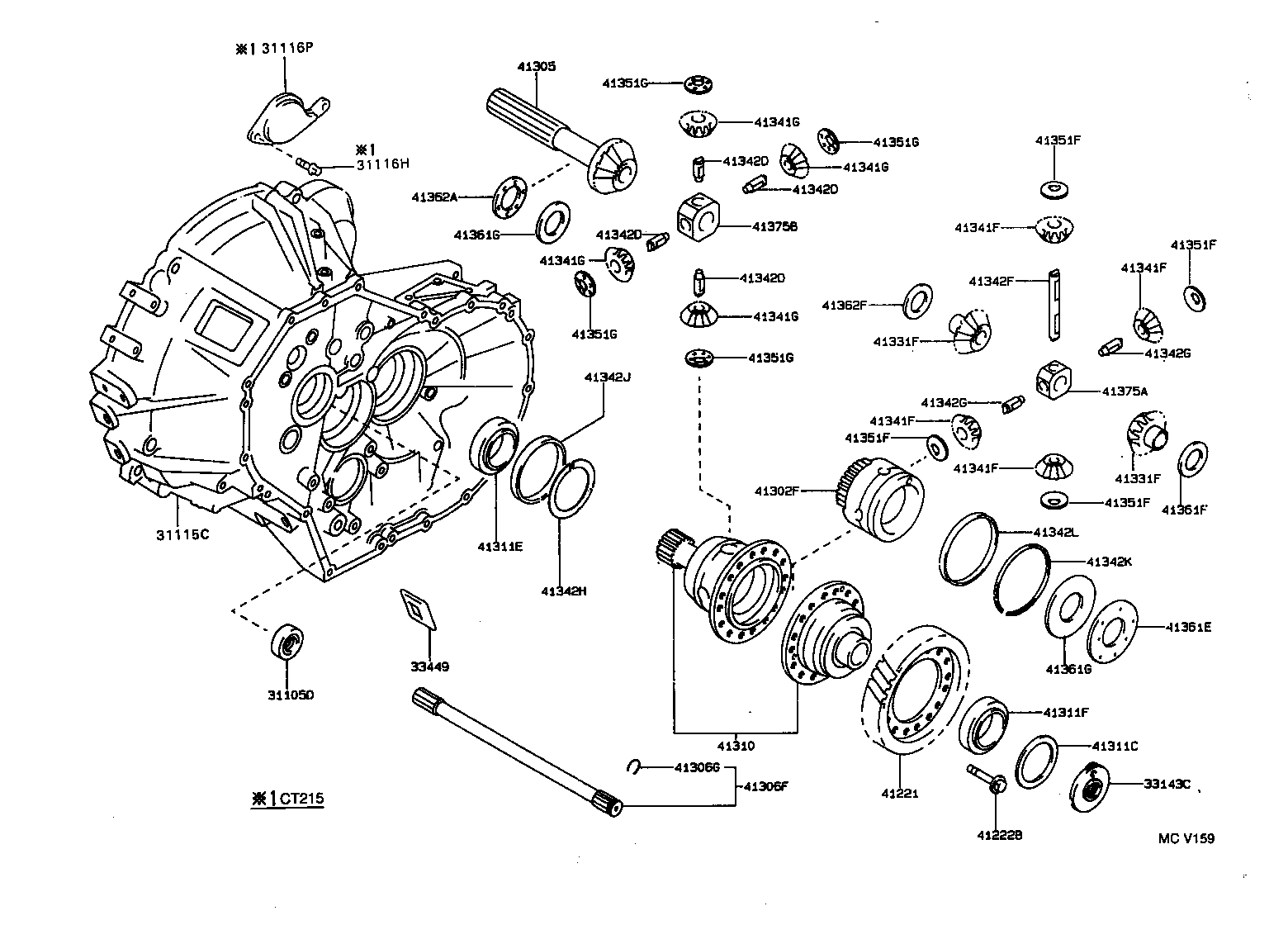

Click highlighted areas on diagram

E56F,E57F

diagram 31105D 31115C 31116H 31116P 33143C 33449 41221 41222B 41302F 41305 41306F 41306G 41310 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41341F 41341F 41341G 41341G 41341G 41341G 41342D 41342D 41342D 41342D 41342F 41342G 41342G 41342H 41342J 41342K 41342L 41351F 41351F 41351F 41351F 41351G 41351G 41351G 41351G 41361E 41361F 41361G 41361G 41362A 41362F 41375A 41375B
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

CT210,211,215,ST215..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-33012

CT215,ST215..MTM

 1
31116H - BOLT(FOR FRONT TRANSAXLE CASE COVER)
91511-41020

CT215

 2
31116P - COVER, TRANSAXLE CASE
31116-12020

CT215

 1
33143C - BAFFLE, FRONT DIFFERENTIAL OIL
33143-12010

CT215,ST215

 1
33449 - MAGNET, TRANSMISSION
33449-20010

CT215,ST215..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12290

CT215,ST215..MTM

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12150

CT215,ST215..MTM

 16
41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL
41302-12030

CT215,ST215..MTM

 1
41305 - GEAR SUB-ASSY, DIFFERENTIAL SIDE
41305-12020

CT215,ST215..MTM

 1
41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41306-32010

CT215,ST215

 1
41306G - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT
90521-26004

CT215,ST215

 1
41310 - CASE ASSY, DIFFERENTIAL
41310-42030

CT215,ST215..MTM

 1
41310-20250

CT215,ST215..MTM

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-76005

CT215,ST215

厚さ=2.20,ﾏｰｸ 4

 1
90564-76006

CT215,ST215

厚さ=2.25,ﾏｰｸ 5

 1
90564-76009

CT215,ST215

厚さ=2.40,ﾏｰｸ 8

 1
90564-76001

CT215,ST215

厚さ=2.00,ﾏｰｸ 0

 1
90564-76007

CT215,ST215

厚さ=2.30,ﾏｰｸ 6

 1
90564-76004

CT215,ST215

厚さ=2.15,ﾏｰｸ 3

 1
90564-76010

CT215,ST215

厚さ=2.45,ﾏｰｸ 9

 1
90564-76011

CT215,ST215

厚さ=2.50,ﾏｰｸ A

 1
90564-76008

CT215,ST215

厚さ=2.35,ﾏｰｸ 7

 1
90564-76012

CT215,ST215

厚さ=2.55,ﾏｰｸ B

 1
90564-76015

CT215,ST215

厚さ=2.70,ﾏｰｸ E

 1
90564-76003

CT215,ST215

厚さ=2.10,ﾏｰｸ 2

 1
90564-76017

CT215,ST215

厚さ=2.80,ﾏｰｸ G

 1
90564-76013

CT215,ST215

厚さ=2.60,ﾏｰｸ C

 1
90564-76002

CT215,ST215

厚さ=2.05,ﾏｰｸ 1

 1
90564-76016

CT215,ST215

厚さ=2.75,ﾏｰｸ F

 1
90564-76014

CT215,ST215

厚さ=2.65,ﾏｰｸ D

 1
90564-76018

CT215,ST215

厚さ=2.85,ﾏｰｸ H

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57001

CT215,ST215..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50014

CT215,ST215..MTM

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12030

CT215,ST215

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12030

CT215,ST215

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20011

CT215,ST215

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20011

CT215,ST215

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20011

CT215,ST215

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20011

CT215,ST215

 4
41341G - PINION, CENTER DIFFERENTIAL
41341-42010

CT215,ST215..MTM

 4
41341G - PINION, CENTER DIFFERENTIAL
41341-42010

CT215,ST215..MTM

 4
41341G - PINION, CENTER DIFFERENTIAL
41341-42010

CT215,ST215..MTM

 4
41341G - PINION, CENTER DIFFERENTIAL
41341-42010

CT215,ST215..MTM

 4
41342D - SHAFT, CENTER DIFFERENTIAL PINION
41342-42010

CT215,ST215..MTM

 4
41342D - SHAFT, CENTER DIFFERENTIAL PINION
41342-42010

CT215,ST215..MTM

 4
41342D - SHAFT, CENTER DIFFERENTIAL PINION
41342-42010

CT215,ST215..MTM

 4
41342D - SHAFT, CENTER DIFFERENTIAL PINION
41342-42010

CT215,ST215..MTM

 4
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12040

CT215,ST215..MTM

 1
41342G - SHAFT, FRONT DIFFERENTIAL PINION, NO.2
41342-12050

CT215,ST215..MTM

 2
41342G - SHAFT, FRONT DIFFERENTIAL PINION, NO.2
41342-12050

CT215,ST215..MTM

 2
41342H - RING, SHAFT SNAP (FOR CENTER DIFFERENTIAL PINION SHAFT)
90520-99007

CT215,ST215..MTM

 1
41342J - SPACER (FOR CENTER DIFFERENTIAL PINION SHAFT)
90560-99002

CT215,ST215..MTM

 1
41342K - RING, SHAFT SNAP (FOR FRONT DIFFERENTIAL PINION SHAFT)
90520-94001

CT215,ST215..MTM

 1
41342L - SPACER (FOR DIFFERENTIAL PINION SHAFT)
90560-97001

CT215,ST215..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010

CT215,ST215..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010

CT215,ST215..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010

CT215,ST215..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010

CT215,ST215..MTM

 4
41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST
41351-42010

CT215,ST215..MTM

 4
41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST
41351-42010

CT215,ST215..MTM

 4
41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST
41351-42010

CT215,ST215..MTM

 4
41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST
41351-42010

CT215,ST215..MTM

 4
41361E - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-20050

CT215,ST215..MTM

厚さ=0.95,ﾏｰｸ 3

 1
41362-20020

CT215,ST215..MTM

厚さ=0.80,ﾏｰｸ O

 1
41362-20080

CT215,ST215..MTM

厚さ=1.10,ﾏｰｸ 6

 1
41362-20060

CT215,ST215..MTM

厚さ=1.00,ﾏｰｸ 4

 1
41362-20090

CT215,ST215..MTM

厚さ=1.15,ﾏｰｸ 7

 1
41362-20030

CT215,ST215..MTM

厚さ=0.85,ﾏｰｸ 1

 1
41362-20040

CT215,ST215..MTM

厚さ=0.90,ﾏｰｸ 2

 1
41362-20100

CT215,ST215..MTM

厚さ=1.20,ﾏｰｸ 8

 1
41362-20130

CT215,ST215..MTM

厚さ=1.35,ﾏｰｸ B

 1
41362-20070

CT215,ST215..MTM

厚さ=1.05,ﾏｰｸ 5

 1
41362-20110

CT215,ST215..MTM

厚さ=1.25,ﾏｰｸ 9

 1
41362-20140

CT215,ST215..MTM

厚さ=1.40,ﾏｰｸ C

 1
41362-20120

CT215,ST215..MTM

厚さ=1.30,ﾏｰｸ A

 1
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12330

CT215,ST215..MTM

厚さ=0.95,ﾏｰｸ A

 1
41361-12340

CT215,ST215..MTM

厚さ=1.00,ﾏｰｸ B

 1
41361-12350

CT215,ST215..MTM

厚さ=1.05,ﾏｰｸ C

 1
41361-12390

CT215,ST215..MTM

厚さ=1.25,ﾏｰｸ G

 1
41361-12380

CT215,ST215..MTM

厚さ=1.20,ﾏｰｸ F

 1
41361-12410

CT215,ST215..MTM

厚さ=1.35,ﾏｰｸ J

 1
41361-12420

CT215,ST215..MTM

厚さ=1.40,ﾏｰｸ K

 1
41361-12400

CT215,ST215..MTM

厚さ=1.30,ﾏｰｸ H

 1
41361-12360

CT215,ST215..MTM

厚さ=1.10,ﾏｰｸ D

 1
41361-12370

CT215,ST215..MTM

厚さ=1.15,ﾏｰｸ E

 1
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-36001

CT215,ST215..MTM

左側

 1
90208-48001

CT215,ST215..MTM

右側

 1
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-36001

CT215,ST215..MTM

左側

 1
90208-48001

CT215,ST215..MTM

右側

 1
41362A - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
41362-20300

CT215,ST215..MTM

厚さ=0.90,ﾏｰｸ VC

 1
41362-20290

CT215,ST215..MTM

厚さ=0.85,ﾏｰｸ VB

 1
41362-20380

CT215,ST215..MTM

厚さ=1.30,ﾏｰｸ VL

 1
41362-20340

CT215,ST215..MTM

厚さ=1.10,ﾏｰｸ VG

 1
41362-20390

CT215,ST215..MTM

厚さ=1.35,ﾏｰｸ VM

 1
41362-20330

CT215,ST215..MTM

厚さ=1.05,ﾏｰｸ VF

 1
41362-20350

CT215,ST215..MTM

厚さ=1.05,ﾏｰｸ VH

 1
41362-20280

CT215,ST215..MTM

厚さ=0.80,ﾏｰｸ VA

 1
41362-20320

CT215,ST215..MTM

厚さ=1.00,ﾏｰｸ VE

 1
41362-20370

CT215,ST215..MTM

厚さ=1.25,ﾏｰｸ VK

 1
41362-20400

CT215,ST215..MTM

厚さ=1.40,ﾏｰｸ VN

 1
41362-20360

CT215,ST215..MTM

厚さ=1.20,ﾏｰｸ VJ

 1
41362-20310

CT215,ST215..MTM

厚さ=0.95,ﾏｰｸ VD

 1
41362F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.2
41361-12340

CT215,ST215..MTM

厚さ=1.00,ﾏｰｸ B

 1
41361-12370

CT215,ST215..MTM

厚さ=1.15,ﾏｰｸ E

 1
41361-12350

CT215,ST215..MTM

厚さ=1.05,ﾏｰｸ C

 1
41361-12360

CT215,ST215..MTM

厚さ=1.10,ﾏｰｸ D

 1
41361-12390

CT215,ST215..MTM

厚さ=1.25,ﾏｰｸ G

 1
41361-12380

CT215,ST215..MTM

厚さ=1.20,ﾏｰｸ F

 1
41375A - HOLDER, FRONT DIFFERENTIAL PINION SHAFT
41375-12020

CT215,ST215..MTM

 1
41375B - HOLDER, CENTER DIFFERENTIAL PINION SHAFT
41375-12051

CT215,ST215..MTM

 1
