CT215-AEMMX (1996)
Toyota Corona
Production
Jan 1996
-
Dec 1997
Engine
2CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601-9712)CT215

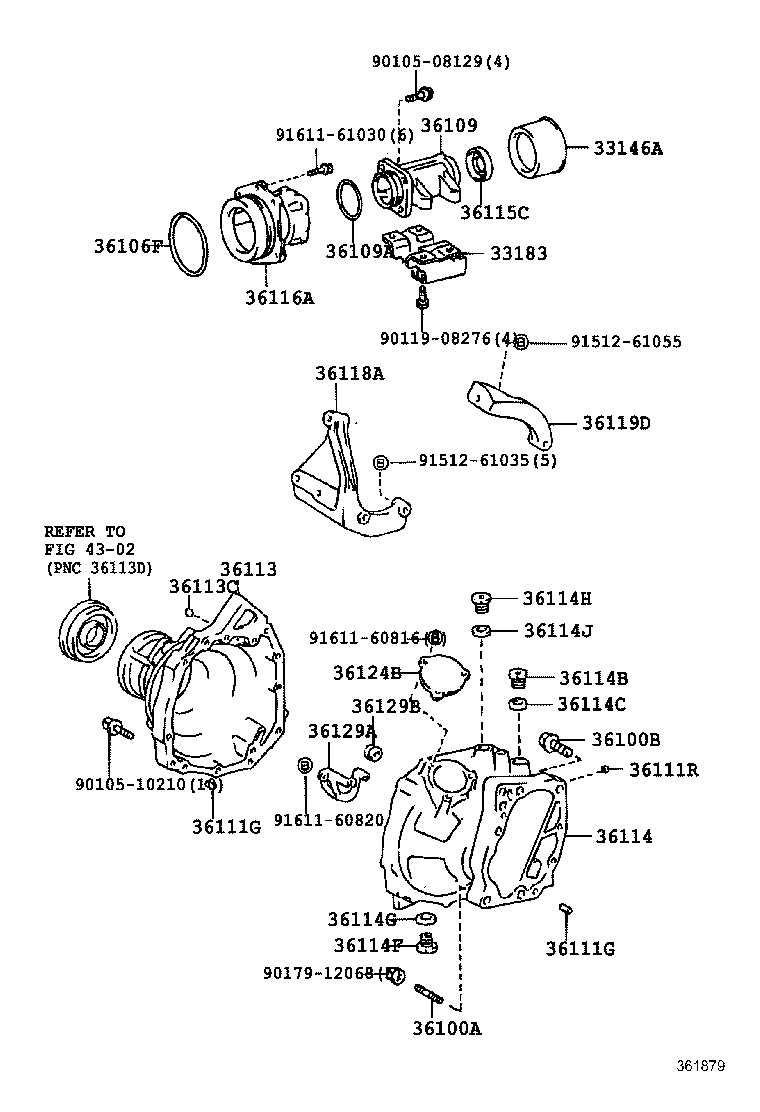

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
CT215,216,ST215 |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-20040 |
CT215 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12028 |
CT215,ST215 ﾈｼﾞ部長さ=22 & 22,長さ=69 |
2 | ||
| 90116-12018 |
CT215,ST215..MTM ﾈｼﾞ部長さ=27 & 27,長さ=75 |
3 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12137 |
CT215,ST215..MTM *12−1.25PX52−30 |
3 | ||
| 36106F - RING, O (FOR TRANSFER PINION BEARING CAGE) | ||||
| 90301-99049 |
CT215,ST215..MTM |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-20012 |
CT215,ST215..MTM |
1 | ||
| 36109A - RING, O (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90301-63005 |
CT215,ST215 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
CT215,ST215..MTM 長さ=20,外径=10 |
2 | ||
| 90250-12005 |
CT215,ST215 長さ=24,外径=12 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
CT215,ST215..MTM 長さ=20,外径=10 |
2 | ||
| 90250-12005 |
CT215,ST215 長さ=24,外径=12 |
2 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 90331-08002 |
CT215,ST215..MTM |
1 | ||
| 36113 - CASE, TRANSFER, RH | ||||
| 36113-12050 |
CT215 |
1 | ||
| 36113C - PLUG (FOR TRANSFER CASE) | ||||
| 90331-14004 |
CT215,ST215..MTM |
1 | ||
| 36114 - CASE, TRANSFER, LH | ||||
| 36114-12050 |
CT215,ST215..MTM |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-22001 |
CT215,ST215..MTM |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-22002 |
CT215,ST215..MTM |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18006 |
CT215,ST215..MTM |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
CT215,ST215 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18023 |
CT215,ST215..MTM |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
CT215,ST215..MTM |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38032 |
CT215,ST215 |
1 | ||
| 36116A - CAGE, TRANSFER PINION BEARING | ||||
| 36116-12010 |
CT215,ST215..MTM |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-12060 |
CT215 |
1 | ||
| 36119D - PLATE, TRANSFER STIFFENER, CENTER | ||||
| 36119-12020 |
CT215 |
1 | ||
| 36124B - COVER, TRANSFER INSPECTION HOLE | ||||
| 36124-12010 |
CT215,ST215..MTM |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-20010 |
CT215,ST215..MTM |
1 | ||
| 36129B - CUSHION (FOR TRANSFER OIL TUBE) | ||||
| 90540-06027 |
CT215,ST215..MTM |
1 | ||
| Common parts | ||||
| 90105-08129 | ||||
| 90105-10210 | ||||
| 90119-08276 | ||||
| 90179-12068 | ||||
| 91512-61035 | ||||
| 91512-61055 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-61030 | ||||
| Linked diagrams | ||||
| 4302 | ||||
