CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)CT215,ST215..MTM

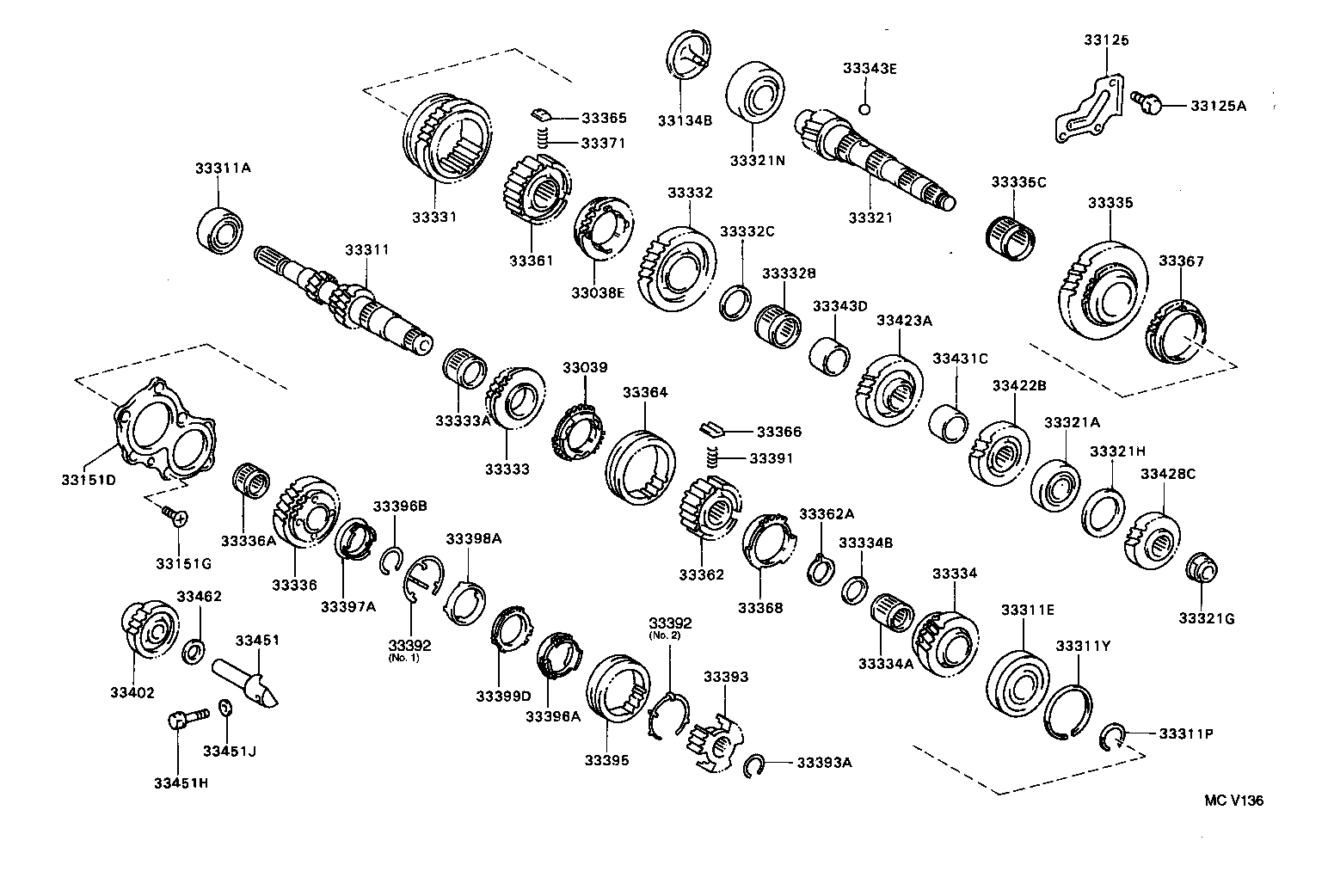

Click highlighted areas on diagram

E56F,E57F

diagram 33038E 33039 33125 33125A 33134B 33151D 33151G 33311 33311A 33311E 33311P 33311Y 33321 33321A 33321G 33321H 33321N 33331 33332 33332B 33332C 33333 33333A 33334 33334A 33334B 33335 33335C 33336 33336A 33343D 33343E 33361 33362 33362A 33364 33365 33366 33367 33368 33371 33391 33392 33392 33393 33393A 33395 33396A 33396B 33397A 33398A 33399D 33402 33422B 33423A 33428C 33431C 33451 33451H 33451J 33462
Part # Description Qty Price
33038E - RING SET, SYNCHRONIZER, NO.2
33038-12012

CT215,ST215..MTM

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33039-12011

CT215,ST215..MTM

 1
33125 - RECEIVER, MANUAL TRANSAXLE CASE
33125-20010

CT215,ST215..MTM

 1
33125A - BOLT(FOR TRANSAXLE CASE RECEIVER)
91611-60616

CT215,ST215..MTM

 3
33134B - COVER, OUTPUT SHAFT(MTM)
33134-20010

CT215,ST215..MTM

 1
33151D - RETAINER, BEARING, REAR(MTM)
33151-12031

CT215,ST215..MTM

 1
33151G - SCREW(FOR REAR BEARING RETAINER)
90149-80029

CT215,ST215..MTM

 7
33311 - SHAFT, INPUT
33311-13010

CT215

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90365-30023

CT215,ST215..MTM

 1
33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
90363-33007

CT215,ST215..MTM

 1
33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
90520-30008

CT215,ST215..MTM

厚さ=2.35−2.40,ﾏｰｸ 1

 1
90520-30012

CT215,ST215..MTM

厚さ=2.55−2.60,ﾏｰｸ 5

 1
90520-30011

CT215,ST215..MTM

厚さ=2.50−2.55,ﾏｰｸ 4

 1
90520-30010

CT215,ST215..MTM

厚さ=2.45−2.50,ﾏｰｸ 3

 1
90520-30021

CT215,ST215..MTM

厚さ=2.65−2.69,ﾏｰｸ 7

 1
90520-30009

CT215,ST215..MTM

厚さ=2.40−2.45,ﾏｰｸ 2

 1
90520-30013

CT215,ST215..MTM

厚さ=2.60−2.65,ﾏｰｸ 6

 1
90520-30022

CT215,ST215..MTM

厚さ=2.70−2.74,ﾏｰｸ 8

 1
33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
90520-76003

CT215,ST215..MTM

 1
33321 - SHAFT, OUTPUT
33302-12070

CT215,ST215..MTM

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90366-28002

CT215,ST215..MTM

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-20012

CT215,ST215..MTM

 1
33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING)
90564-59001

CT215,ST215..MTM

厚さ=1.30,ﾏｰｸ 0

 1
90564-59004

CT215,ST215..MTM

厚さ=1.45,ﾏｰｸ 3

 1
90564-59003

CT215,ST215..MTM

厚さ=1.40,ﾏｰｸ 2

 1
90564-59006

CT215,ST215..MTM

厚さ=1.55,ﾏｰｸ 5

 1
90564-59008

CT215,ST215..MTM

厚さ=1.65,ﾏｰｸ 7

 1
90564-59005

CT215,ST215..MTM

厚さ=1.50,ﾏｰｸ 4

 1
90564-59009

CT215,ST215..MTM

厚さ=1.70,ﾏｰｸ 8

 1
90564-59002

CT215,ST215..MTM

厚さ=1.35 ﾏｰｸ 1

 1
90564-59007

CT215,ST215..MTM

厚さ=1.60,ﾏｰｸ 6

 1
90564-59018

CT215,ST215..MTM

厚さ=2.15,ﾏｰｸ H

 1
90564-59014

CT215,ST215..MTM

厚さ=1.95,ﾏｰｸ D

 1
90564-59019

CT215,ST215..MTM

厚さ=2.20,ﾏｰｸ J

 1
90564-59011

CT215,ST215..MTM

厚さ=1.80,ﾏｰｸ A

 1
90564-59016

CT215,ST215..MTM

厚さ=2.05,ﾏｰｸ F

 1
90564-59023

CT215,ST215..MTM

厚さ=2.40,ﾏｰｸ N

 1
90564-59015

CT215,ST215..MTM

厚さ=2.00,ﾏｰｸ E

 1
90564-59013

CT215,ST215..MTM

厚さ=1.90,ﾏｰｸ C

 1
90564-59012

CT215,ST215..MTM

厚さ=1.85,ﾏｰｸ B

 1
90564-59017

CT215,ST215..MTM

厚さ=2.10,ﾏｰｸ G

 1
90564-59020

CT215,ST215..MTM

厚さ=2.25,ﾏｰｸ K

 1
90564-59025

CT215,ST215..MTM

厚さ=2.50,ﾏｰｸ Q

 1
90564-59022

CT215,ST215..MTM

厚さ=2.35,ﾏｰｸ M

 1
90564-59021

CT215,ST215..MTM

厚さ=2.30,ﾏｰｸ L

 1
90564-59024

CT215,ST215..MTM

厚さ=2.45,ﾏｰｸ P

 1
90564-59010

CT215,ST215..MTM

厚さ=1.75,ﾏｰｸ 9

 1
33321N - BEARING (FOR OUTPUT SHAFT FRONT)
90366-32016

CT215,ST215..MTM

 1
33331 - GEAR, REVERSE
33331-12041

CT215,ST215..MTM

 1
33332 - GEAR, 2ND
33332-12072

CT215,ST215..MTM

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-44001

CT215,ST215..MTM

 1
33332C - SPACER (FOR 2ND GEAR BEARING)
90560-44001

CT215,ST215..MTM

 1
33333 - GEAR, 3RD
33034-12071

CT215,ST215..MTM

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-36011

CT215,ST215..MTM

 1
33334 - GEAR, 4TH
33035-13011

CT215

 1
33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR)
90364-36014

CT215,ST215..MTM

 1
33334B - SPACER (FOR 4TH GEAR BEARING)
90560-36002

CT215,ST215..MTM

 1
33335 - GEAR, 1ST
33335-13010

CT215

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-45007

CT215,ST215..MTM

 1
33336 - GEAR, 5TH
33336-12060

CT215

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
90364-28013

CT215,ST215..MTM

 1
33343D - BUSH, 2ND GEAR
33343-12020

CT215,ST215..MTM

 1
33343E - BALL (FOR 2ND GEAR BUSH)
90360-05012

CT210,211,215,ST215..MTM

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-12052

CT215,ST215..MTM

 1
33361-12051

CT215,ST215..MTM

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-12031

CT215,ST215..MTM

 1
33362-12030

CT215,ST215..MTM

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-34006

CT215,ST215..MTM

厚さ=2.45−2.50,ﾏｰｸ L

 1
90520-34008

CT215,ST215..MTM

厚さ=2.55−2.60,ﾏｰｸ N

 1
90520-34004

CT215,ST215..MTM

厚さ=2.35−2.40,ﾏｰｸ J

 1
90520-34009

CT215,ST215..MTM

厚さ=2.60−2.65,ﾏｰｸ P

 1
90520-34007

CT215,ST215..MTM

厚さ=2.50−2.55,ﾏｰｸ M

 1
90520-34003

CT215,ST215..MTM

厚さ=2.30−2.35,ﾏｰｸ H

 1
90520-34005

CT215,ST215..MTM

厚さ=2.40−2.45,ﾏｰｸ K

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-12021

CT215,ST215..MTM

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-12040

CT215,ST215..MTM

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-12030

CT215,ST215..MTM

 3
33367 - RING, SYNCHRONIZER, NO.1
33367-12040

CT215,ST215..MTM

 1
33368 - RING, SYNCHRONIZER, NO.2
33368-12041

CT215,ST215..MTM

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
90501-08112

CT215,ST215..MTM

 3
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
90501-08131

CT215,ST215..MTM

 3
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33392-12020

CT215,ST215..MTM

NO.2

 1
33392-12010

CT215,ST215..MTM

NO.1

 1
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33392-12020

CT215,ST215..MTM

NO.2

 1
33392-12010

CT215,ST215..MTM

NO.1

 1
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-12021

CT215,ST215..MTM

 1
33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
90520-27061

CT215,ST215..MTM

厚さ=1.75−1.80,ﾏｰｸ A

 1
90520-27062

CT215,ST215..MTM

厚さ=1.80−1.85,ﾏｰｸ B

 1
90520-27068

CT215,ST215..MTM

厚さ=2.10−2.15,ﾏｰｸ H

 1
90520-27064

CT215,ST215..MTM

厚さ=1.90−1.95,ﾏｰｸ D

 1
90520-27066

CT215,ST215..MTM

厚さ=2.00−2.05,ﾏｰｸ F

 1
90520-27063

CT215,ST215..MTM

厚さ=1.85−1.90,ﾏｰｸ C

 1
90520-27069

CT215,ST215..MTM

厚さ=2.15−2.20,ﾏｰｸ J

 1
90520-27065

CT215,ST215..MTM

厚さ=1.95−2.00,ﾏｰｸ E

 1
90520-27067

CT215,ST215..MTM

厚さ=2.05−2.10,ﾏｰｸ G

 1
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-12020

CT215,ST215..MTM

 1
33396A - RING, SYNCHRONIZER PULL
33396-12011

CT215,ST215..MTM

 1
33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING)
90520-46035

CT210,211,215,ST215..MTM

 1
33397A - RING, SYNCHRONIZER, INNER NO.5
33397-12011

CT215,ST215..MTM

 1
33398A - RING, SYNCHRONIZER, MIDDLE NO.5
33398-12010

CT210,211,215,ST215..MTM

 1
33399D - RING, SYNCHRONIZER, OUTER NO.5
33399-12011

CT215,ST215..MTM

 1
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-12031

CT215,ST215..MTM

 1
33422B - GEAR, 4TH DRIVEN
33422-12040

CT215

 1
33423A - GEAR, 3RD DRIVEN
33423-12030

CT215,ST215..MTM

 1
33428C - GEAR, 5TH DRIVEN
33428-12030

CT215

 1
33431C - SPACER, OUTPUT GEAR
33431-20080

CT215,ST215..MTM

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-12032

CT215,ST215..MTM

 1
33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT)
90105-08150

CT215,ST215..MTM

 1
33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT)
90430-08010

AT21#,CT210,211,215,ST215..MTM

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-20050

CT215,ST215..MTM

 1
