CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)2CT..CT215 ; (9712- )3CTE..CT216

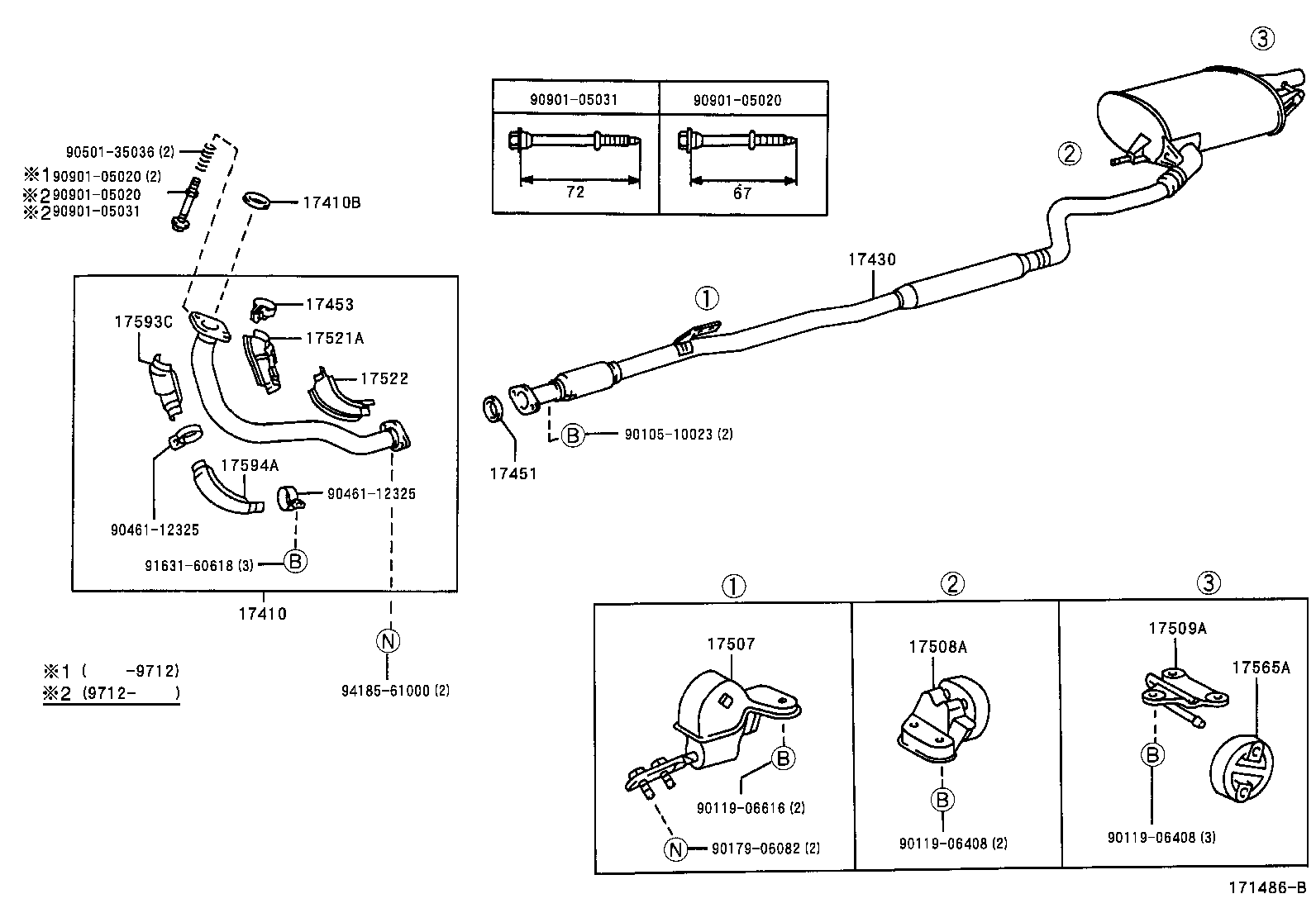

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17453 17507 17508A 17509A 17521A 17522 17565A 17593C 17594A 9010510023 9011906408 9011906408 9011906616 9017906082 9046112325 9046112325 9050135036 9090105020 9090105020 9090105020 9090105031 9090105031 9163160618 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64680

2CT,3CTE..CT215,216

 1
17410B - GASKET, EXHAUST PIPE
17451-64020

2CT..CT21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A090

2CT..CT215

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

2CT,3CTE..CT210,215,216

 1
17453 - CLAMP, EXHAUST PIPE, NO.2
17453-64010

2CT,3CTE,3SFE..CT215,216,ST210

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-64050

2CT,3CTE..CT215,216

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74070

2CT,3CTE,3SFE..CT215,216,ST215

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-16060

4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21#

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64140

2CT,3CTE..CT215,216

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-64090

2CT,3CTE..CT215,216

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

2CT,3CTE,3SFE..CT215,216,ST215

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64130

2CT,3CTE..CT215,216

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-64040

2CT,3CTE..CT215,216

 1
Common parts
90105-10023
90119-06408
90119-06616
90179-06082
90461-12325
90501-35036
90901-05020
90901-05031
91631-60618
94185-61000
