CT215-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)2CT..CT215

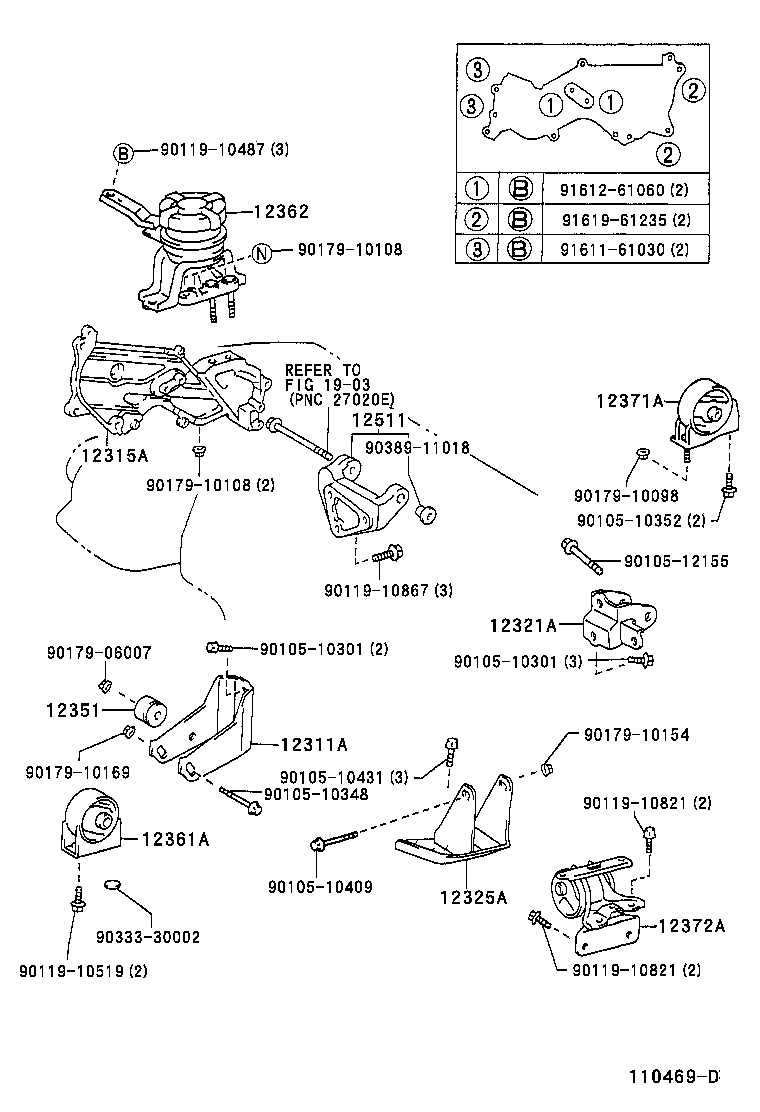

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 1903 9010510301 9010510301 9010510348 9010510352 9010510409 9010510431 9010512155 9011910487 9011910519 9011910821 9011910821 9011910867 9017906007 9017910098 9017910108 9017910108 9017910154 9017910169 9033330002 9038911018 9161161030 9161261060 9161961235
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-64210

2CT,3CTE..CT215,216

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-64090

2CT..CT215

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64290

2CT..CT215

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-64120

2CT..CT215

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74010

2CT,3CTE..CT215,216

品名ｺｰﾄﾞ 12311A

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74430

2CT..CT215

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-64150

2CT..CT215

 1
12305-64151

2CT..CT215

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74351

2CT,3CTE..CT215,216

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-64210

2CT..CT21#..MTM

 1
12372-64260

2CT,3CTE..CT210,211,215..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-64060

2CT,3CTE..CT21#

 1
Common parts
90105-10301
90105-10348
90105-10352
90105-10409
90105-10431
90105-12155
90119-10487
90119-10519
90119-10821
90119-10867
90179-06007
90179-10098
90179-10108
90179-10154
90179-10169
90333-30002
90389-11018
91611-61030
91612-61060
91619-61235
Linked diagrams
1903
