CT210-AEMMX (1996)
Toyota Corona
Production
Jan 1996
-
Dec 1997
Engine
2CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )

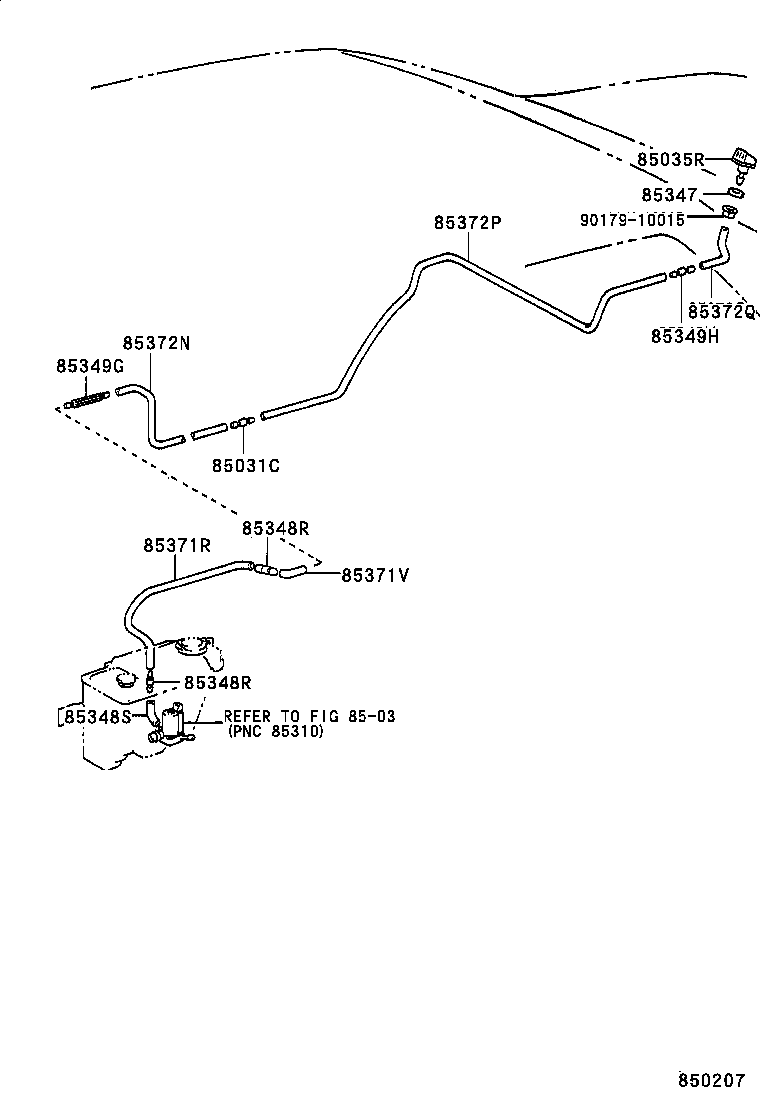

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-90A00 |
AT21#,CT21#,ST21# |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 85347 - PACKING, REAR WASHER | ||||
| 85347-12010 |
AT21#,CT21#,ST21# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT21#,CT21#,ST21# |
2 | ||
| 85349-89122 |
AT21#,CT21#,ST21# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT21#,CT21#,ST21# |
2 | ||
| 85349-89122 |
AT21#,CT21#,ST21# |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AT21#,CT21#,ST21# |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-32150 |
AT21#,CT21#,ST21# |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
AT21#,CT21#,ST21# |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
AT21#,CT21#,ST21# *H,L=650 |
1 | ||
| 90446-07001 |
AT21#,CT21#,ST21# *H,L=720 |
1 | ||
| 90099-33299 |
AT21#,CT21#,ST21# *H,L=750 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33080 |
AT21#,CT21#,ST21# *H,L=30 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-59185 |
AT21#,CT21#,ST21# *H,L=1920 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59171 |
AT21#,CT21#,ST21# 長さ=2220 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-59115 |
AT21#,CT21#,ST21# 長さ=100 |
1 | ||
| 90099-33080 |
AT21#,CT21#,ST21# *H,L=100 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| Linked diagrams | ||||
| 8503 | ||||
